Professional RF Demo Kit NanoVNA RF Tester Board Filter Attenuator for NanoVNA-F Vector Network Analyzer

Features:

Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life.

Compact and lightweight, easy to operate and use.

This is a vector network analyzer learner tool.

Can be used with NanoVNA-F to measure 6.5M ceramic notch filter.

Can be used with NanoVNA-F to measure homemade low-pass-filter, 3dB bandwidth about 400MHz.

Specification:

Material: PCB

Color: green

RLC series and parallel circuit 1

RLC series and parallel circuit 2

33 ohm resistance, SWR=1.5

75 ohm resistance, SWR=1.5

BSF ceramic notch filter, center frequency 6.5MHz

BPF ceramic filter, centre frequency 10.7MHz

RC series circuit

LC series circuit

Capacitor

Inductance

Homemade low-pass filter, 3dB bandwidth 400MHz

Homemade high-pass filter, 3dB bandwidth 500MHz

Short-circuit calibration circuit

Open-circuit calibration circuit

50 ohm load calibration circuit

Straight-through

10dB attenuation circuit

3dB attenuation circuit

Each set of functional circuits

Item size: 100 x 100mm / 3.9 x 3.9in

Item weight: 38g / 1.3ounce

Package size: 159 x 152 x 52mm / 6.3 x 6.0 x 2.0in

Package weight: 106g / 3.7ounce

Package included:

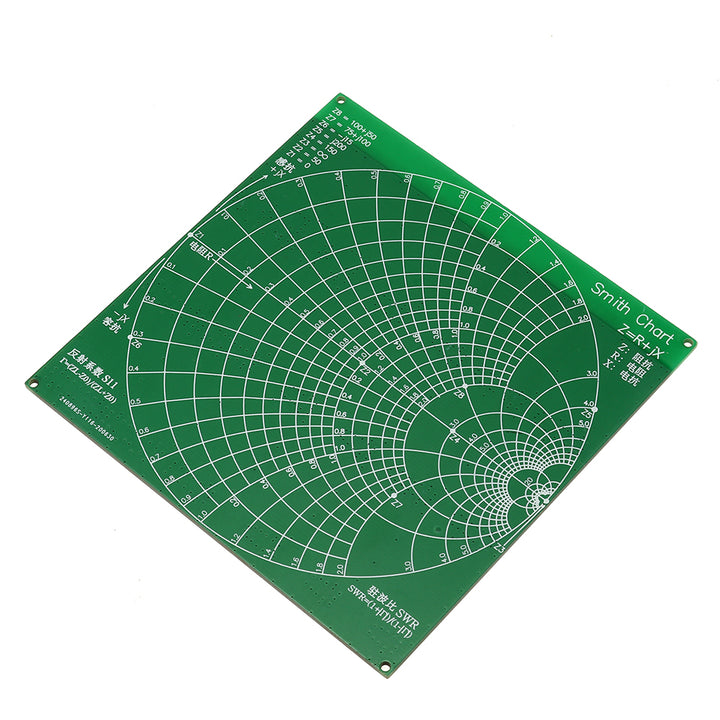

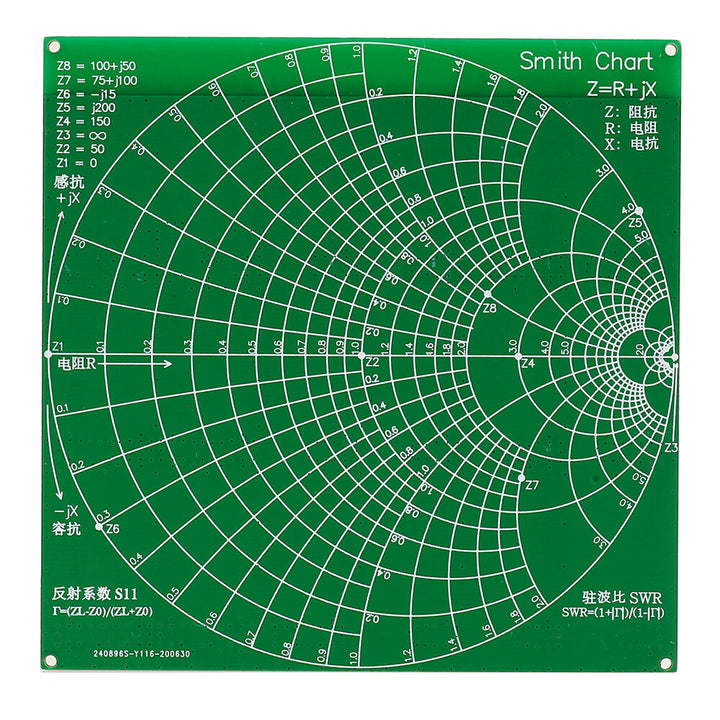

1 x PCB RF Tester Board

2 x 200mm Adapter Cable
