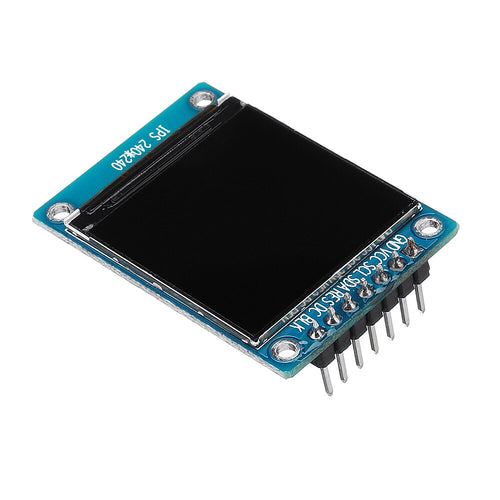

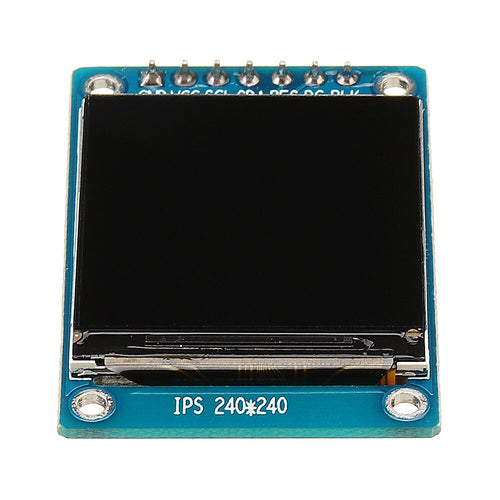

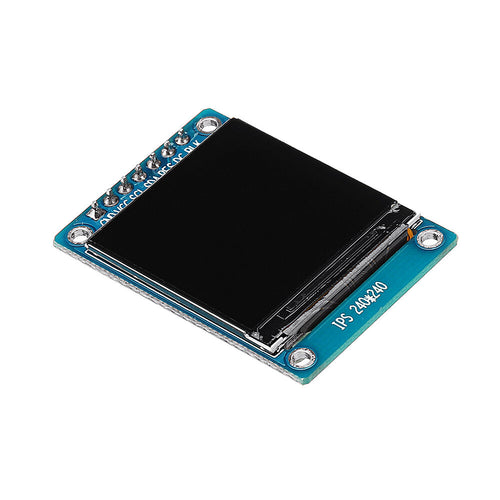

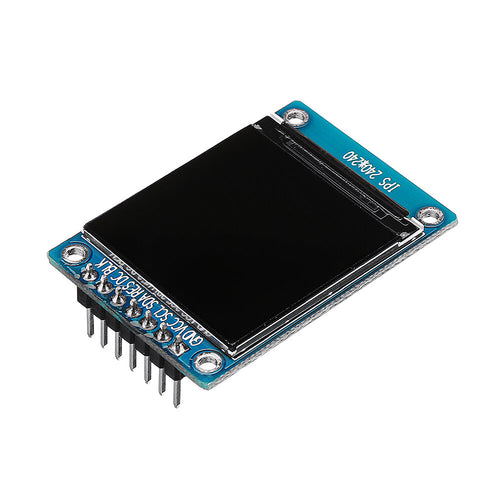

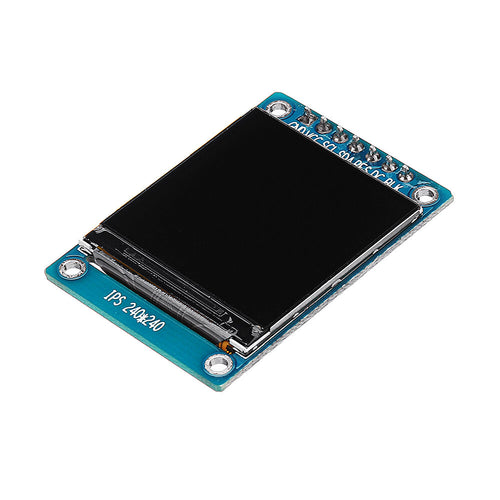

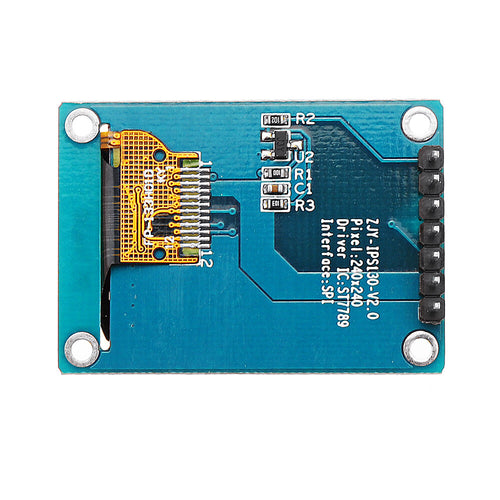

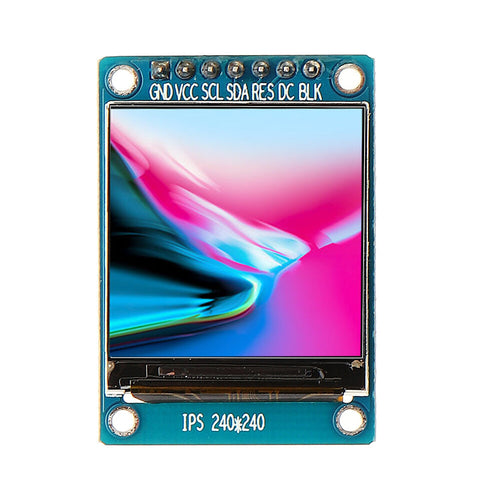

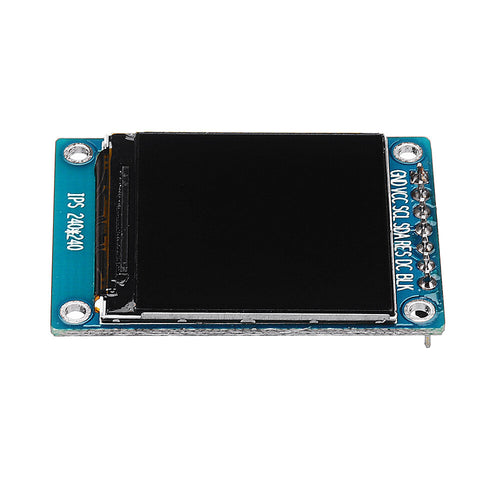

1.3 Inch IPS TFT LCD Display 240*240 Color HD LCD Screen 3.3V ST7789 Driver Module
$7.99
- Hassle-Free Warranty
- 30-Day Money-Back Guarantee
- Fast, Free Shipping
- Lifetime Customer Support
Description
| Display Size | 1.3 inch |
| Material | HD IPS color screen,?the color is more vivid than ordinary TFT LCD |
| Resolution | 240*240 display, the ?direction can be adjusted, horizontal and vertical |
| Control chip | ST7789 |
| Display area | 23.4x23.4mm |
| Physical size | 27.78x39.22mm |
| Interface type | 4-wire SPI interface |
| Number of pins | 7PIN |
| Viewing direction |
Full view
|
| Working temperature | -20¡ãC~70¡ãC |

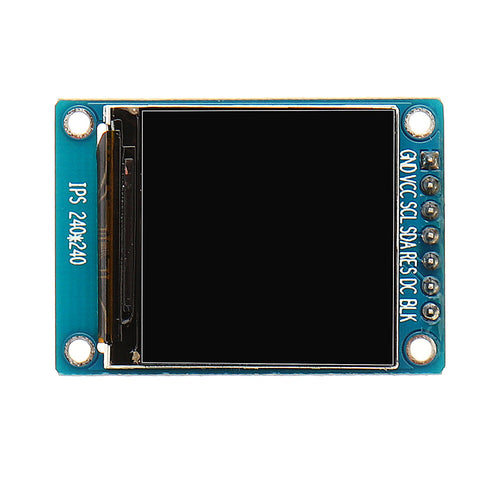

Interface definition:
| GND | Power ground | |
| VCC | Power 3.3+ | |
| SCL | SPI clock line | |
| SDA | SPI data line | |
| RES | Reset | |
| DC | Data/command selection foot | |
| BLK | Backlight control, the default can be left floating, low level to turn off the backlight. |
More informations andRoutine: Click here to open
1 x TFT display module
1 x TFT display module
