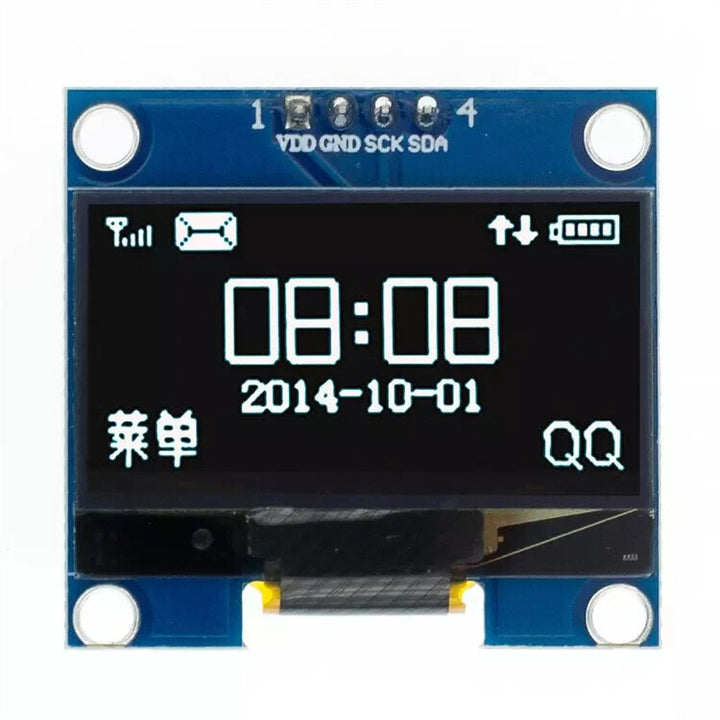

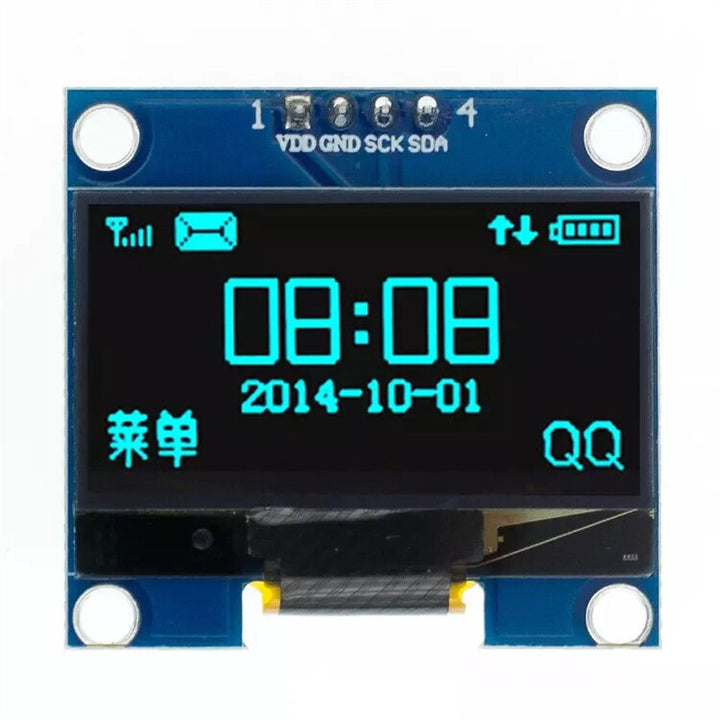

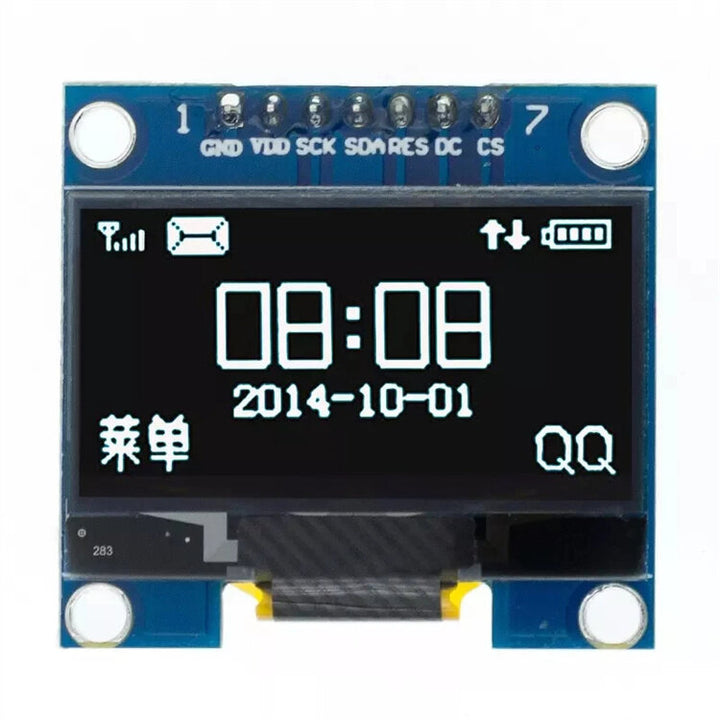

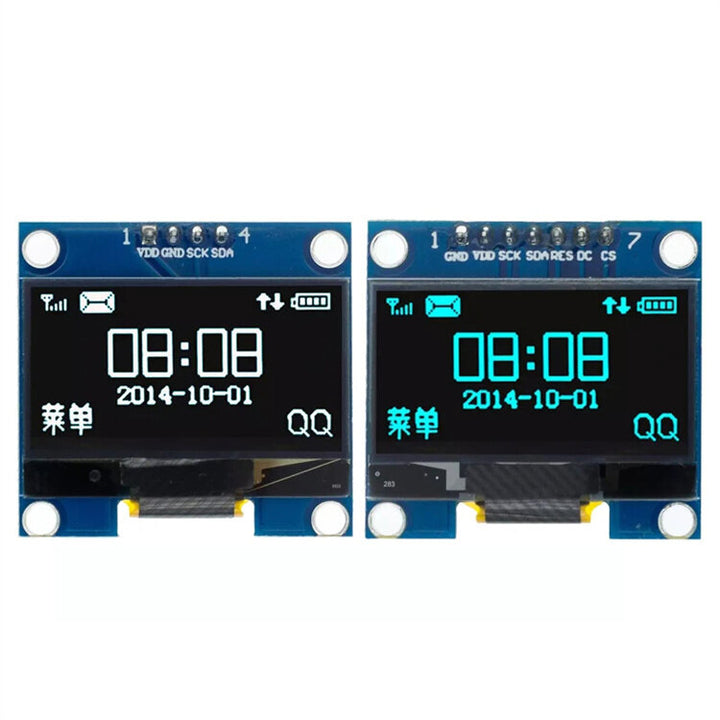

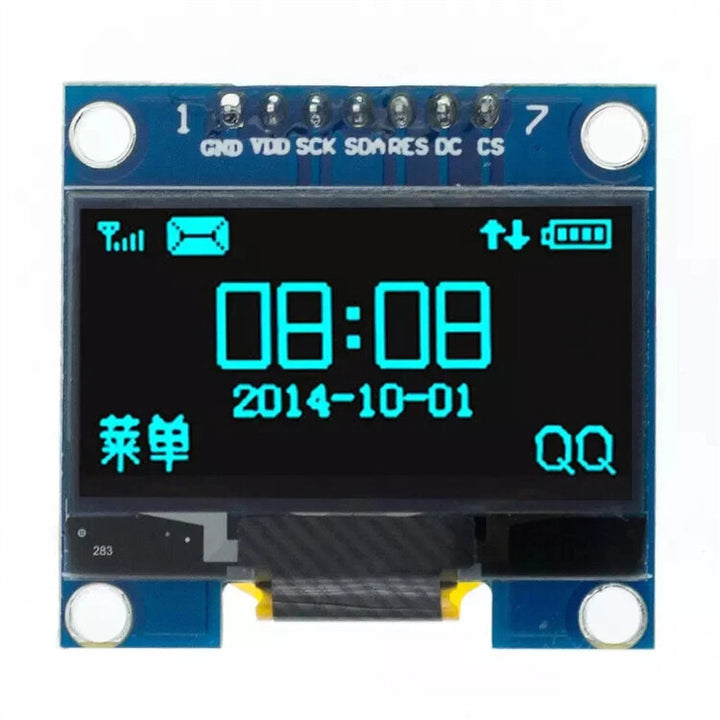

1.3 Inch OLED Display Module White/Blue 128X64 SPI/IIC I2C Communicate Color 4Pin/7Pin Screen Board

Specifications:

1. Resolution: 128X64

2. Super wide viewing angle: More than 160 ° (maximum viewing angle display a screen)

3. Ultra-low power consumption: Normal display 0.08W (far below the TFT display)

4. Wide supply range: DC 3V-5V (without any changes, directly compatible with common 3.3V and 5V power supply system)

5. Industrial grade: Operating temperature range -30 degree~ 70 degree

6. The ultra-small size: (length) 35.4MM * (W) 33.5MM * (thickness) 4.3MM

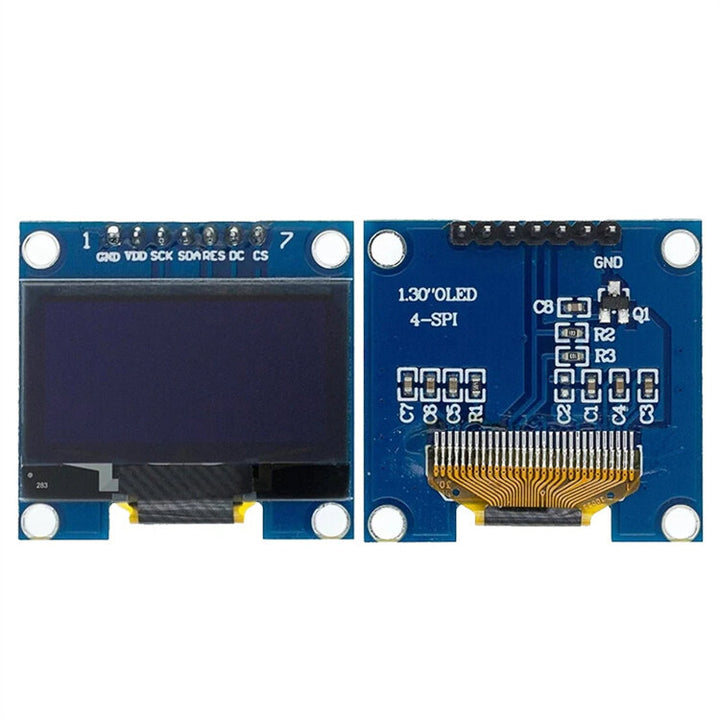

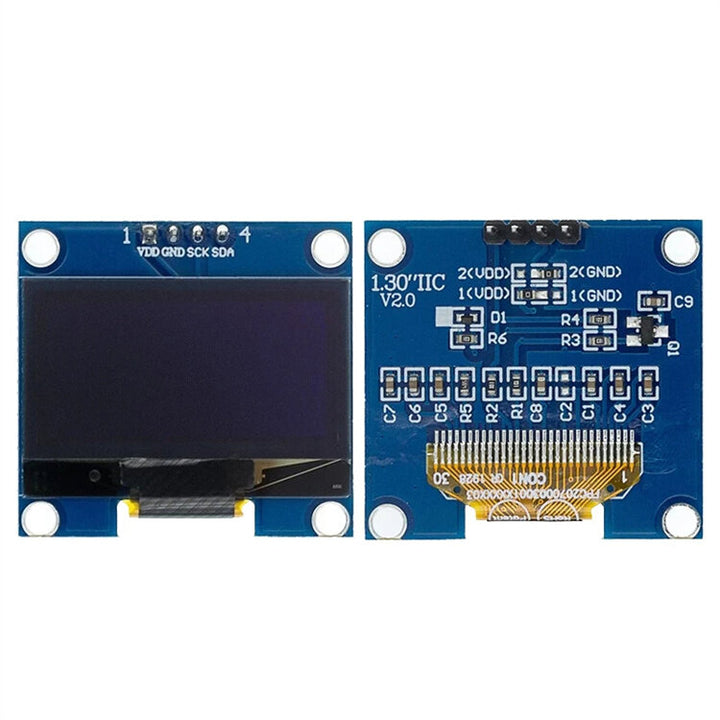

7. Support for multiple operating modes: 3-wire SPI, 4 wire SPI, IIC

8. With chip select CS signal, you can achieve multiple SPI or IIC device on the same bus work

9. Compatible with 3.3V and 5V control chip I / O level (without any set, directly compatible)

10. OLED screen, internal drive chip: SH1106 (Operation and SSD1306 same)

Package Include:

1x Module Board
