1.54 inch OLED Display LCD Screen Module Resolution 128*64 SPI/IIC Interface SSD1309 Driver
- Hassle-Free Warranty
- 30-Day Money-Back Guarantee
- Fast, Free Shipping
- Lifetime Customer Support
Feature:
Driver chip: SSD1309 driver
Support interface: 7-pin SPI/4-pin IIC
Resolution 128X64
Display size: 1.54 inches

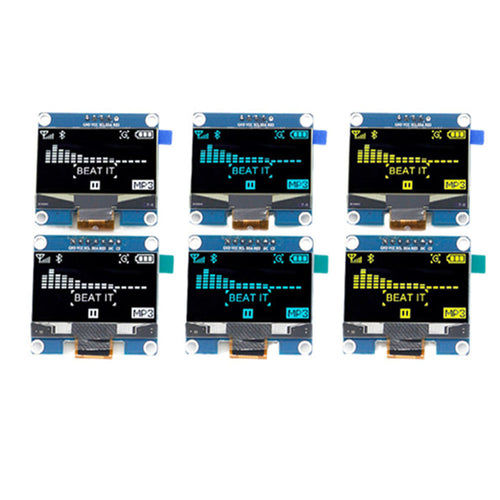

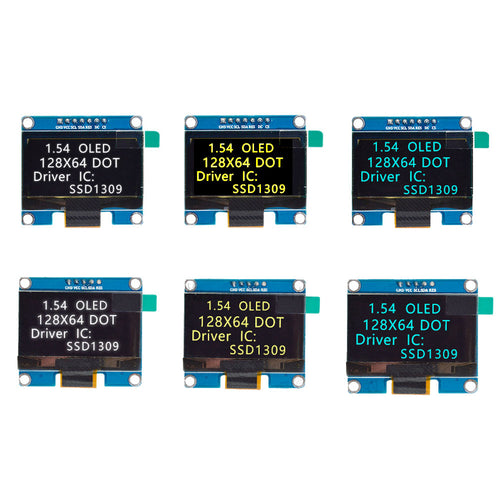

Display Color: White/Blue/Yellow

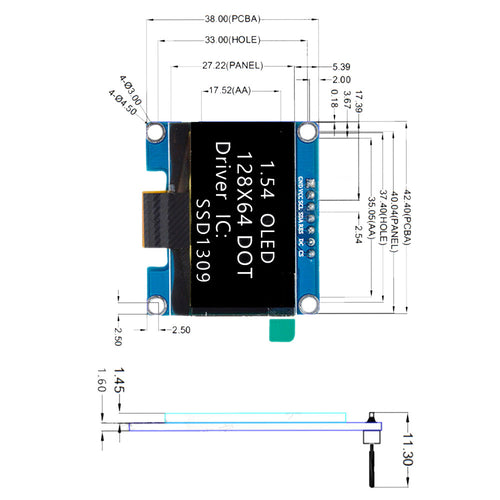

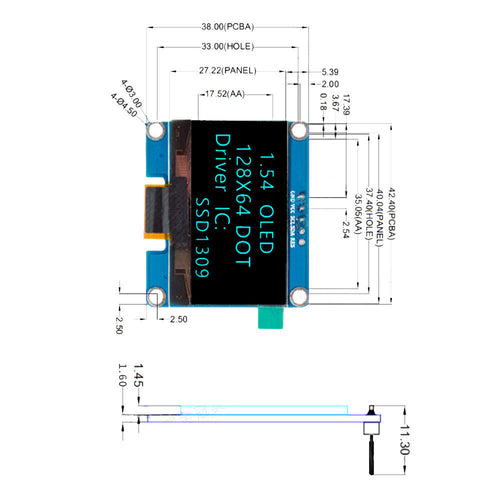

Module size: 42.4x38 (mm)
Display area: 35.052X17.516 (mm)
Pixel pitch: 0.274X0.274 (mm)
Pixel size: 0.254X0.254 (mm)
Number of pins: 5PINQ.54 pitch single row pin headers, of which the 5th pin RES pin is not used by default) This is 4 pins
Perspective: full perspective
Working temperature: -40℃~70℃
Working voltage: 3.3-5.5V (do not use other power sources)

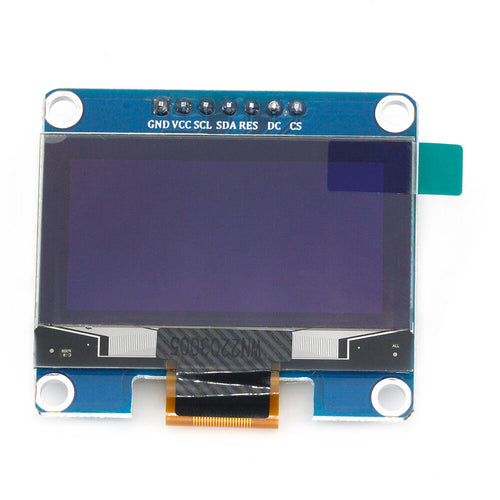

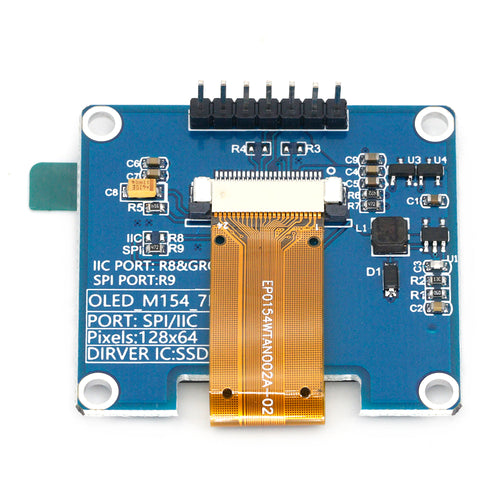

7-pin interface definition:
Num.
Description
1
GND
Power ground
2
VCC
Power supply is 3.3V~ 5V (do not use other power supply)
3
SCL
SPI clock line
4
SDA
Wire
5
RES
Reset pin
6
DC
Data/Command Select Pin
7
CS
Chip select signal, active low. (The CS pin cannot be left floating. If you do not need to use chip select, you can directly connect CS to the power ground. If it is floating, the OLED will not work stably.)

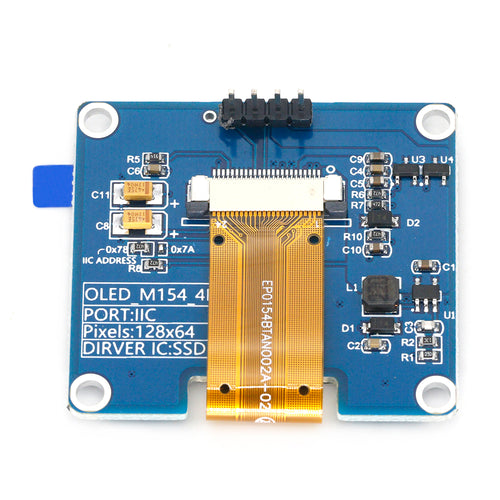

4-pin interface definition:
Num.
Description
1
GND
Power ground
2
VCC
Power supply is 3.3V~ 5V (do not use other power supply)
3
SCL
SPI clock line
4
SDA
SPI data line
5
RES
Reset pin
Package includes:
1 x Screen
