1.69 Inch LCD IPS Screen 240×280 SPI Interface 262K Colors ST7789V2 Display Module forArduino ESP32 Raspberry Pi 4B 3B+ Zero

Features:

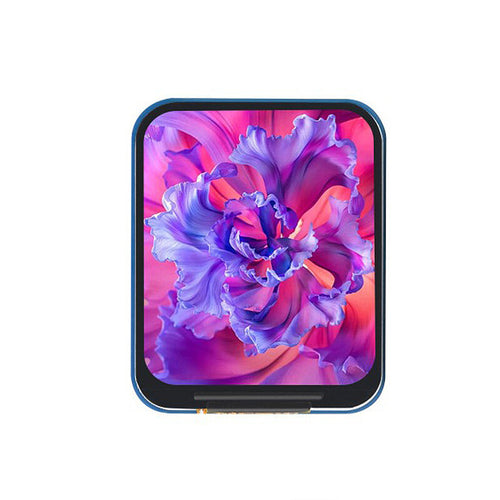

1. High-resolution 240 x 280mm display showcasing 262K vibrant colors, makes for stunning visual representation of your images.

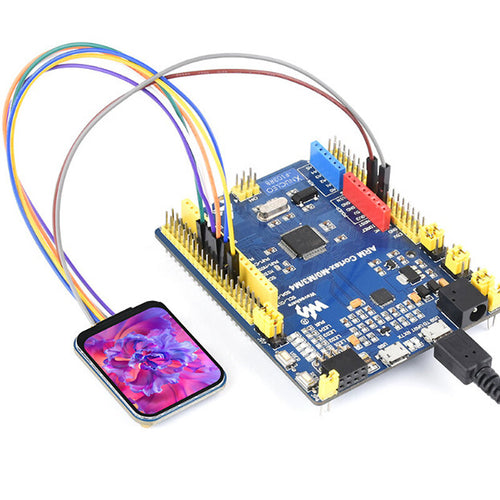

2. Equipped with a 4-wire SPI communications interface, which ensures minimal pin resources are used, can be paired with Raspberry Pi / ArduinoSTM32 control boards.

3. Features an IPS screen, ensuring excellent viewing angles and color representation.

4. Utilizes the robust and efficient ST7789V2 controller chip for smooth and reliable operations.

5. Adaptable to 3.3V and 5V voltage, offering flexibility for various applications.

Specifications:

Voltage range: 3.3V/5V

Interface: 4-wire SPI

Screen type: IPS

Controller chip: ST7789V2

Resolution: 240 x 280 pixels

Visible area: 27.97 x 32.63mm

Pixel size: 0.11655 x 0.11655mm

Module size: 31.50 x 39.00mm

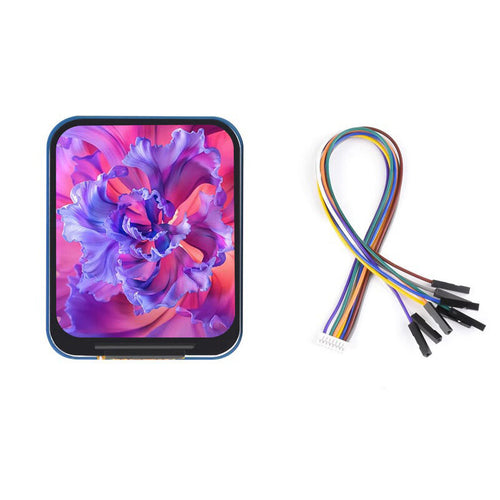

Package Include:

1x 1.69 Inch LCD Module

1x GH1.25 8PIN Connector Cable 20cm

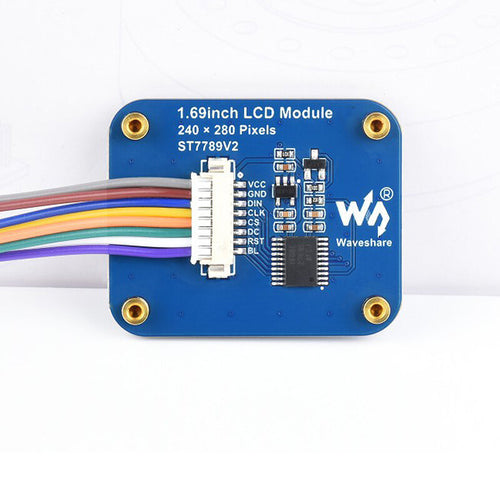

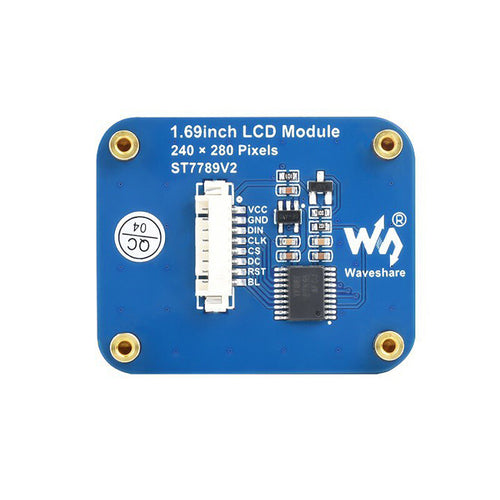

Control Interface:

VCC: Positive power supply (3.3V 1 5V power supply input)

GND: Power ground

DIN: SPI data input

CLK: SPI clock signal input

CS: Chip selection, active low.

DC: Data/command, low level means command, and high level means data.

RST: Reset, active low.

BL: Backlight
