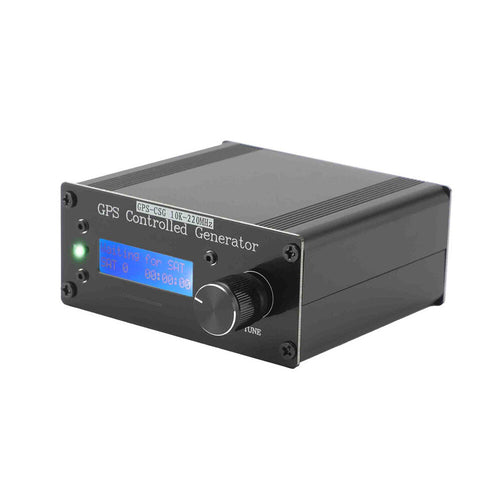

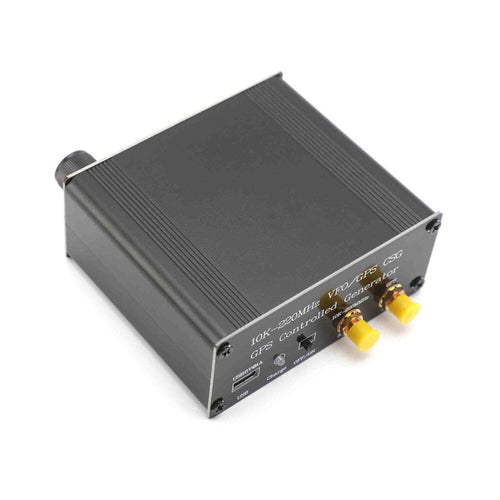

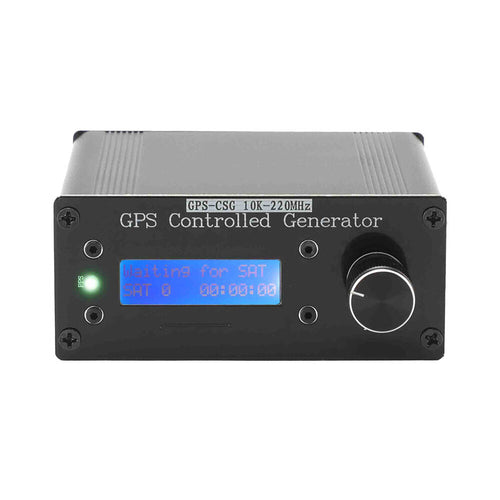

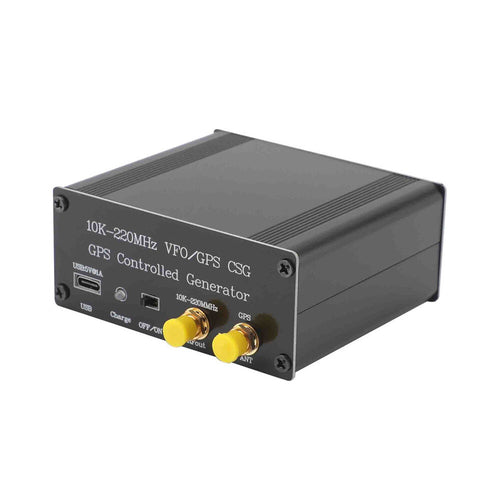

10K-220MHz VFO GPS Controlled Generator Taming Reference Signal Source Black Tool Accessories

Features:

1. GPS disciplined oscillator with a 10KHz-220MHz frequency standard supports Beidou and GPS satellites for precise frequency calibration and generation.

2. Dual-channel adjustable frequency allows separate adjustment of frequencies for each channel, with the ability to save 5 frequencies per channel.

3. Available in green backlight and white backlight LCD screens (randomly shipped) for easy visibility and control.

4. Features a power supply voltage of DC8-13V with low power consumption (<150mA) for efficient operation.

5. Includes main unit, power supply, and GPS antenna (3m9.8ft feeder) for convenient setup and usage.

Specifications:

Part Name: Controlled Generator

Material: Aluminum

Size: 13.5*13*5cm

Color: Black

Power supply voltage: DC8-13V

Power consumption: <150mA

Adjustable frequency: 10KHz-220MHz

Frequency accuracy: ±0.2Hz

Output level: 12dBm±2dB (can be adjusted to any value from -10dBm to 10dBm; amplitude can be calibrated)

Frequency synthesizer crystal oscillator: TCXO

Phase noise: -132dBc at 10KHz

Output type: square waving

Harmonic rejection: even harmonics are better than -50dBc and odd harmonics are better than -10dBc

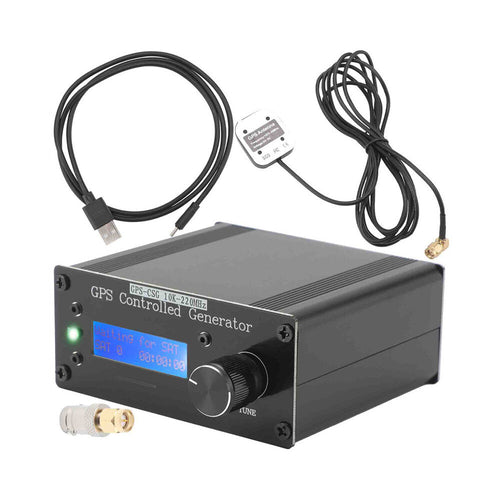

Package Include:

1x Main Unit

1x Power Supply

1x GPS Antenna (3m/9.8ft feeder)
