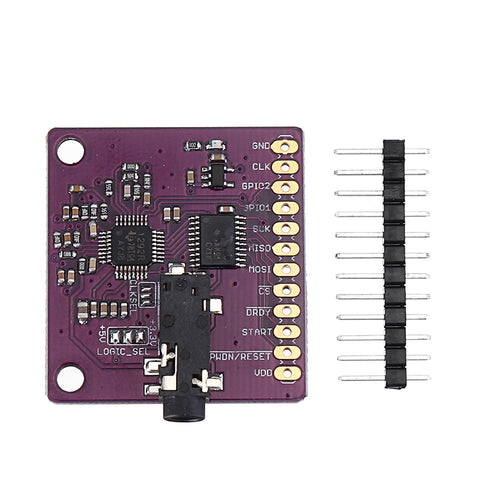

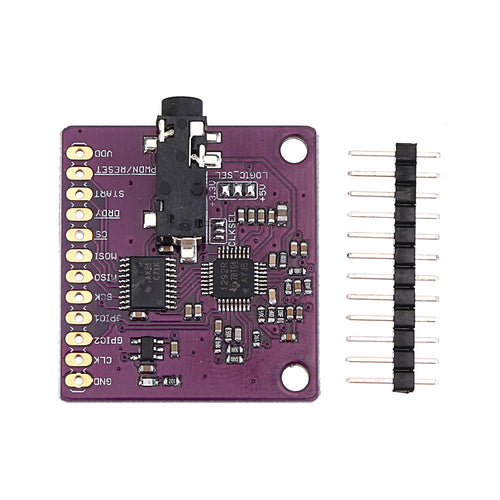

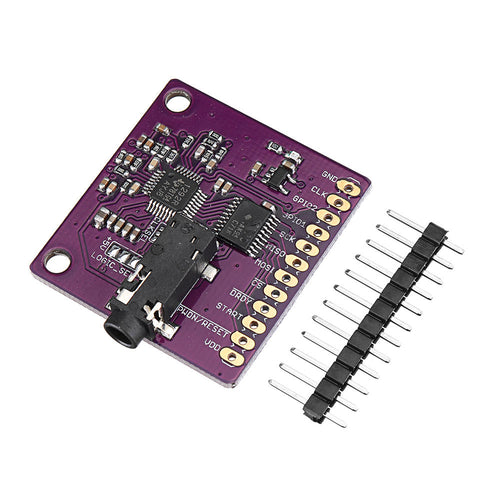

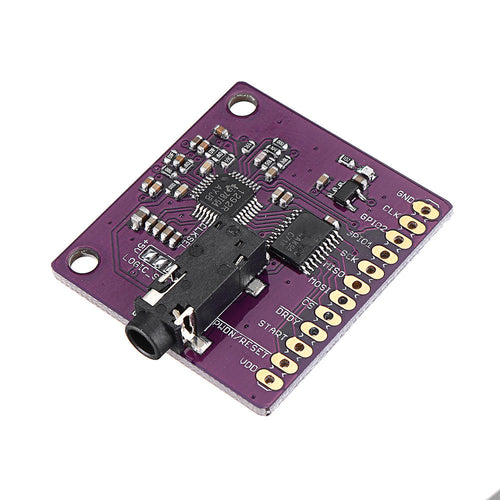

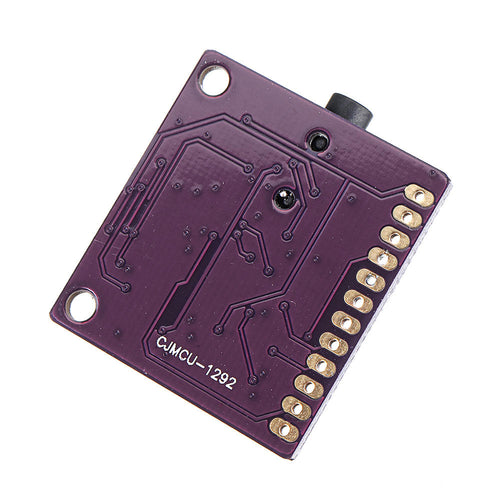

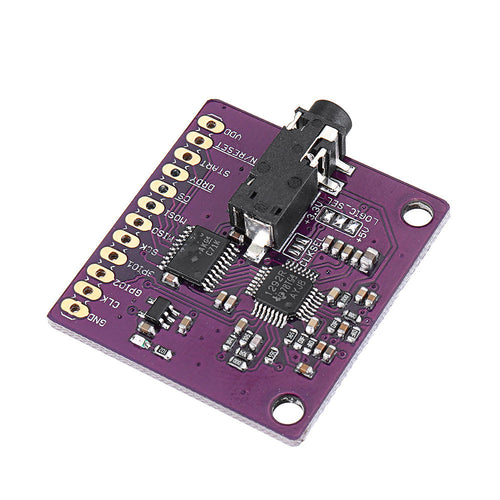

-1292 ADS1292R ECG Respiratory Impedance ECG 2 Channel 24-bit A/D Converter
$49.99
- Hassle-Free Warranty
- 30-Day Money-Back Guarantee
- Fast, Free Shipping
- Lifetime Customer Support
Description
ADS1292R Analog Front End IC
Onboard 3.3V voltage regulator for low noise
Onboard logic level transalators for interface
Prototyping area for adding addtional components
If you have bought the breakout the connection with the board is as follows:
Connecting the shield to your :
Connect the ECG/Respiration shield to the by stacking it on top of your . This shield uses the SPI interface to communicate with the . Since this includes the ICSP header, which is used on newer s for SPI communication, this shield is also compatible with newer boards such as the Yun and Due.
Wiring the Breakout to your :
If you have bought the breakout the connection with the board is as follows:
| ads1292r pin label | Connection | Pin Function |
| VDD | +5V | Supply voltage |
| PWDN/RESET | D4 | Reset |
| START | D5 | Start Input |
| DRDY | D6 | Data Ready Outpt |
| CS | D7 | Chip Select |
| MOSI | D11 | Slave In |
| MISO | D12 | Slave Out |
| SCK | D13 | Serial Clock |
| GND | Gnd | Gnd |
Overview:
Easily monitor ECG and respiration using your with this plug-in shield. The version 2 of this product adds a new SPI pin header making it compatible with newer devices including the Yun and 3.5mm connector for the electrodes.
Easily monitor ECG and respiration using your with this plug-in shield. The version 2 of this product adds a new SPI pin header making it compatible with newer devices including the Yun and 3.5mm connector for the electrodes.
We now include the electrodes and cable also with the shield Just plug it into an and you're ready to go. The 3.5 mm circular connector provides an easy way to connect electodes to the shield. The other end of this cable has snaps for standard ECG electrodes. We also include a pakc of 10 disposable EG electrodes. It accepts two ECG electrodes and one Driven Right Leg (DRL) electrode for common mode noise reduction.
Another interesting feature of this shield is that you can also measure the respiratory activity using the same two electrodes connected to the shield. The ADS1292R uses a method known as impedance pneumography to measure respiration using the changes in chest impedance caused during respiration.
1 x ADS1292R shield
