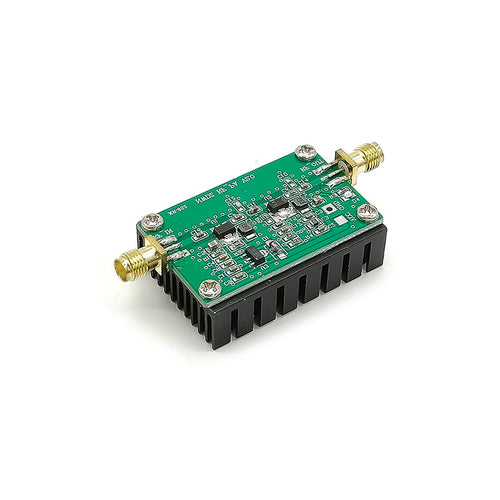

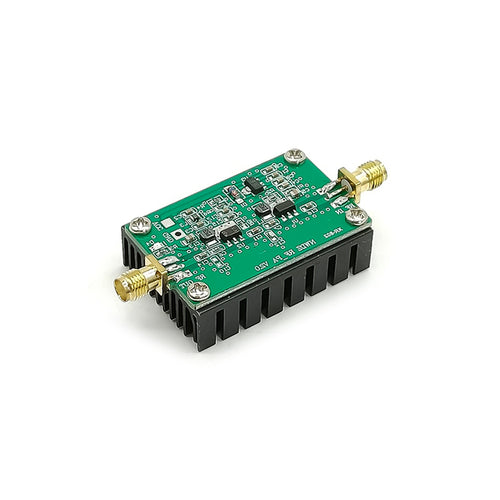

1MHz-700MHZ 30DB RF Power Amplifier 3W HF VHF UHF FM Transmitter Broadband For Ham Radio
$35.99
- Hassle-Free Warranty
- 30-Day Money-Back Guarantee
- Fast, Free Shipping
- Lifetime Customer Support
Description
Application:
This Broadband RF power amplifier, suitable for all kinds of radio, FM radio remote control toy, radio and so on, the input of 1 MW (0DBM) maximum output of 3 watts, 15V voltage power supply, broadband 1MHz-700MHZ can work. Because of the excellent design, in low frequency can reach 30DBM (3W)

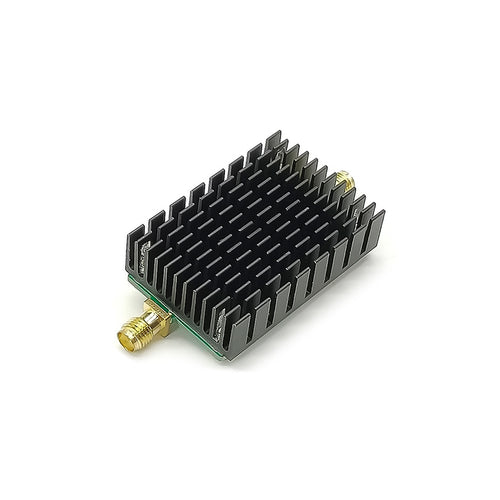

Power amplifier size 37MMx56CMx1.5CM (behind with a large heat sink)
Color: green
Material: metal
Technical indicators:
1. Supply voltage: + 15V DC (typical current value 450mA / maximum gain output)
2. The working frequency: 1MHZ-1000MHZ, input and output impedance: 50 ohms;
3. The maximum output range: 30dbm (3W / 50 ohms)
4. Gain: 30 dB (see the specific curve S21 curve, there are differences between different frequency)
5. The input signal size: low frequency band (0DBM / 1 mW), high frequency band (2DBM)
1 x 1MHz-700MHZ 3W HF VHF UHF FM transmitter RF Power Amplifier
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Package includes:
1 x RF amplifier
