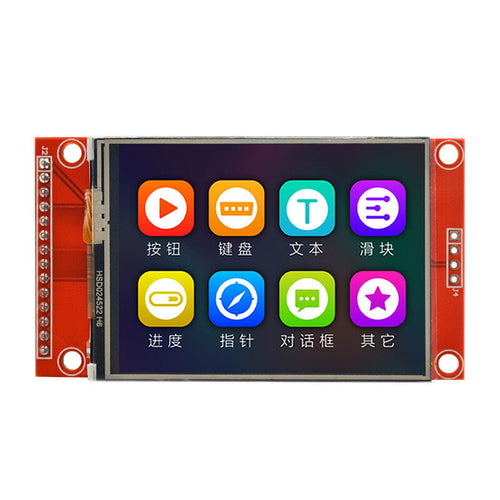

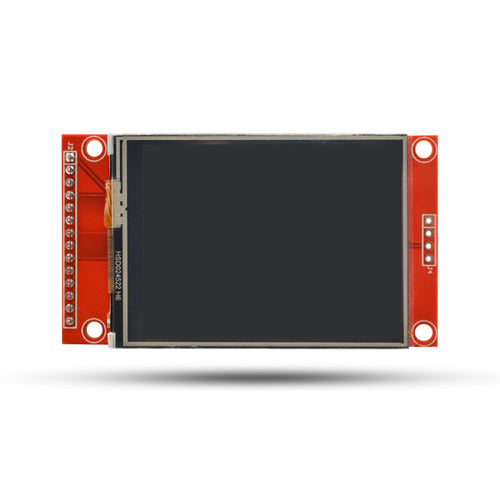

2.4inch 240*320 ILI9341V Smart Display Screen 2.4'' SPI Serial TFT LCD Module With/Without Touch Display Screen

Features:

High-resolution Display: The display screen boasts a sharp and clear resolution of 240x320 pixels, ensuring crisp visuals for your projects or applications.

Easy Interface: The module uses a 4-line SPI serial interface, making it simple to connect and integrate with your devices or microcontrollers.

Touch Functionality: With a built-in touch feature, this smart display allows users to interact with your application through touch input, providing an intuitive user experience.

Wide Operating Temperature Range: The module operates effectively in a broad temperature range, from -20°C to +70°C, making it suitable for various environments and applications.

Compact and Lightweight: With its compact outer dimensions and a weight of 40g, this display module is highly portable and convenient for different projects and products.

Specification:

Product Name: 2.4inch 240*320 ILI9341V Smart Display Screen

Glass Panel: CTC 2.4 inches

Resolution: RGB 240x320

Driver Chip: ILI9341V

Interface: 4-line SPI serial port

PIN Pitch: 0.8mm solder pad

Outer Dimensions: 77.18mm (L) x 42.72mm (W)

Display Size: 48.96mm (H) x 36.72mm (W)

Voltage: Operating voltage 10VCC=VCC=2.8V~3.3V

Backlight Parameters: Four lamp wells in continuous current: 80mA

Operating Temperature: -20°C to +70°C

Storage Temperature: -30°C to +80 °C

Viewing Angle: 12:00 o'clock lock

Touch Type: With Touch/Without Touch(optional)

Connection: Solder pad

Weight: 40g

Package Include:

1x Display Screen Module
