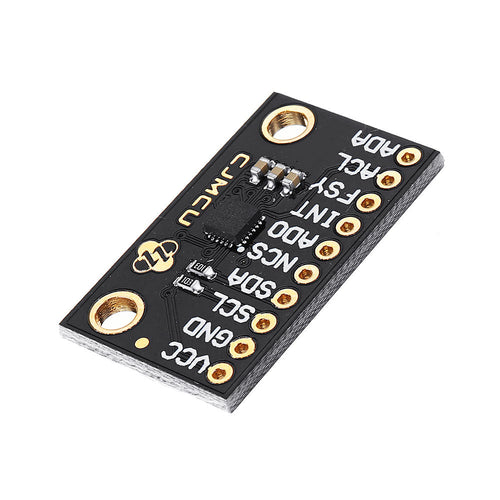

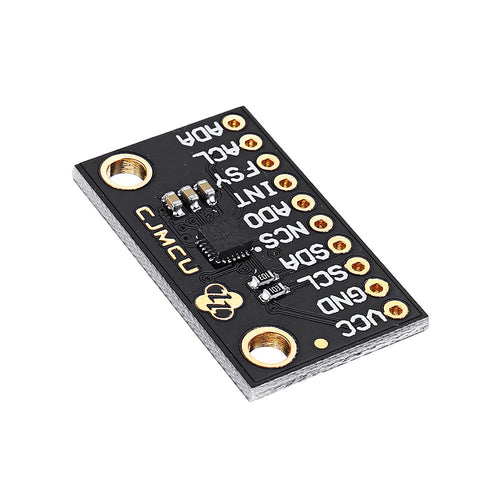

-20948 ICM-20948 Low Power 9-Axis MEMS Motion Tracking Device Sensor
- Hassle-Free Warranty
- 30-Day Money-Back Guarantee
- Fast, Free Shipping
- Lifetime Customer Support
Description
• Lowest Power 9 - Axis Device at 2.5 mW
• 3 - Axis Gyroscope with Programmable FSR of + 250 DPS, + 500 DPS, + 250 DPS, and + 2000 DPS
• 3 - Axis Accelerometer with Programmable FSR of ± 2 g, ± 4 g, ± 8 g, and ± 16 g
• 3 - Axis Compass with a wide range to + 4900 mu T
• Onboard Digital Motion Processor (DMP)
• Android support
• Auxiliary I2C interface for external sensors
• On-Chip 16 - bit ADCs and Programmable Filters
• 7 MHz SPI or 400 kHz Fast Mode I squared C
• Digital - the output temperature sensor
• VDD operating range of 1.71 V to 3.6 V
• MEMS structure hermetically sealed and bonded at a wafer level

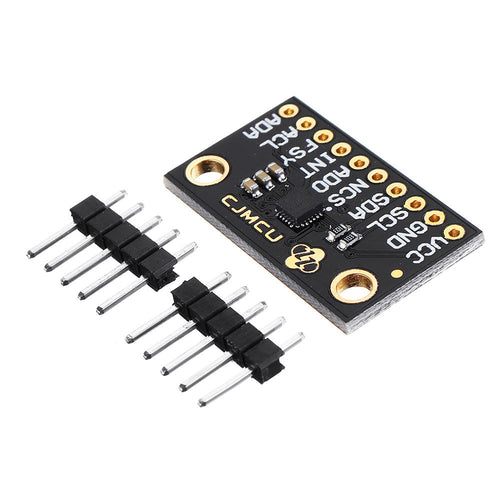

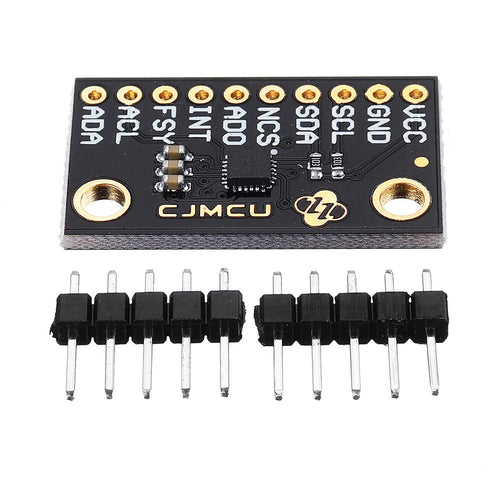

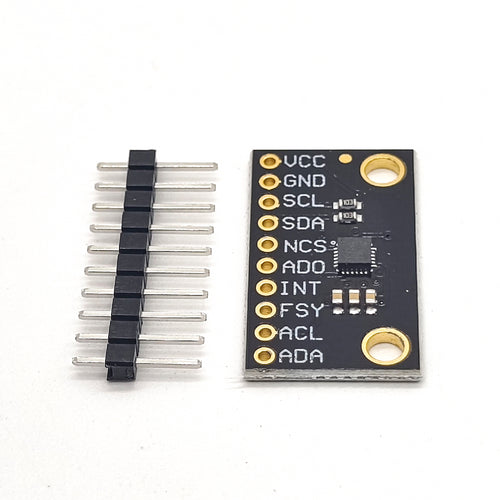

1 x CJMCU-20948
-20948 ICM-20948 Low Power 9-Axis MEMS Motion Tracking Device Sensor
$32.39
