250W DC 12V Discharge Battery Capacity Tester Module With DC Electronic Load Digital Battery Tester

$56.70

Hassle-Free Warranty
30-Day Money-Back Guarantee
Fast, Free Shipping
Lifetime Customer Support

SKU: EB0046907

Availability : In Stock Pre order Out of stock

Categories: Module Board

Description

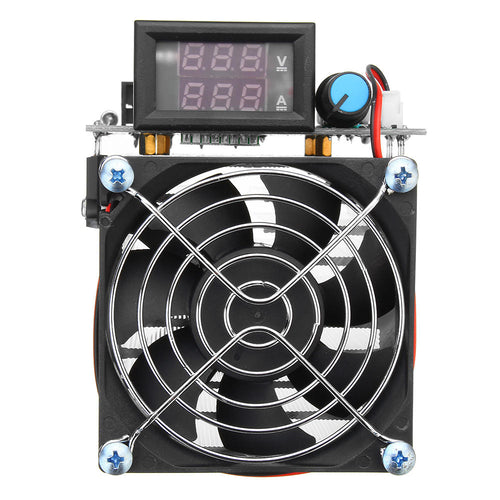

The high speed of the fan can change according to the heat sink temperature.

Protection of over-heating, overpower, over voltage, reserve polarity, and power supply voltage abnormity.

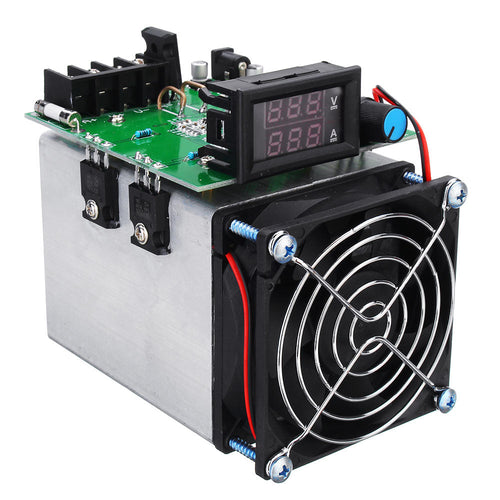

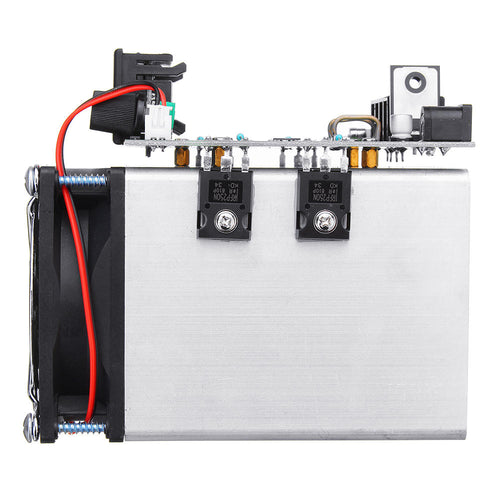

Equipped with industrial large tooth heat sink, dust-resistant, which can run for a long time.

Durable construction for long-lasting performance.

Professional test module for detecting discharge battery capacity.

Specification:

Power Supply: DC12V±5%

Fan Current: 0.72A

Constant Discharge Current Range: 0-10A(whole machine)

Working Mode: Single Mode Constant Current(CC)

Discharge Current Max. Error: 0.7%-0.01A

Max. Capacity Test Error: 0.5A 2.5%, 2A 1.5%, 5A and above 1.2%

Max. Power: 250W

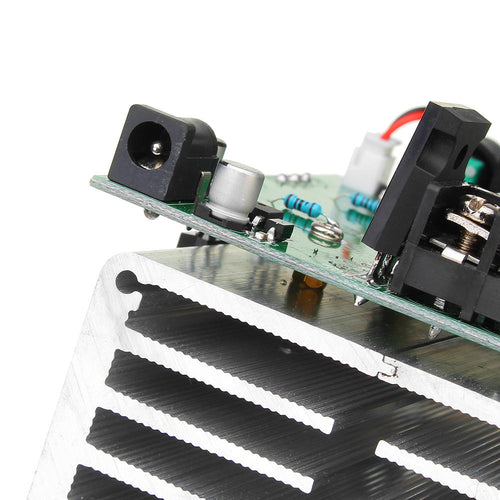

Input Interface: 5.5 x 2.5mm

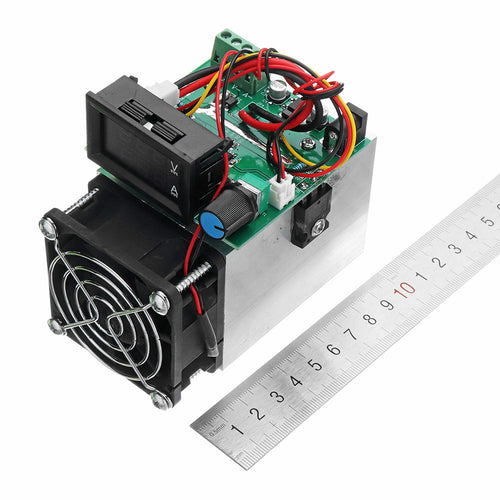

Size: Approx. 11 x 9.5 x 7cm / 4.3 x 3.7 x 2.7inch

Weight: 385g

Operation Instructions:

Connect with DC 12V power supply and enter electronic load mode, ensuring in a stopping state, connect the power supply under test to the test input port. Please pay attention to connect the right polarity!

Set constant current through knobs.

Note: Since it works openly, there is no voltage and power limitation, but normal work should be below 100V, 250W

Description:

This Electronic Load has the high speed fan, which can automatically change the speed. High quality heat sink can serve a long time performance. It supports multiple protections of overheat, overpower, over-voltage, reserve polarity, and power supply voltage abnormity.

1 x Battery Capacity Tester Module

Note:

If you are looking for a similar product of 100W, you can search for ID:1337352
