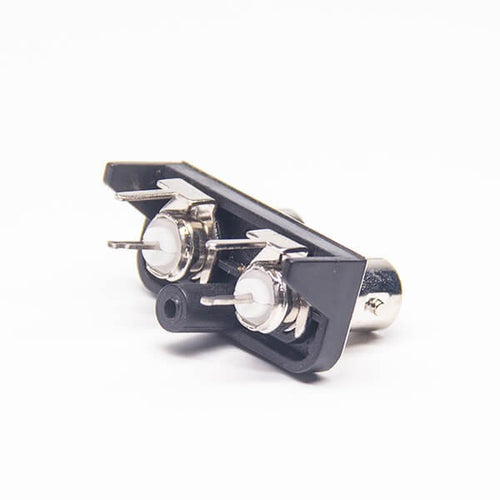

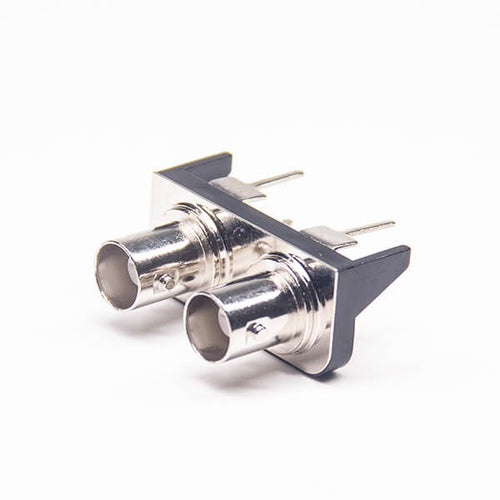

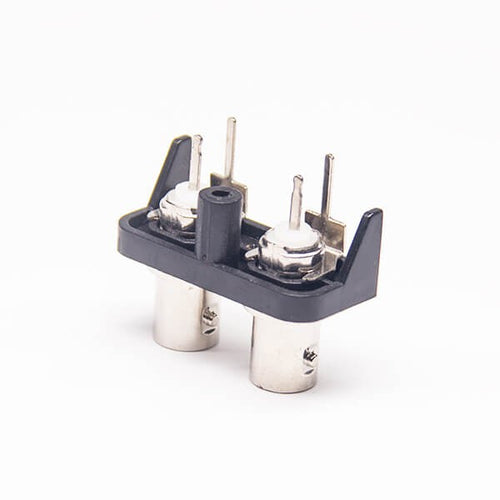

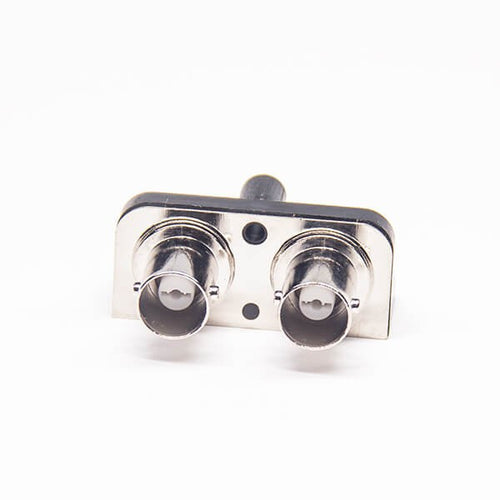

2pcs Dual BNC Connector Female Straight For PCB

Product features:

• BNC Female connector, straight, 50Ohm, pcb mount, solder,  zinc  alloy , nickel plating
• Compact Design for less installation space required;
• Easy quick connect and disconnect coupling;
• High Quality with 30 days 100% Money back;
• From the OEM Original Factory, same quality with much better price.

Applications:

• Consumer Electronic: Statellite Boxes, set top boxes
• Telecommunications: CATV, CATV Networks.

Electrical Characteristics

• Impedance:75 ohm
• Frequency Range: 0~3Ghz
• VSWR: Straight type <= 1.2max / R/A type <= 1.3max
• Withstanding Voltage: 500 V rms
• Working Voltage: 170 V rms
• Center Contact Resistance <= 10 m Ohm
• Outer Contact Resistance <= 5 m Ohm
• Insultation Resistance >= 1000 m Ohm
• RF Leakage -100dB min @1GHz

Mechanical Characteristics

• Coupling: 3/8-32 thread
• Cable Retention: 20 lbs min.
• Durability(mating) >= 500 cycles

Environmental Characteristics

• Temprature Range: -40degC ~ +60degC

Material:
