Description
1. Working voltage: DC12V
2. Quiescent current: ≤8mA single working current ≤40mA, two working current (self-locking) ≤80mA
3. Working temperature: -10°C to +60°C
4. Receive sensitivity: ≥-105dBm
5. Operating frequency: 315MHz
6. Output voltage: AC, DC optional
7. Output current: ≤10A
8. Size: 72 x 52 x 26mm

Output method:

A. Non-locking - the default working mode, the work switching jumps and does not insert;
B. Self-locking - connect the 1 and 2 positions with a shorting cap
C. Interlocking - connect 2 and 3 positions with a shorting cap

Learning/clearing methods and steps:

1. Press the learning button, the indicator light is off. Press any button in the remote control within 6 seconds, the indicator light flashes four times and then lights up continuously, indicating that the learning is successful;
2. Can learn more than 20 different address codes of the 2262 chip, 1527 chip and other wireless remote control of the same frequency;
3. Clear: Press and hold the learning button about 8 seconds, the indicator light from off to long light, indicating that all the stored information has been successfully cleared.

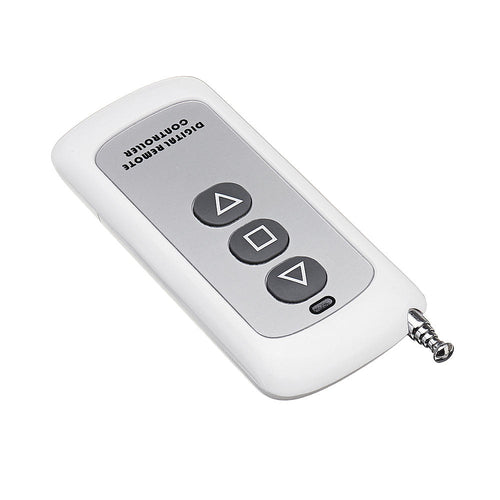

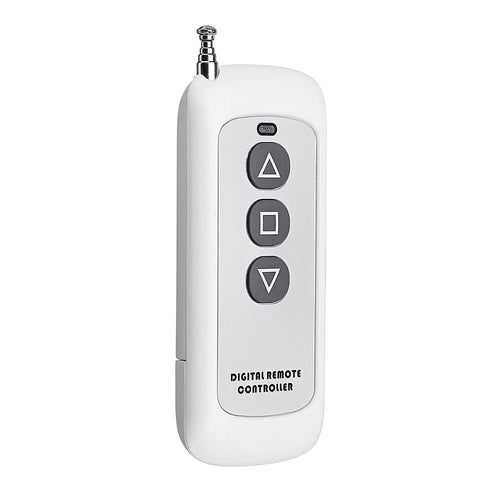

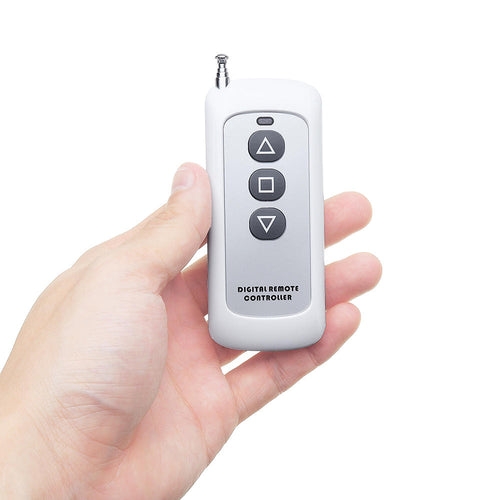

Remote control parameters:

Working voltage: 1pc L1028 12V 23A Alkaline battery
Working current: ≤15mA
Quiescent current: 0mA
Operating frequency: 315MHz
Chip Type: Fixed Code (2260) Learning Code Ev1527
Oscillation resistance: according to customer requirements (commonly used 4.7)
Modulation method: ASK amplitude modulation
Size: 56.36 x 31.58 x 11.03mm
Button: 3 button

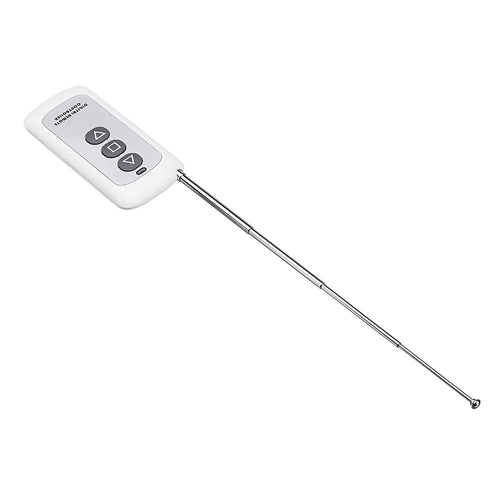

Remote control distance: 100m (in an open environment) (When there is an obstacle or when there is interference, the distance is shortened, please refer to the actual distance)

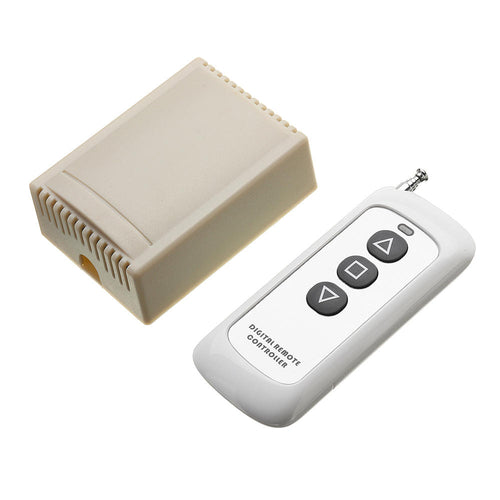

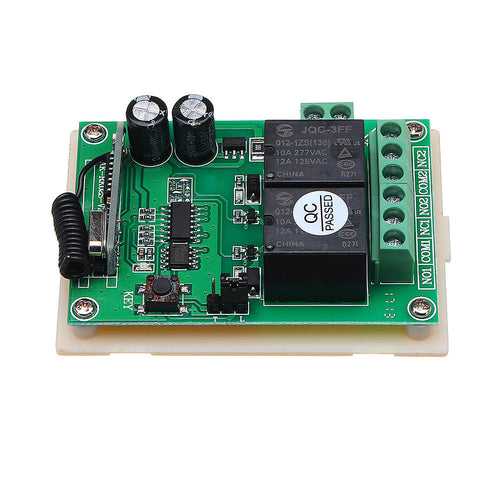

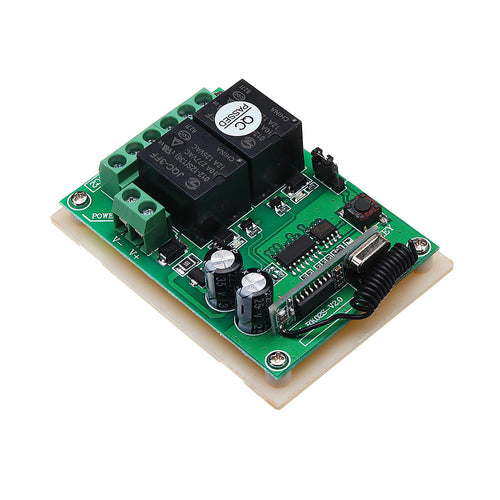

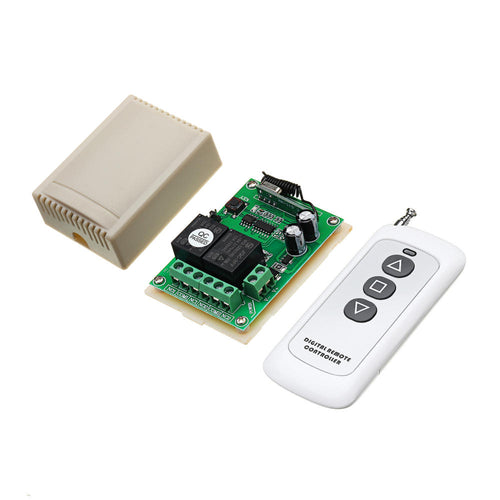

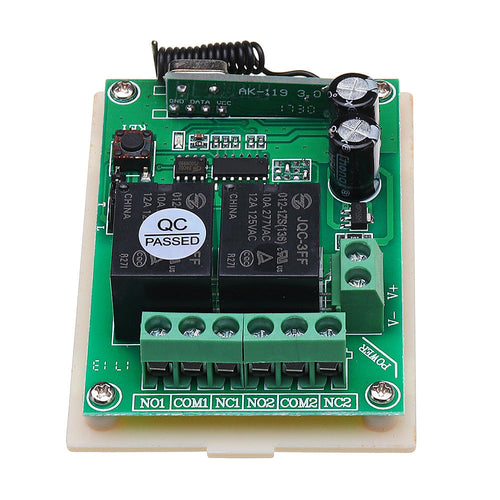

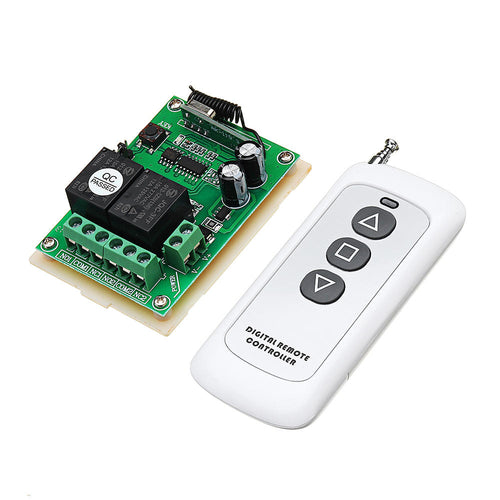

1 x Receiver module with case
1 x Transmitter with battery
