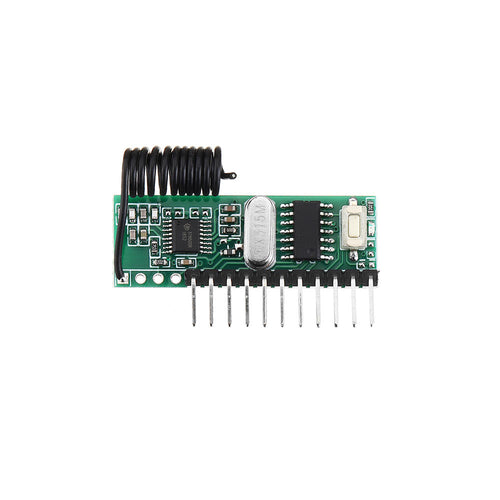

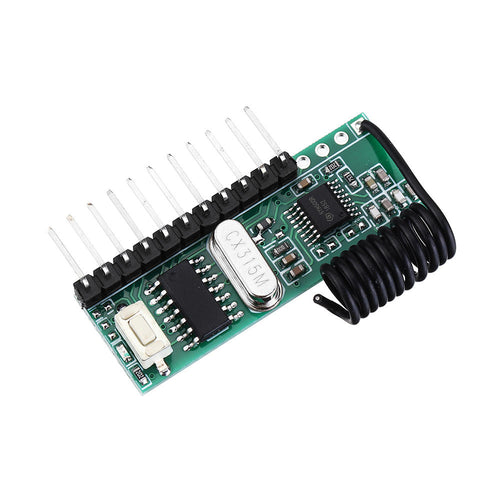

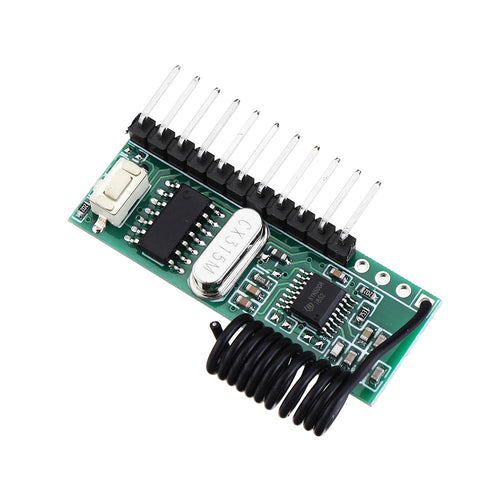

315MHz 8CH Channel Superheterodyne Receiver Module with Decoding Output Module With Remote Control Transmitter
- Hassle-Free Warranty
- 30-Day Money-Back Guarantee
- Fast, Free Shipping
- Lifetime Customer Support
Description
Working voltage: 3-5VDC
Working current: ≤ 4mA (5.0VDC) working principle: super heterodyne
Working method: OOK/ASK
Frequency range: 315MHz
Band width: 150KHz (315MHz, test when the sensitivity drops by 3dBm)
Sensitivity: better than -112dBm (50Ω)
Decoding format: fixed code, learning code
Output signal: TTL level, eight outputs
Antenna length: 24~28cm (315MHz)
Size: 40*12.5*8MM
Work mode switching:
Function 1: Self-locking - learn with button 1
Function 2: Jog - learn with button 2
Function 3: Interlocking - learn with button 4
Function 4: Self-locking and jogging coexist - learning with button 3
Note: If the learned receiver need to change to other functions, please clear the receiver and select the required button to re-code the code.
Study method:
Press and hold the learning button for about 1 second, the indicator light is on. At this time, pressing any button on the remote control flashes to indicate that the learning is successful; you can learn a number of remote controllers with different codes.
Clear method:
Press and hold the learning button, the indicator light will be on constantly. Press and hold for about 10 seconds, the indicator will go out, indicating that the code has been cleared successfully.

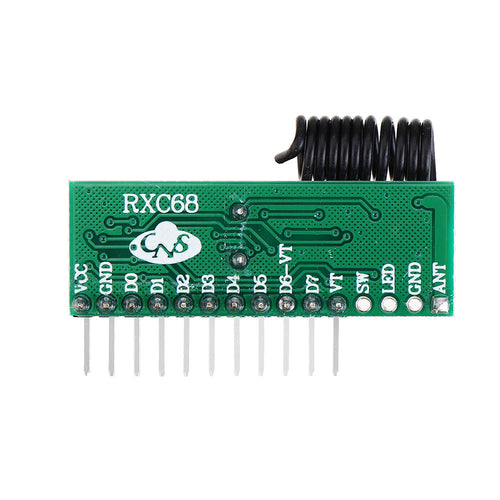

Pin definition:
VT - Decode valid indication output pin (pulse 12345678 eight control signal output pins)
GND - negative supply
VCC - Power Positive DC3-5V
ANT - Antenna
Precautions for use:
1. Use a flexible wire or other hard metal (such as a whip antenna) for the antenna to a length of approximately 28 cm (315 MHz) and use it as straight as possible. Do not approach metal objects.
2. The power supply voltage is stable and the ripple factor is low. Multi-stage filtering is required (such as adding beads, inductors, capacitors, etc.).
3. If the MCU clock frequency is below 4MHZ and the crystal is as far away as possible from the RF receiver module, the higher harmonics of the crystal will affect the communication distance.
4. Note that the rate of the encoding IC and the decoding IC is the same and the format of the code is the same (that is, the oscillating resistance is matched), otherwise the distance will be affected and the communication will not be possible.

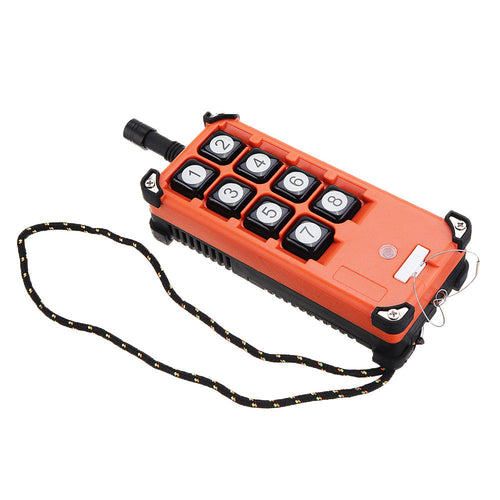

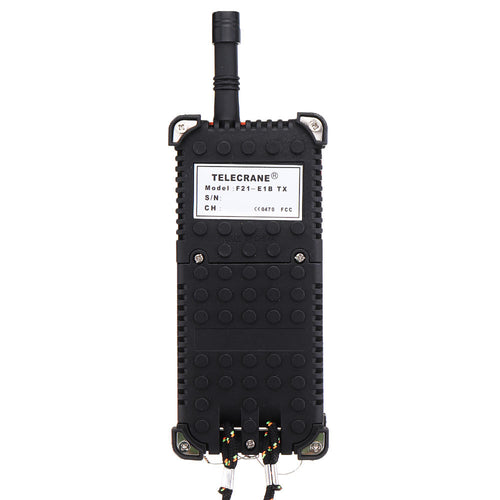

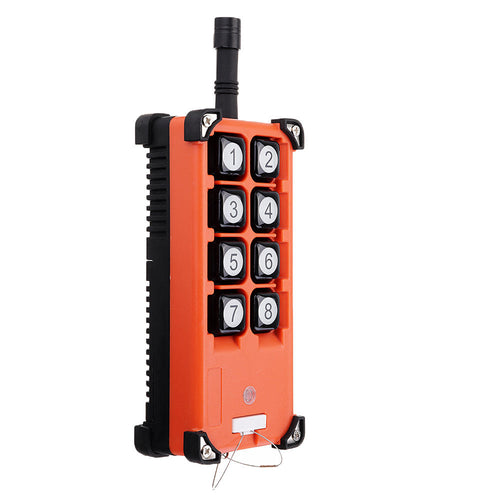

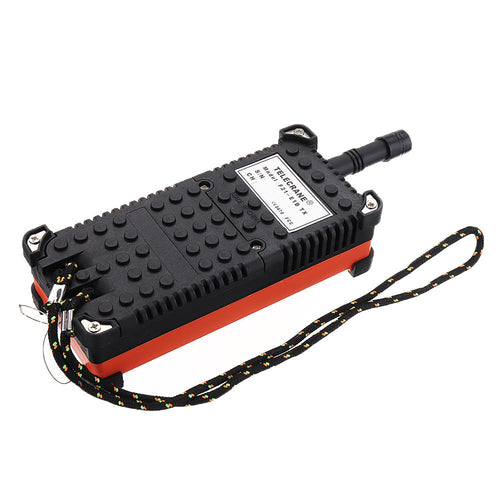

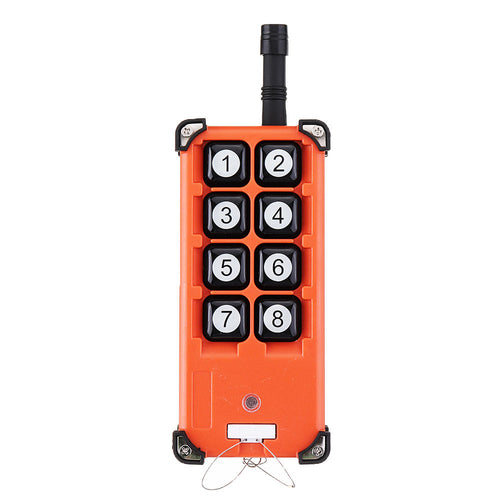

Industrial 8-key remote control parameters:

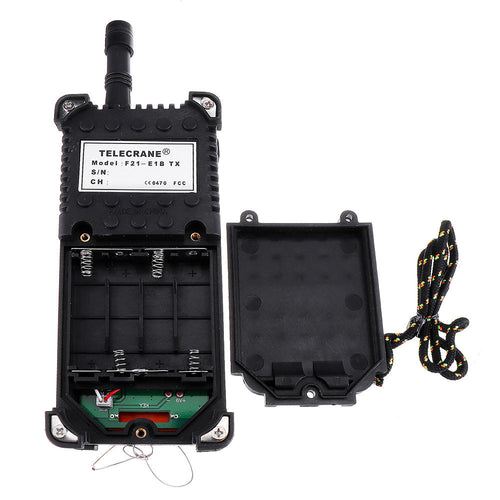

Working voltage: DC6V (4 batteries of AA, the battery is not included)
Quiescent current: 0mA
Working frequency: 315MHZ
Chip Type: Fixed Code (2264)
Oscillation resistance: Default 475?
Launch distance: 200-500M (open environment)
Modulation method: ASK amplitude modulation

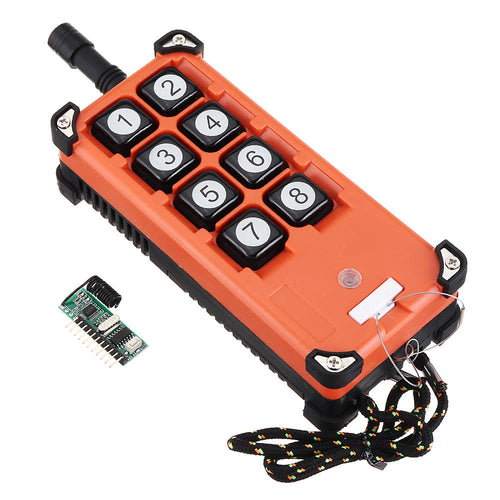

Package includes:
1 x Remote control
1 x?Superheterodyne Receiver Module
315MHz 8CH Channel Superheterodyne Receiver Module with Decoding Output Module With Remote Control Transmitter
$27.99
