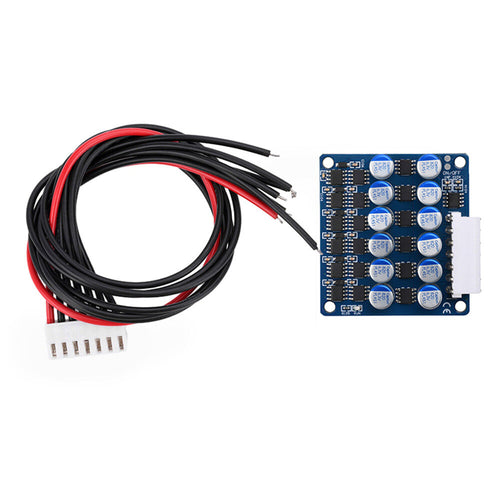

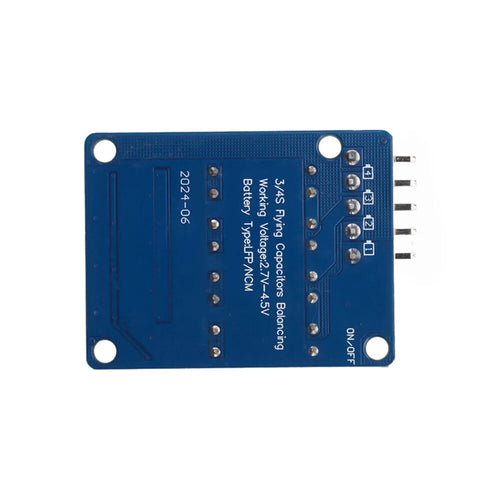

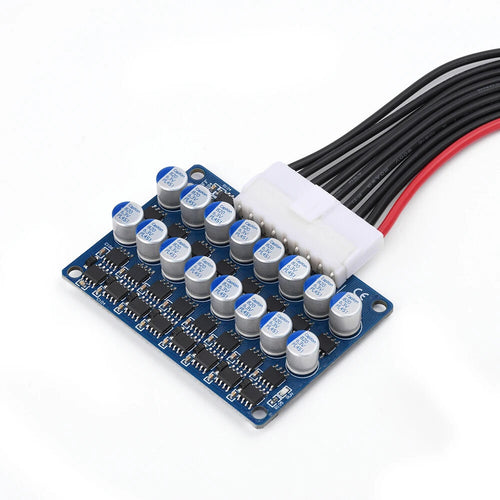

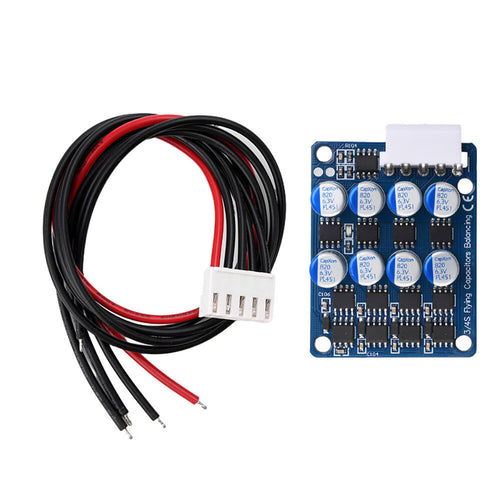

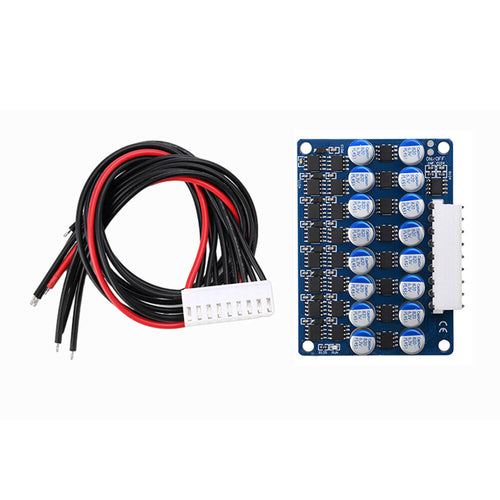

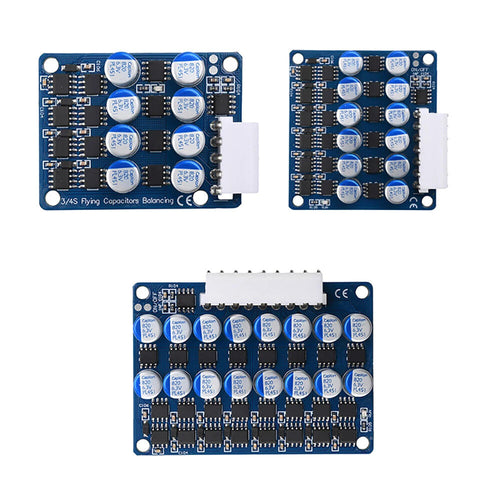

3A 4S 6S 8S Active Equalizer Balancer Lifepo4 Lipo LTO Battery Energy Capacitor Lithium Battery Power Management Enhanced Battery Life

Features:

1. Versatile Battery Compatibility:

Supports a wide range of battery chemistries and configurations, including lithium iron phosphate and ternary lithium batteries, making it adaptable to various industries and applications. This flexibility ensures that users can easily integrate the balancer into different battery systems without the need for extensive modifications.

2. Energy-Efficient Design:

Incorporates a low power consumption mode and efficient circuit architecture, maintaining extremely low energy usage even in standby mode. This reduces energy waste and improves overall efficiency, ensuring that the maximum amount of power is available for critical operations.

3. Comprehensive Active Balancing:

Focuses on the health of the entire battery system by ensuring all units remain optimally balanced. This strategy not only considers individual battery units but also enhances overall performance and safety by maintaining a balanced state across the entire battery pack.

4. Advanced Voltage Monitoring:

Equipped with precise voltage monitoring and active current management. The balance board quickly responds to and adjusts the energy distribution between battery cells, preventing overcharge or overdischarge situations and extending the battery life. This feature enhances the reliability of high-performance applications.

5. High Current Equalization:

Supports high current equalization up to 3A, ensuring stable battery pack operation in high-power applications. Suitable for electric vehicles, drones, and high-performance portable devices, this feature guarantees consistent and reliable power delivery in demanding scenarios.

Specifications:

Suitable for Battery Type: 3.2V-4.4V (Lithium Iron Phosphate/Lithium Ternary and other general-purpose without manual switching)

Maximum Balanced Current: 3A (pressure difference 1.2V)

Balance Voltage Accuracy: 0.01V

Suitable Ambient Temperature: -15℃ to 75℃

Balanced Starting Condition: The power is always balanced; the greater the pressure difference, the greater the balanced current

Balance Mode Principle: Whole capacitor energy transfer balance

Static Current Loss: About 2-6mA (4S-8S slightly different)

Low-Voltage Battery Protection: Unit lower than 2.5V automatically closes balanced protection battery

External Equalization Switch: Can be external (generally not required)

Supporting Plug Wire: VH3.96 @ 20AWG 35CM

Package Included:

1 x 3A Active Equalizer Balancer
