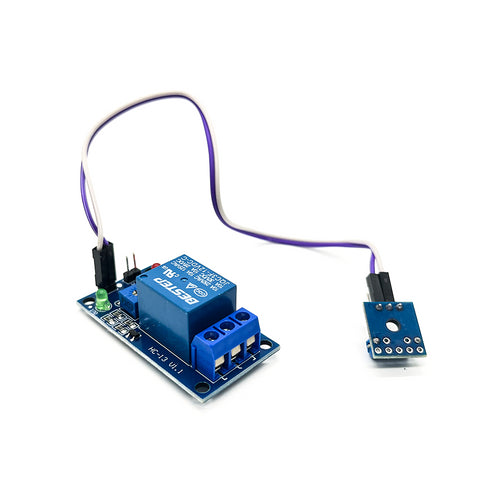

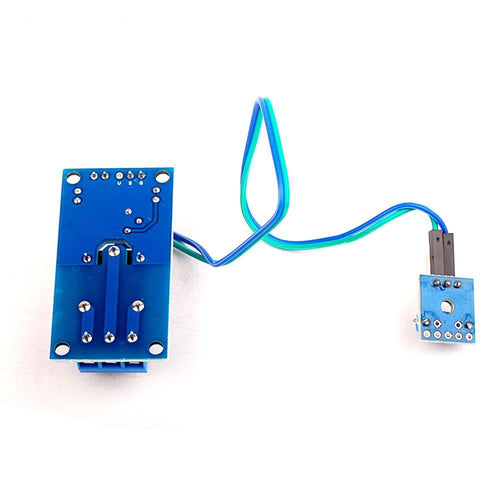

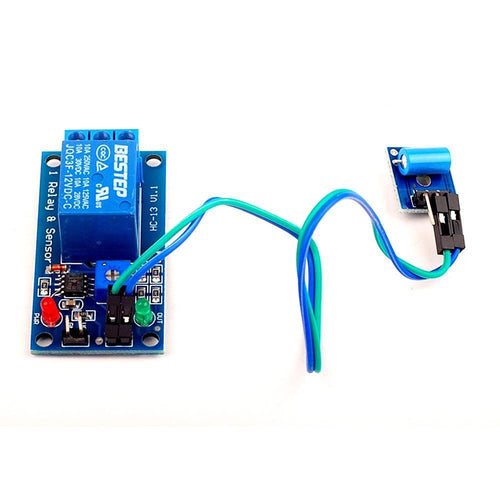

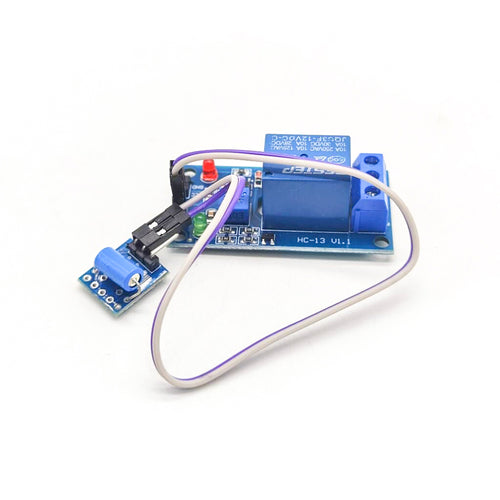

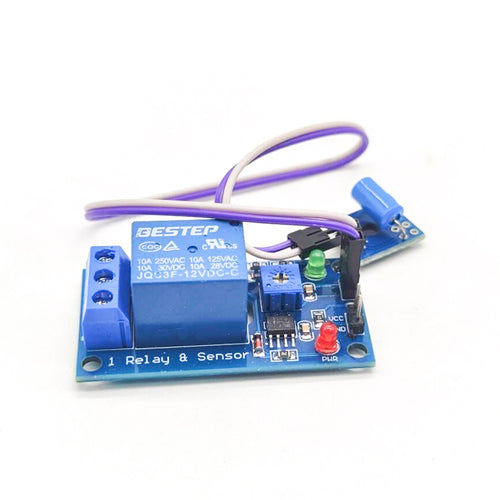

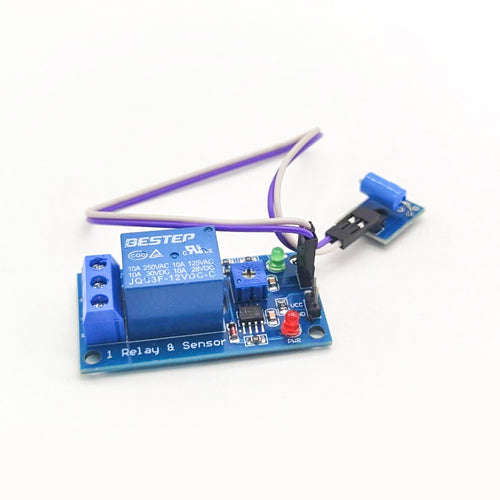

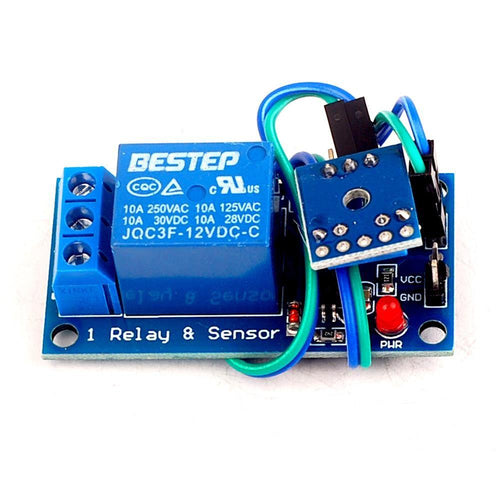

5V/12V Normally Closed Vibration Sensor Module Plus Relay Module 2-in-1 Module AlTriggered Vibration Module
- Hassle-Free Warranty
- 30-Day Money-Back Guarantee
- Fast, Free Shipping
- Lifetime Customer Support
Description
1. With SW-420 sensitive and normally closed vibration sensor;
2. The shock sensor can be externally connected to the detection position, and the line length has no effect on the sensitivity within 10 meters;
3. Directly bring relays to drive high current equipment;
4. With 4 positioning holes.
Instructions:
When the vibration sensor has no vibration induction, the relay is closed and the green light is on, that is, the common end is connected to the normally open end. When the vibration is detected, the relay is turned off. At this time, the green light is off, and the relay is turned into the common end and the normally closed end. Connect
Electrical parameters:
Supply voltage: 5VDC / 12VDC
Current: greater than 100mA
Load: 250V 10A AC or 30V 10A DC
Applications:
The vibration trigger alarm can be directly used in various high current and high voltage applications.
1 x 5V/12V Normally Closed Vibration Sensor Module
5V/12V Normally Closed Vibration Sensor Module Plus Relay Module 2-in-1 Module AlTriggered Vibration Module
$4.99
