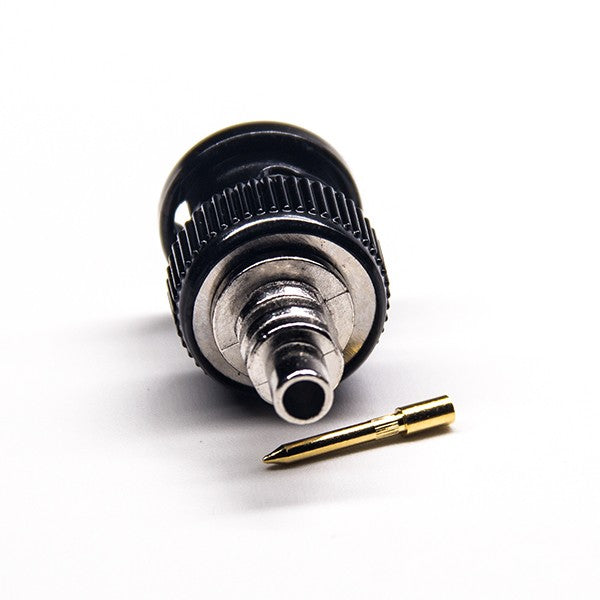

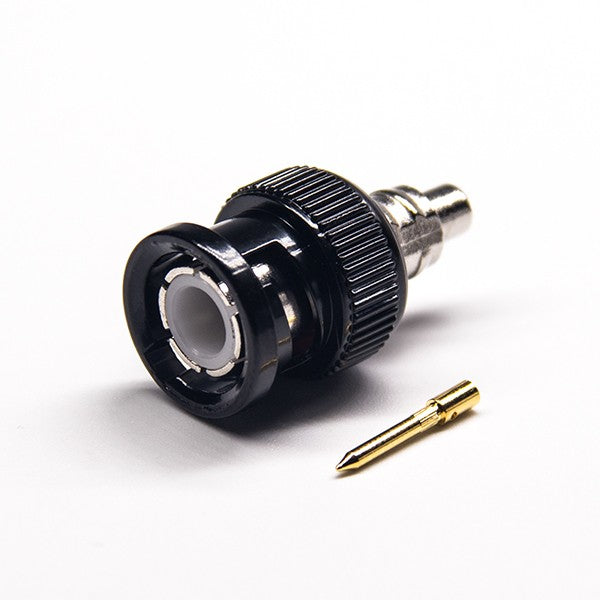

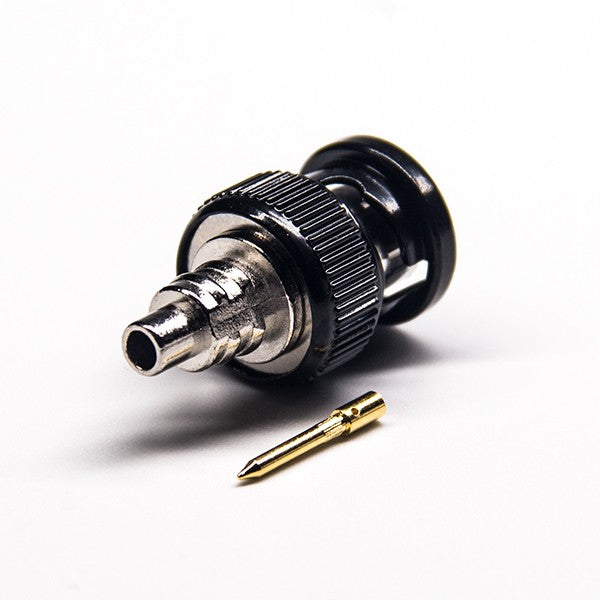

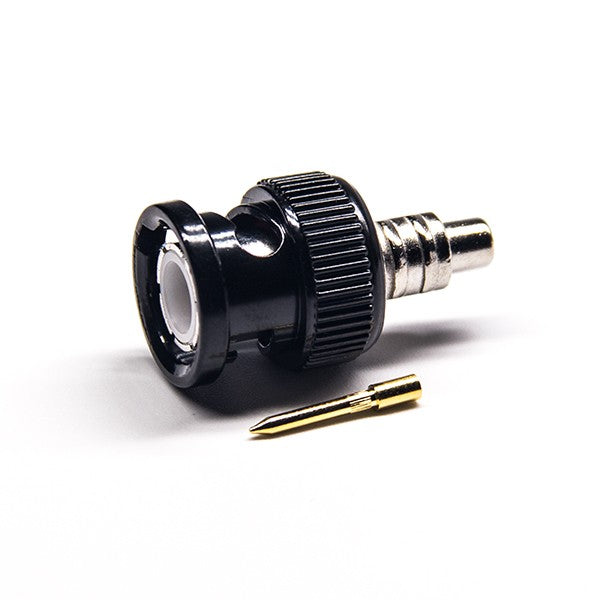

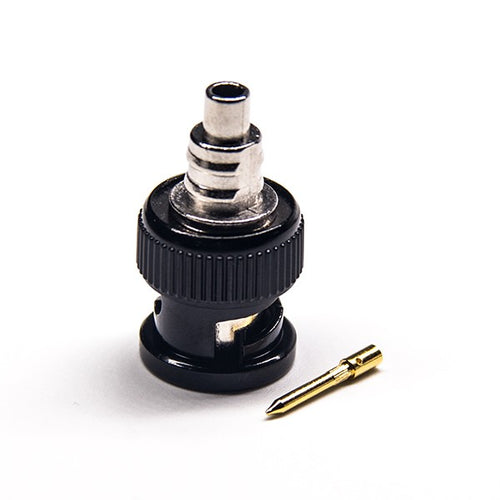

BNC Antenna Connector Straight Male Solder Type with Black Electrophoresis

Product features:

• BNC Connector, Male/Plug,Straight/180deg,Solder Type,Antenna Connector,Black Electrophoresis
• Compact Design for less installation space required;
• Easy quick connect and disconnect coupling;
• High Quality with 30 days 100% Money back;
• From the OEM Original Factory, same quality with much better price.

Applications: Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Technology Equipment, Instrumentation, CCTV, CATV, HDTV, etc.

Electrical Characteristics

• Impedance:50ohm
• Frequency Range: 0~1 GHz for 75 ohm
• VSWR: Straight type <= 1.22/3GHz / R/A type <= 1.30/3GHz
• Dielectric Withstanding Voltage: 1500 V rms
• Working Voltage: 500 V rms
• Center Contact Resistance <= 1.5 m Ohm (Milliohms max.)
• Outer Contact Resistance <= 2.0 m Ohm (Milliohms max.)
• Insultation Resistance >=5 × 103 m Ohm (Milliohms min.)

Mechanical Characteristics

• Coupling: bayonet
• Contact Retention: 6 lbs min.
• Mating Durability: >=500 cycles

Environmental Characteristics

• Environmental Characteristics: Teflon -55Celsius~+155Celsius / POM -40Celsius~+60Celsius
• Coupling Nut Retention: 100 lbs. min.
• Vibration: MIL-STD-202 Method 204
• Corrosion Resistance: MIL-STD-202 Method 101

Material:
