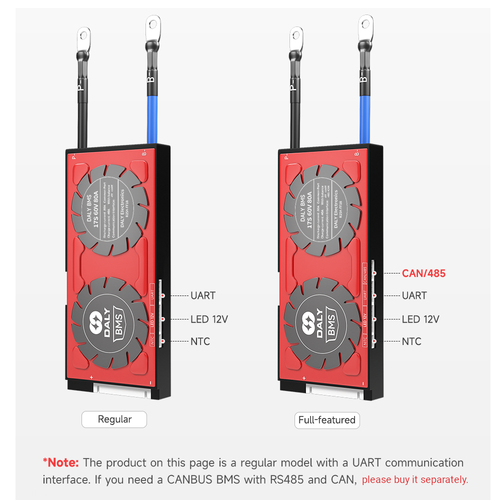

DALY 8S 24V 30A-250A Iron Lithium LifePO4 Lithium Battery Protection Board 8 String Bluetooth BMS 18650 Smart Board
DALY 8S 24V 30A-250A Iron Lithium LifePO4 Lithium Battery Protection Board 8 String Bluetooth BMS 18650 Smart Board
DALY 8S 24V 30A-250A Iron Lithium LifePO4 Lithium Battery Protection Board 8 String Bluetooth BMS 18650 Smart Board
DALY 8S 24V 30A-250A Iron Lithium LifePO4 Lithium Battery Protection Board 8 String Bluetooth BMS 18650 Smart Board

DALY 8S 24V 30A-250A Iron Lithium LifePO4 Lithium Battery Protection Board 8 String Bluetooth BMS 18650 Smart Board

$28.99

Current: 30A

30A
40A
60A
80A
100A
120A
150A
200A
250A
Add to Wishlist
  • Hassle-Free Warranty
  • 30-Day Money-Back Guarantee
  • Fast, Free Shipping
  • Lifetime Customer Support

amazon paymentsamerican expressapple paybitcoindankortdiners clubdiscoverdogecoindwollaforbrugsforeningeninteracgoogle payjcbklarnaklarna-pay-laterlitecoinmaestromasterpaypalshopify paysofortvisa
SKU: EB-2007020
Availability : In Stock Pre order Out of stock
Description

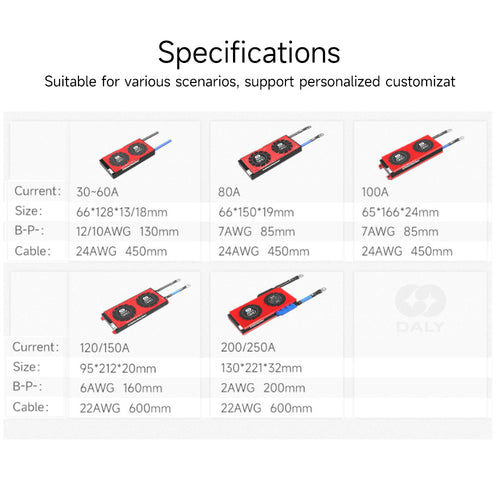

Product Parameters:

*lf you need customized services, please consult customer service for details.

Charge voltage

LifePO4: N(strings)*3.65V

Discharge current (A)

30

40

50

60

80

100

120

150

200

250

300

400

500

Discharge overcurrent protection value(A)

45

60

75

90

120

150

180

225

300

375

450

600

750

Charge current (A)

15

20

25

30

40

50

60

75

100

125

150

200

250

Charge overcurrent protection value(A)

45

60

75

90

120

150

180

225

300

575

450

600

750

Main Circuit Conduct Inner resistance

<=20mΩ

Over charge protection

Balance voltage

Detect voltage: LifePo4: 3.75±0.05V

Detect voltage: LifePo4: 3.2V

Protection delay: 1S

Release voltage: LifePo4: 3.2V

Release voltage: LifePo4: 3.55±0.05V

Balance current: 50±5mA

Over discharge protection

Over Discharge current protection

Detect voltage: LifePo4: 2.2±0.05V

Protection delay: 1S

Protection delay: 1S

Protection release condition: Off load

Release voltage: LifePo4: 2.3±0.05V

Short circuit protection

Self Consumption

Protection conditon:Short circuit of external load

Working current: 35mA

Detect delay: 200~500uS (Subject to actual test)

Sleeping current over-discharge): 800uA

Release condition: Off load

Working Temp Charge: -40~65°C Discharge: -40~70℃ (Customizable)

Working Temp range: -20~60

Storing Temp range: -40~85

Package includes:

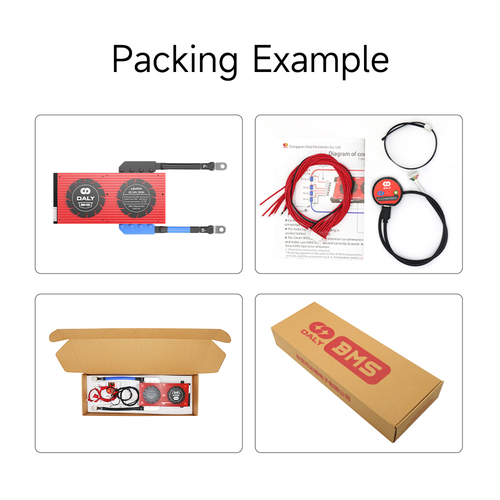

1 x Battery Protection Board

1 x Cable

1 x Temperature control

(The appearance and weight of products with different currents are inconsistent. Please refer to the product appearance received. thank you for understanding)

Protective board connection battery wiring:

* Special attention: The wire cable of different manufacturers are not same standard, please make sure to use he matching cables; the colors of B- and P- lines of different manufacturers are different, please pay attention to the B- and P- marks.

1. Remember!!! When welding sampling wire cable, do not insert the cable into the BMS.

2. The cable connects the total negative electrode B-from the fine black line. The second wire (red wire) is connected to the positive pole of the first string of batteries.Connect the positive electrode of each string of batteries in turn until the last wire cable of the total positive B+.

3. After the cable is connected, do not insert the plug directly into the BMS.First measure the voltage between each two adjacent metal terminals on the back of the plug. If it is a ternary lithium battery, the voltage should be between 3.0~4.15V, and the iron-lithium battery should be 2.5~ Between 3.6V, lithium titanate battery should be between 1.8-2.8V, make sure the voltage is correct before proceeding to the next step.

4. Receive the BMS B-line (blue thick line) to the total battery negative electro-de (B-line length should not exceed 40cm).

5. Insert the wire cable into the BMS.

After the wiring is completed:

1. Measure whether the voltage of battery B+, B- is equal to the voltage of B+ and P- (that is, whether the voltage of the battery pack itself is e- qual to the voltage after passing through the protection board, if they are equal, the BMS is working normally, which can be used normally. If not, please follow Re-check the queue of the wiring above.

2. The positive electrodes of the charging and discharging end are all directly connected to the total positive pole B+ of the battery; the wiring method of the same port BMS is that the charging and discharging negative poles are connected to the P- point of the BMS; the wiring m- ethod of the branch BMS is the negative pole of charging Connected to C-, the negative electrode of discharge is connected to P-.

3. Finally, if you have any questions, please contact the customer service to help you solve it.
