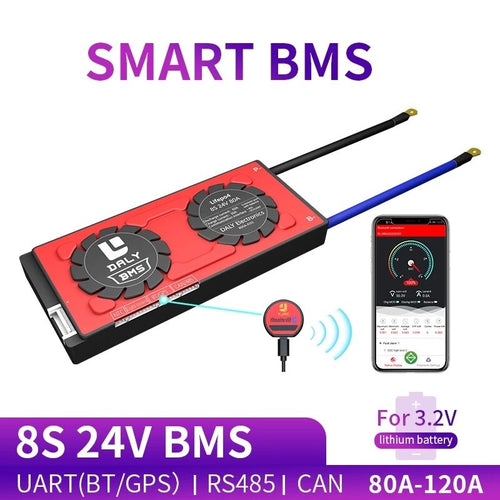

DALY BMS 8S 24V 80A 100A 120A 18650 Smart LiFePO4 Bluetooth 485 to USB Device CAN NTC UART Togther Lion LiFePO4 LTO Batteries

Note: The first use of Smart BMS requires charging activation before it can be used. For the operation steps, please refer to "Connect and Activate Video" in the following document.

>>>Manual: Click here to open<<<

Attention:

1. Customer need to identify the battery's series, then choose the same series BMS. Such as your battery is 24S, you must choose 24S BMS, can not choose 20 or other one. The number of  series of BMS is  fixed ,not adjustable once the BMS is shipped out .

2. The first time the smart BMS is used, it needs to be charged and activated.

3. BMS touch control screen and Bluetooth module can not be used at the same time, choose one of the two, the same interface.

4. All accessories and BMS are the latest version, maybe the picture has not been updated, if you are concerned about the version, please consult the specific situation before purchasing.

Description:

Daly 18650 3.2v smart BMS 12S 36V 80A 100A 120A Bluetooth 485 to USB device NTC UART software togther Lion LiFepo4 Battery BMS

Currently, all Smart BMS without the waterproof function.

This link is for 12S 36V LiFepo4 Battery.

Features:

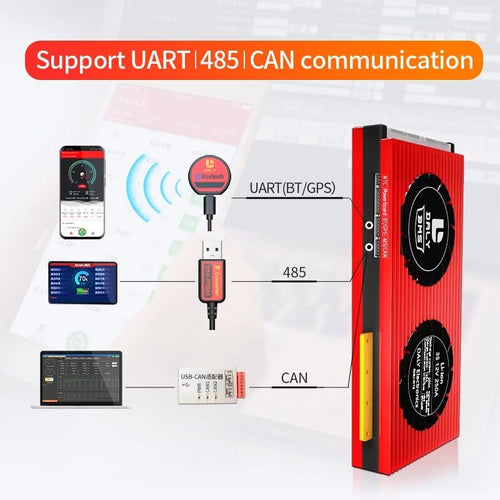

◆ UART: It is Daly normal product.  UART is Universal Asynchronous Receiver/Transmitter, It transforms the data to be transmitted between serial communication and parallel communication. As a chip to convert parallel input signals into serial output signals, UART is usually integrated into other communication interfaces.

◆ RS485: Please choose the model RS485 of Daly. RS-485 adopts balanced transmission and differential reception, so it has the ability to suppress common mode interference.

◆ Bluetooth module : if you need this function, Please choose bluetooth module, if you do not buy it, we will not send it to you.

DL 12S  36V Smart BMS 80A 100A 120A bms  can be used to 12S Li ion or LiFePO4 or LTO battery pack.  Customer can adjust the paramter of overcharge or overdischarge the parameter sitting & other parameter if customer need to use which type battery for the same series battery.

◆Control instructions: remote control device monitoring.

◆Vehicle icon: data transmission send command

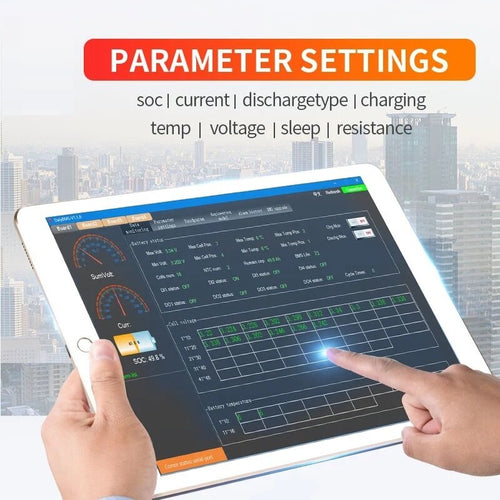

◆Statistical report: Collect the data information, the customer can monitor the battery capacity & other alarm infomation.

◆Electronic fence: fence setting limit range.

◆Device information: device parameter information, etc.

The information on your battery can be checked on your host computer, then you can monitor your battery status anytime. Which is easly control your device. Smart BMS make our life to become easy.

Packege Included:

(Choose different BMS specifications according to your needs:)

80A com UART 485/80A com UART 485 CAN/80A com UART BT/100A com UART 485/100A com UART 485 CAN/100A com UART BT/120A com UART 485 CAN/120A com UART BT

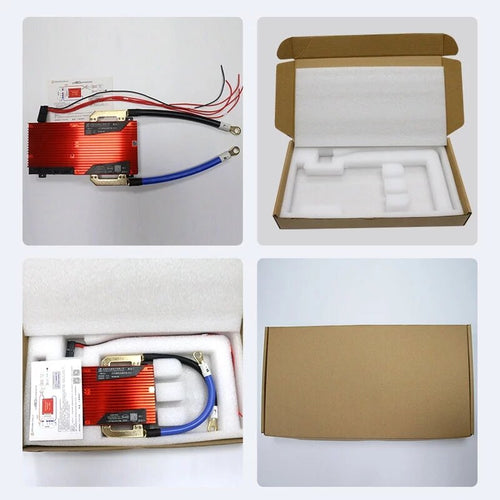

1 x BMS Board

1 x Cable (Use to connect battery)

1 x NTC Module

Below accessary need you to buy separately:

1 x USB to UART Cable 6P(optional)

1 x USB to RS485 Cable(optional)

1 x Power display panel (optional)

1 x Bluetooth module (optional)

1 x UART touch control screen(optional)

1 x RS485 touch control screen(optional)

1 x USB to CAN box(optional)

If you need more BMS accessories information, you can click here to open

>>>ID: 1872195 <<<
