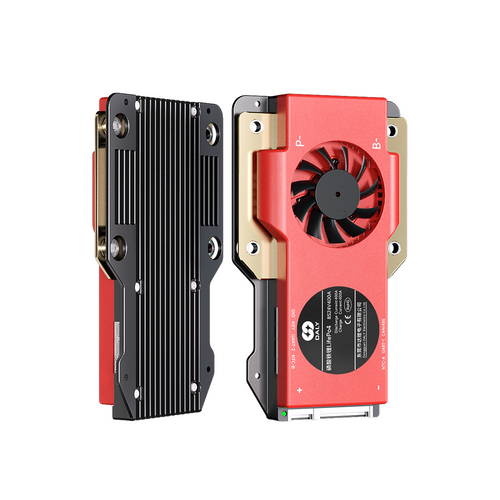

Daly BMS Smart Board LiFePO4 with Fan Iron Lithium Battery Protection Board with Balance+bluetooth+RS485+CAN S-type 4~24 Series with Parallel Module 3.65V

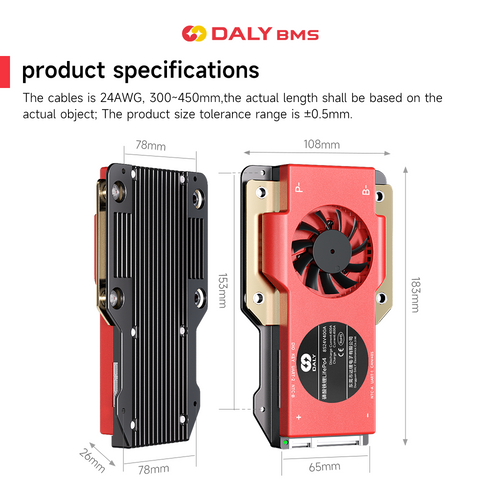

Specification:

Charging voltage(V)

LiFePO4: N (Battery string)*3.65V

Discharge current (A)

250 300 400 500

Discharge overcurrent protection value (A)

375 450 600 750

Charging current (A)

250 300 400 500

Charge overcurrent protection value (A)

375 450 600 750

Main circuit on-resistance (mΩ)

<10

Passive equalization function

(100±30mA)

Equalization turn-on voltage (V)

LiFePO4: 3.4 (Can be set up)

Equalize opening differential pressure (mV)

50(Can be set up)

Balance current (mA)

LiFePO4: 100±30

Short circuit protection

Short circuit protection conditions

External Load short circuit

Short circuit protection delay(uS)

10-500 The actual test is subject to the customer's battery sent back to our company for testing

Short circuit protection released

Remove load release

Single Cell over-charge protection

Protection voltage(V)

LiFePO4: 3.75±0.05 (Can be set up)

Protection delay(S)

1±0.8

Recovery voltage(V)

LiFePO4: 3.65±0.05

Single Cell over-discharge protection

Protection voltage(V)

LiFePO4: 2.2±0.05 (Can be set up)

Protection delay(S)

1±0.8

Recovery voltage(V)

LiFePO4: 2.3±0.05

Charge/discharge over-current protection

Protection delay(S)

1±0.8

Release condition

Removing the load is lifted

Current consumption

Working current(mA) < 50

Temperature protection(℃)

Operating temperature(℃)

Charging: -35~75 discharge: -35~75 (can be set up)

Storage temperature(℃)

-40~85

Resting current(uA)

<800

Sleep time(S)

3600

The above data is the temperature test results of DALY laboratory, for reference only.

If you need customized services, please consult customer service for details

Installation and wiring in 3 easy steps:

Step 1:

Solder the sampling cables: The first cable in black in the sampling cable set is connected to the negative terminal of the battery, the second cable (red) is connected to the positive terminal of the first string of batteries, and the third cable (red) is connected to the positive terminal of the second string of batteries. And so on, until all cables are connected.

Step 2:

Check the cables: After connecting the cables, measure the voltage between two adjacent cables starting from the header to make sure there are no wrong connections or missing connections.

Step 3:

Connect the output wires: Connect the B- wire of BMS to the total negative terminal of the battery pack, and then plug the sampling cable to BMS. After activating the BMS, make sure that the voltage (battery voltage) between B+ & B- and the voltage between P+ & P- are consistent.

Activate the BMS:

The BMS is automatically activated when used for the first time.

If the BMS is dormant, it can be activated in 4 ways:

(Before the bms is activated, please make sure that the bms, the cable, the battery are connected correctly, and the NTC is connected with the bms.)

1. Use key switch.

2. Press buttons on bluetooth module or SOC indicator.

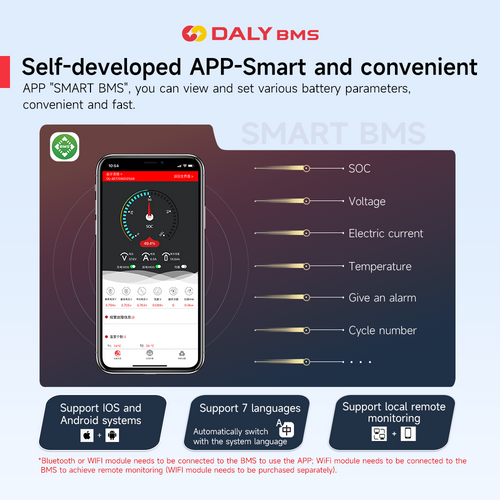

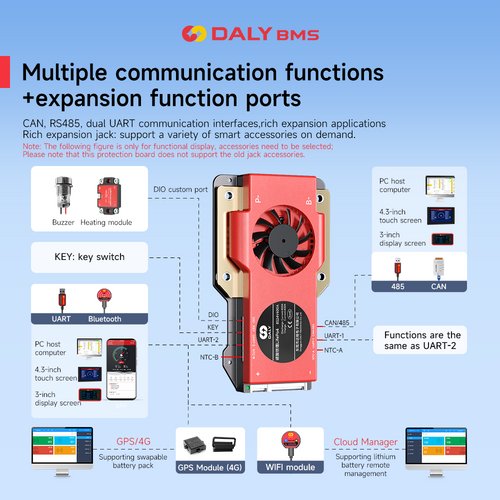

3. Using CAN/RS485 communication or Bluetooth connect to Mobile APP.

4. Charge or discharge the battery.

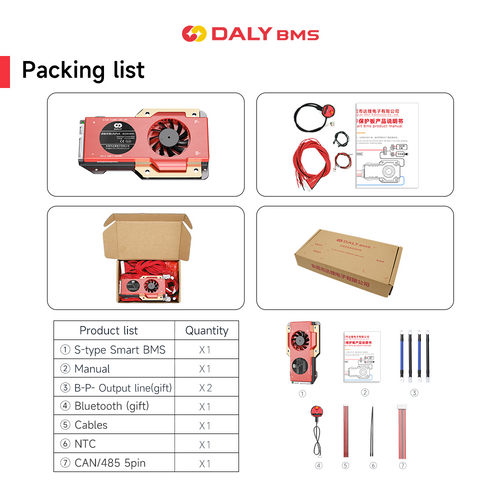

Package includes:

1 x Smart BMS S-type with Fan

1 x Cable

1 x bluetooth

1 x NTC

1 x CAN/485 5pin

2 x B-P-Output line
