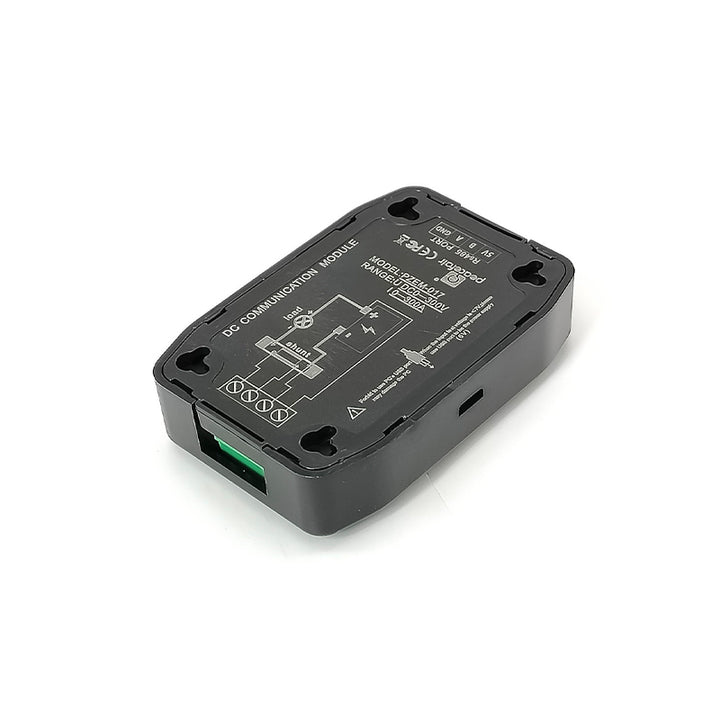

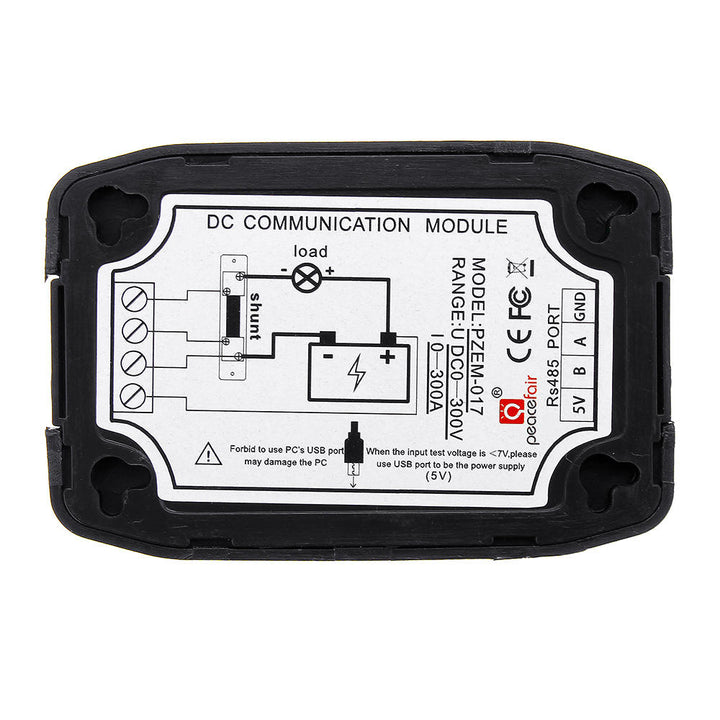

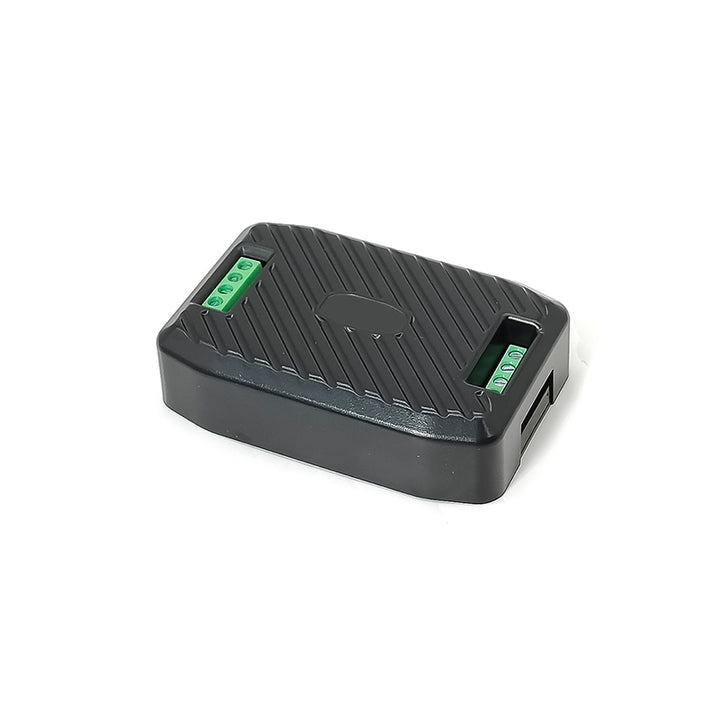

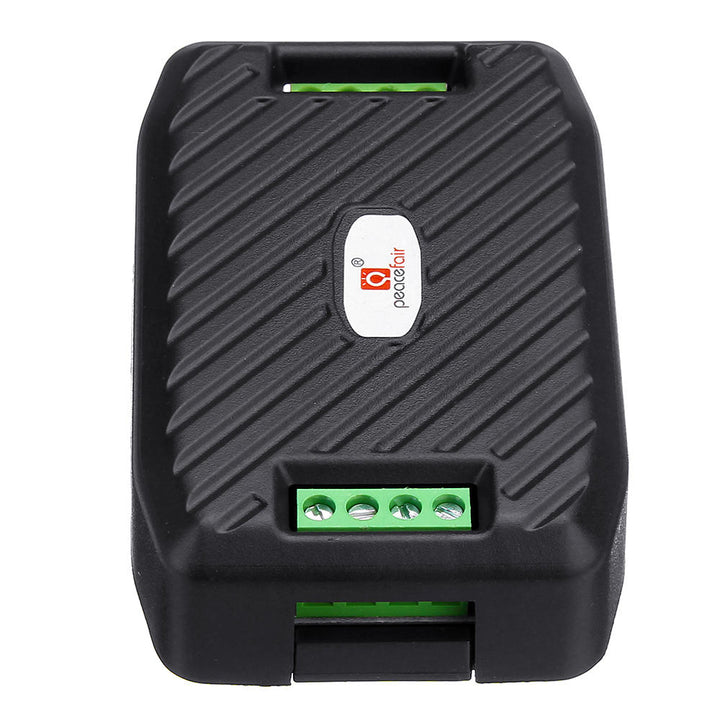

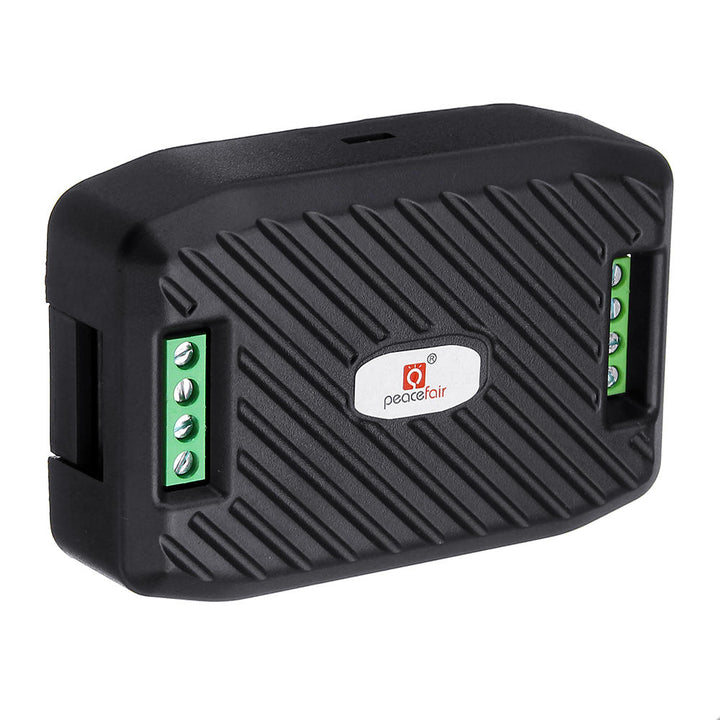

DC 0-300V 300A Voltmeter PZEM-017 Communication Wireless Module RS485 Modbus Voltage Current Power Energy Detector
- Hassle-Free Warranty
- 30-Day Money-Back Guarantee
- Fast, Free Shipping
- Lifetime Customer Support
Description
If you are looking for 10A PZEM-003 click here 1386555
Specifications:
Measurement accuracy: 1.0 grade
Working temperature:-20℃~ +60℃
Communication port:RS485
Power Supply:DC
Certificate:CE,FCC
Dimensions:90*60.5*23mm(L*W*H)
Function and Display Format:
Voltage
1. Measuring range:0.05-300V. (when the test voltage is 7V, please use the independent power supply mode)
Resolution:0.01V.
2. Measurement accuracy:1%.
Current
1. Measuring range: 0.02-300A(PZEM-017).
2. Resolution:0.01A
3. Measurement accuracy:1%
Power
1. Measuring range:0.2-90kW(PZEM-017)
2. Resolution: 0.1W
3. Measurement accuracy:1%
Energy Consumption
1. Measuring range: 0-9999kWh
2. Resolution: 1Wh
3. Measurement accuracy:1%
Over Voltage alarm
1. Voltage threshold can be set, divide into high voltage and low voltage threshold, when the measured voltage exceeds the threshold, it can alarm
2. The default high voltage threshold is 300V, the default low voltage threshold is 7V.
Note:
Do not use the USB port bring by your PC to be the independent power supply, otherwise it may damage your PC !
1 x PZEM-017 Communication Module
If you are looking for 10A PZEM-003 click here 1386555
DC 0-300V 300A Voltmeter PZEM-017 Communication Wireless Module RS485 Modbus Voltage Current Power Energy Detector
$11.87
