DC 12V 4-20mA 0-5V 0-10V Voltage Signal Acquisition RS485 Modbus RTU Module for PLC Current Transmitter Measuring Instruments
- Hassle-Free Warranty
- 30-Day Money-Back Guarantee
- Fast, Free Shipping
- Lifetime Customer Support
Description
Precise details:
>>>Manual: Click here to open<<<
Description:
1: Operating Voltage : DC 8-25V(DC 9V 12V 15V 24V)
2: Operating Current : 10-14MA
3: MODBUS RTU Command support 03 06 function code
4: V1(CH1) channel voltage measurement range is 0-5V, V2(CH2) channel voltage measurement range is 0-10V, C1/C2(CH3/4) channel current measurement range is 0-20MA/4-20MA
5: Voltage resolution is 0.01V, measurement accuracy is 1%; current resolution is 0.1MA, measurement accuracy is 1%; if the error is greater than 1%, it can be calibrated
6 :MODBUS commands can be made serial HyperTerminal (serial assistant) OR PLC Enter;
7 :Under the MODBUS command mode, it can support up to 247 devices in parallel

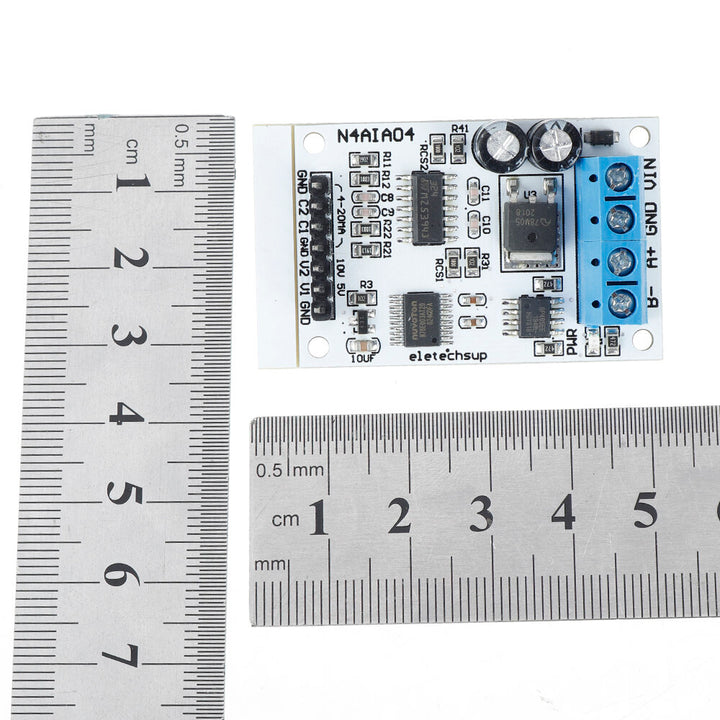

8 :Size: 45 * 30 * 15mm
9 :Weight: 11 g
Application:
4-20MA/0-20MA Sensor
Voltage/Current analog acquisition
Automated industry PLC
Smart Home,Home Automation ;
Identification system;
RS485 Remote monitoring;
Multimeter voltmeter
Electronic Measuring Instruments
Package inlcuded:

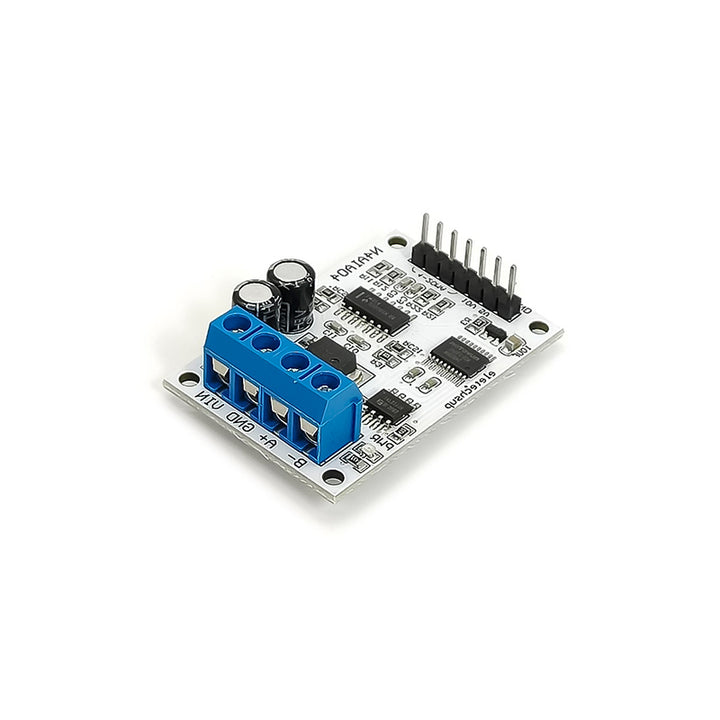

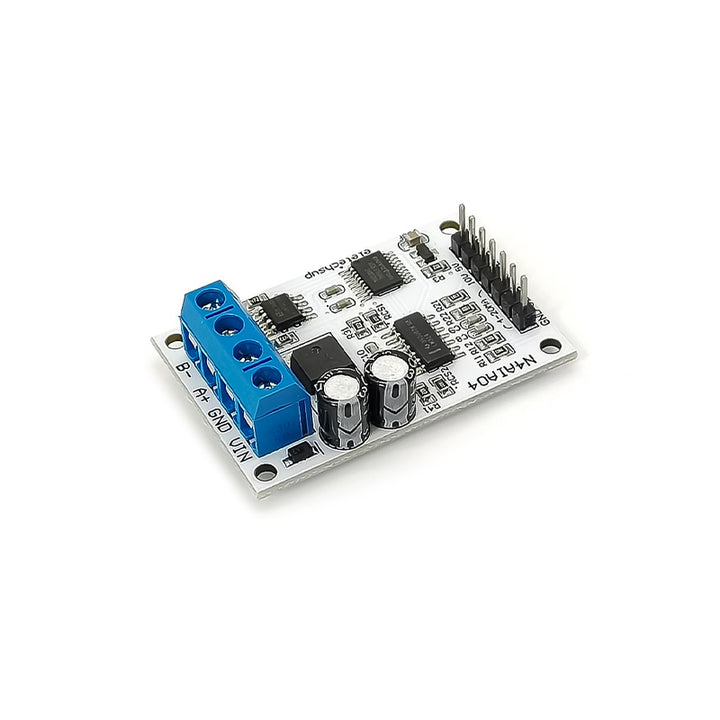

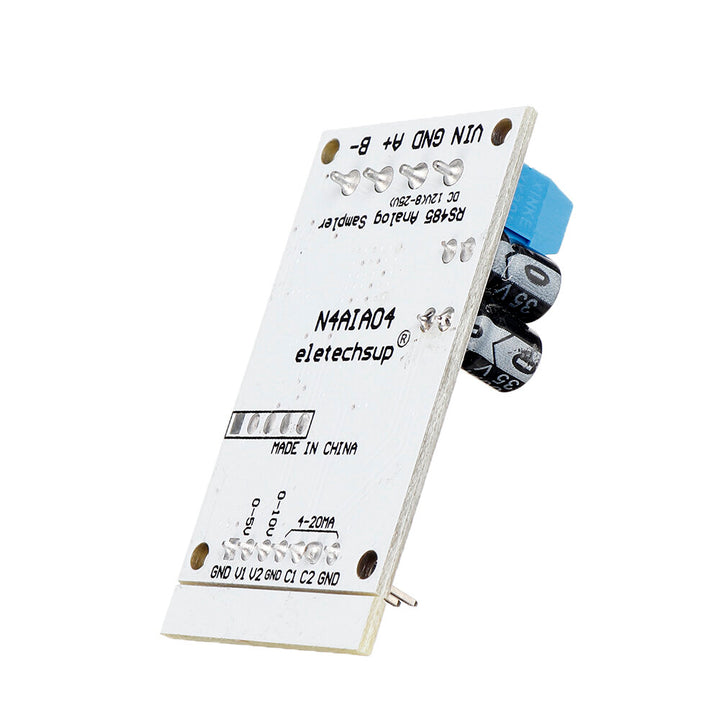

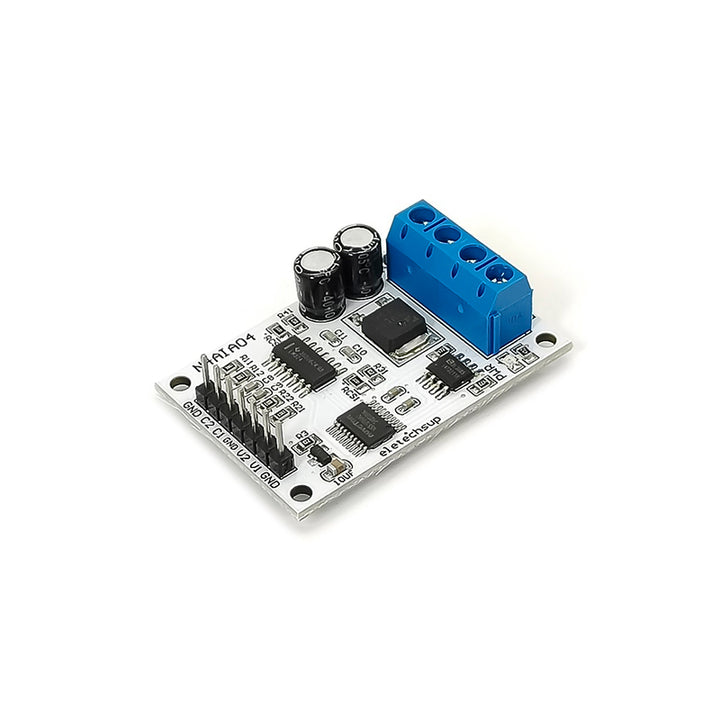

1 x N4AIA04 9V 12V 24V 4 Channel Voltage/Current analog acquisition RS485 module
Description:
1: Operating Voltage : DC 8-25V(DC 9V 12V 15V 24V)
2: Operating Current : 10-14MA
3: MODBUS RTU Command support 03 06 function code
4: V1(CH1) channel voltage measurement range is 0-5V, V2(CH2) channel voltage measurement range is 0-10V, C1/C2(CH3/4) channel current measurement range is 0-20MA/4-20MA
5: Voltage resolution is 0.01V, measurement accuracy is 1%; current resolution is 0.1MA, measurement accuracy is 1%; if the error is greater than 1%, it can be calibrated
6 :MODBUS commands can be made serial HyperTerminal (serial assistant) OR PLC Enter;
7 :Under the MODBUS command mode, it can support up to 247 devices in parallel
8 :Size: 45 * 30 * 15mm
9 :Weight: 11 g
Application:
4-20MA/0-20MA Sensor
Voltage/Current analog acquisition
Automated industry PLC
Smart Home,Home Automation ;
Identification system;
RS485 Remote monitoring;
Multimeter voltmeter
Electronic Measuring Instruments
Package inlcuded:
1 x N4AIA04 9V 12V 24V 4 Channel Voltage/Current analog acquisition RS485 module
DC 12V 4-20mA 0-5V 0-10V Voltage Signal Acquisition RS485 Modbus RTU Module for PLC Current Transmitter Measuring Instruments
$9.99
