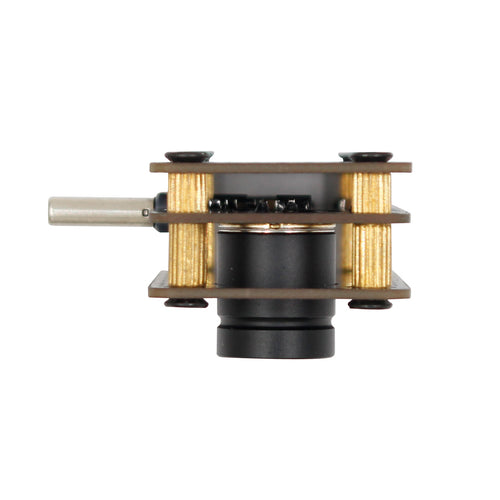

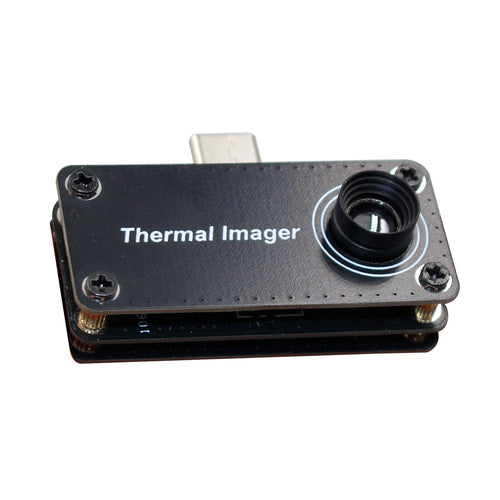

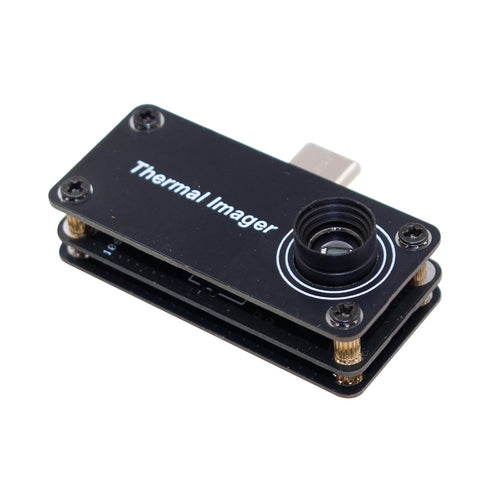

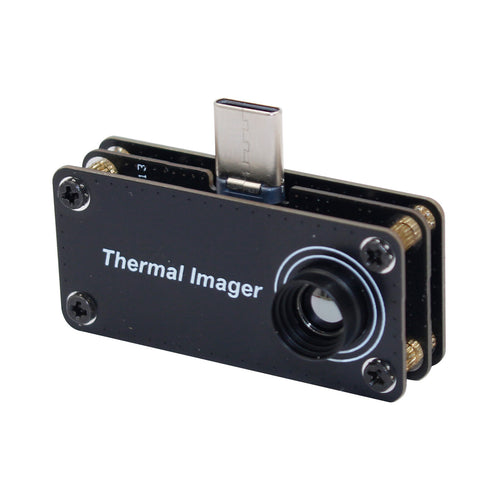

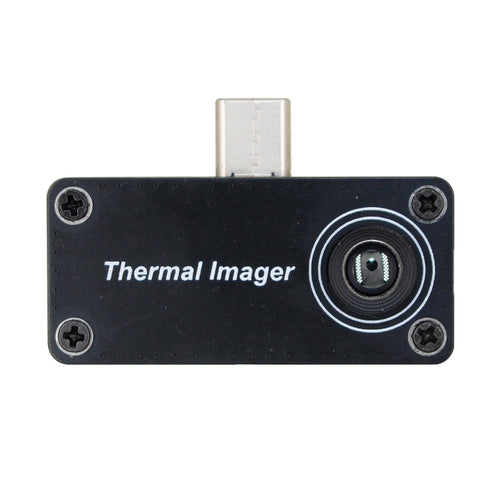

Infrared Thermal Imaging Camera Temperature Measurement Imager USB TypeC for Android Mobile Phone Enhanced

Feature:

>>>Manual: Click here to open<<<

* Made of high quality materials

* Menu Menu in the upper right corner of the main interface: Select the APP language. Currently, English and Simplified Chinese are supported.

* Maximum temperature, minimum temperature (mintemp), and center temperature (Centem): represent the temperature values corresponding to the current measurement screen.

* Landrevert: mobile layout inversion. This allows you to rotate and hold the phone so that the thermal camera is on top of the phone. Pay attention to the automatic rotation function of some mobile phone models.

* ColorPalette: refers to the pseudo-color plate solution used in thermal imaging screens, which is convenient for use in different scenarios.

* PaletteScale: refers to the maximum and minimum temperatures corresponding to the current color scheme that automatically follow the upper and lower limits of the current screen temperature or manually set values, that is, the upper temperature limit (PaletteUpper), and the lower temperature limit.

* Emissivity: If you just look at the temperature distribution on the surface of the object and do not need to measure the absolute value of the temperature, you can use the default emissivity. If you need to measure the temperature of an object more accurately, you need to check the emissivity of the object's material.

Specification:

Differential rate: 32×32

Interface: Type-C

Mobile phone system: And roid 8-12, supports saving pictures locally

Viewing angle: 33°

Maximum frame rate: 5FPS

Number of color plates: 5 types

Temperature measurement accuracy: ±3℃

Temperature measurement: -20～1000℃

Working temperature: 0-50℃

Storage temperature: -40℃～80℃

Package Included:

1 x thermal imager

1 x manual
