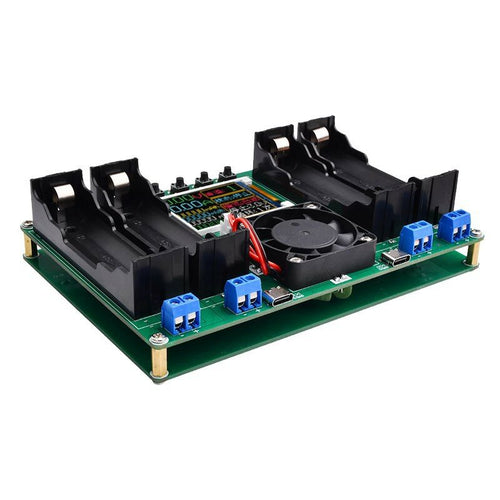

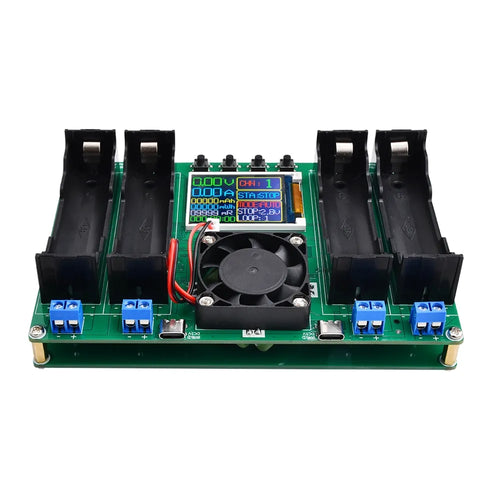

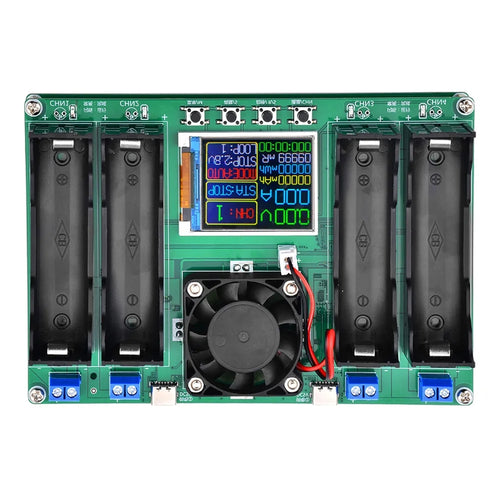

LCD Display 18650 Lithium Battery Digital Measurement Lithium Battery Power Detector Module 4 Channels Battery Capacity Tester DC 5V



>>>Manual: click here to open<<<

Specifications:

Working voltage: DC5V

Applicable battery: suitable for all batteries that meet the requirements of stopping discharge voltage of 2.5~3.5V and starting from 2.8V to 4.2V

Power supply interface: two Type-C power supply interfaces

System language: English

Test quantity: 4-way charging and discharging measurement

Internal resistance measurement: support, use DC two-wire method to test internal resistance

Charging function: support, automatic cut-off charging when fully charged (lithium iron phosphate battery charging is not supported)

Discharge function: support, automatically stop when conditions are met, and the discharge current is not adjustable

Automatic charging and discharging: supported. The battery is fully charged at the end of automatic mode

Cyclic charging and discharging: supported, 1~9 cycles adjustable (only supported in automatic mode)

Status prompt: Supported

Cooling mode: fan active cooling

Overheat protection: support

Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 adjustable gears

Discharge current: the maximum current is about 1A, which is not adjustable, and does not support stand-alone modification

Charging voltage: controlled by a special battery charging chip, with a maximum charge of about 1A and a full charge voltage of 4.2V

Power-off saving: only save the set parameters, not the measurement data

Weight：200g

Package Included:

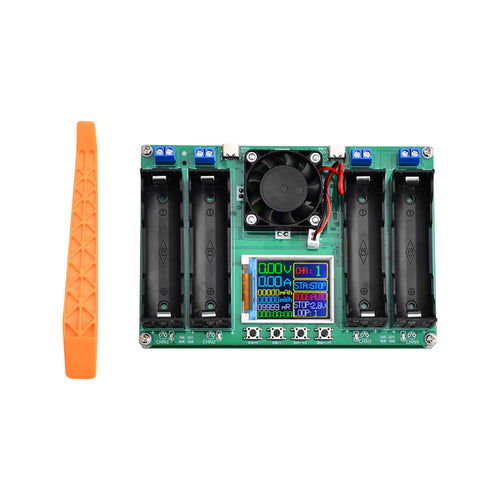

1 x  Battery Capacity Tester
