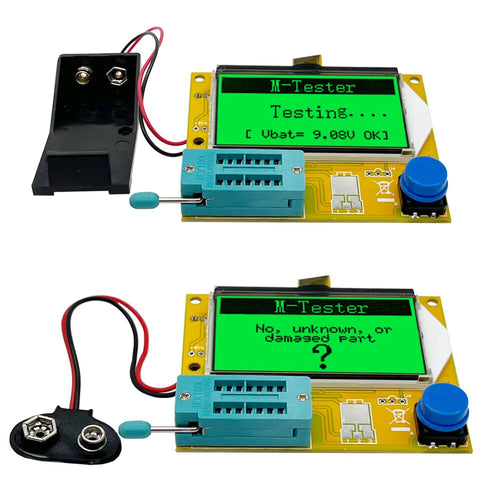

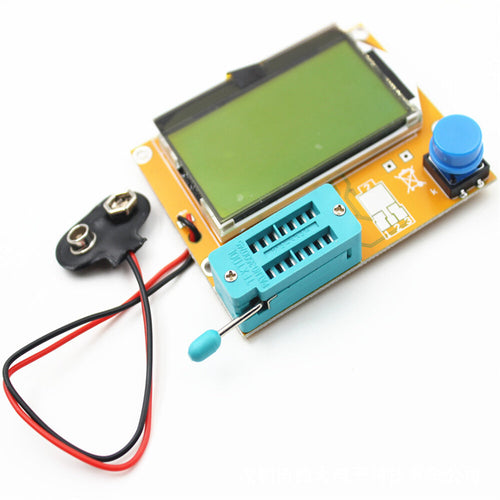

LCR-T4 Multifunctional Transistor Tester Capacitor Resistor Diode Triode Thyristor Double Diode Thyristor Tester

Features:

1. Added boot voltage detection function. Automatic detection of NPN and PNP transistors, N channel and P channel MOSFET, diodes (including dual diode), thyristor, transistors, resistors and capacitors and other components,

2. Automatically test the pin of the elements and display it on the LCD. The positive bias voltage of the emitter transistor can be determined by detecting the amplification factor and the base of the transistor, the MOSFET protection diode, etc.

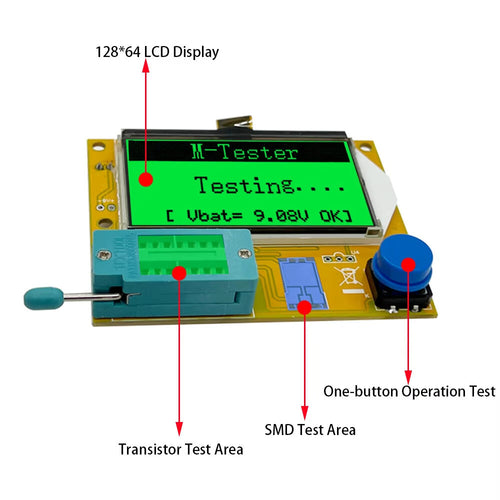

3. Measurement of gate threshold voltage and gate capacitance of MOSFET. Display using 12864 LCD LCD (128 * 64 characters).

4. Higher test speed, effective component test: in 2 seconds (except for the larger capacitor, the measurement of large capacitance also takes a long time to measure the time for 1 minutes is normal).

5. A key operation, the boot test, a key to get. Power consumption off mode: less than 20 nA. Automatic shutdown function, you can avoid unnecessary waste, save battery energy, improve the life time.

Specification:

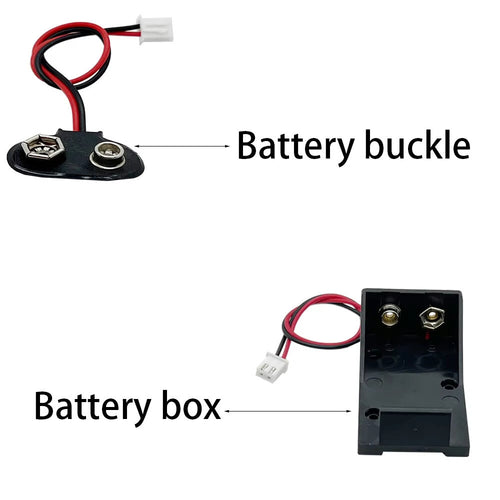

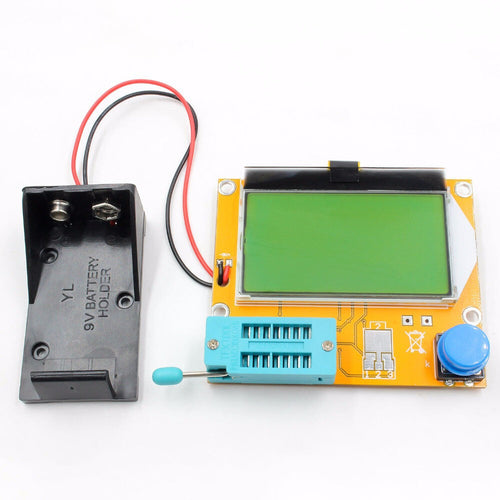

Optional Type: With Battery Box, With Battery Buckle

PCB Size: 63X71 mm

Weight: Approx. 48g

Tester Type: LCR-T4 Multifunctional Transistor Tester

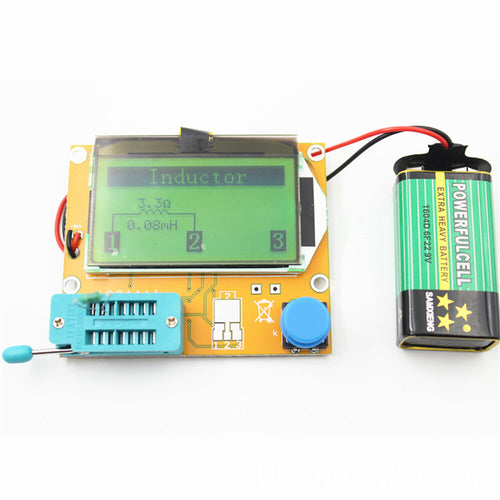

Component Types: Resistance, Capacitance, Diode, SCR, Inductor, Transistor, MOS

Display Type: LCD 12864 with Backlight (Yellow-Green)

Power Supply: 9V Stacked Battery or 8.4V Lithium Battery

(battery not included)

Package Included:

1 x LCR-T4 Multifunctional Transistor Tester(No Battery)

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
