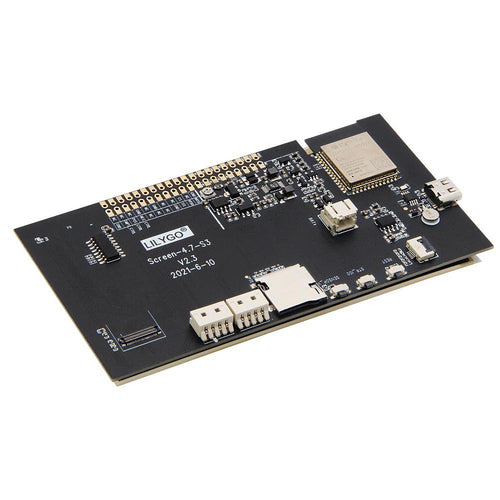

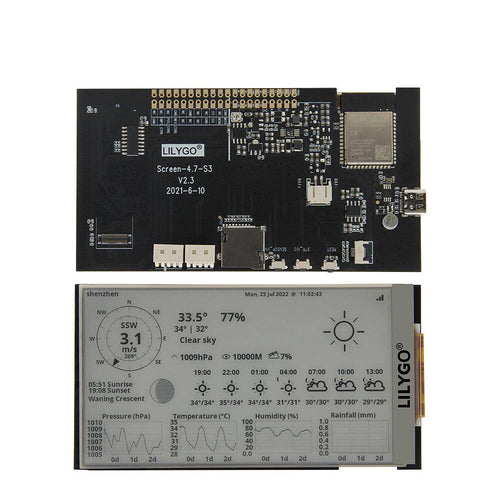

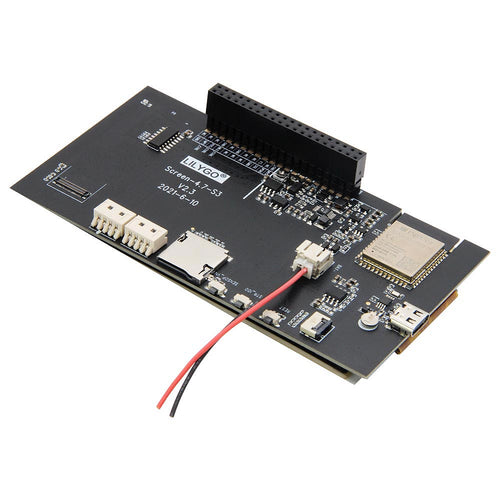

LILYGO T5 4.7 Inch E-paper V2.3 ESP32-S3 Display Screen Module Board Support TF Card Compatible Raspberry Pi

Description:

T5 4.7 Inch E-paper V2.3 is a new E-paper screen from LILYGO. It is equipped with ESP32-S3 and supports TF card.

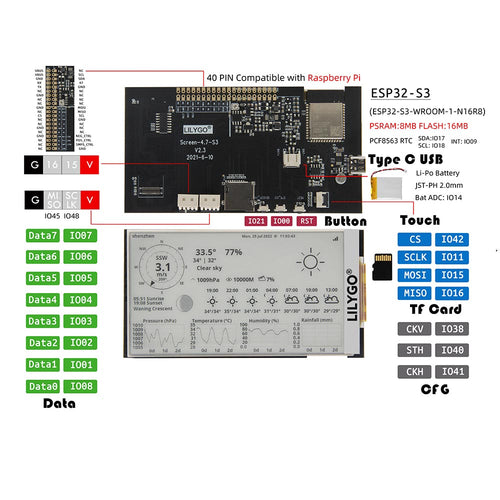

Product Specifications:

- MCU: ESP32-S3-WROOM-1-N16R8

- Communication Protocol: UART, SPI, 12C, CAN, 125, SDIO

- Wireless Protocol: Wi-Fi: 802.11 b/g/n   blutooth: V5.0+ BLE

- Board Functions: FLASH: 16MB, PSRAM: 8MB

- PCF8563 RTC Clock, battery level detection, compatible with Raspberry Pi Bus interface

【E-paper Scrren】

- Driver name: ED047TC1

- Grayscale: Support 2~16 steps

- Size: 4.7 inches

- Resolution: 540x960

- High reflectivity, ultra-wide viewing angle, ultra-low power consumption, commercial temperature range

Github:

https://github.com/Xinyuan-LilyGO/LilyGo-EPD47/tree/esp32s3

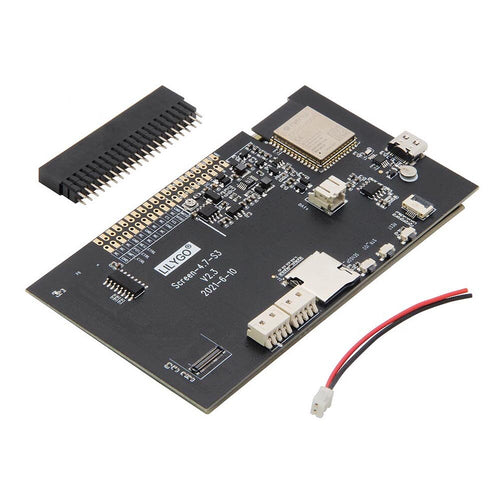

Package Include:

1×T5-4.7 Inch S3 E-paper

1×JST 2.0mm 2P

1×2.54mm Female Pin(2×20P)
