LNA 10MHZ-6GHz High Flatness Receiver Amplifier 10DB 20DB 30DB 40DB RF Drive for Drone GPS Radio FM Hackrf One Image Transmission

Features:

1.Wide Frequency Range: Spanning from 10MHz to 6GHz, this receiver amplifier is versatile and suitable for numerous applications including Beidou/GPS receivers, FM radio, radar reception, and electromagnetic compatibility systems, providing comprehensive coverage across a wide range of frequencies.

2.Adjustable Gain: Featuring selectable gain levels of 10dB, 20dB, 30dB, and 40dB, this amplifier offers flexibility in signal strength adjustment. Users can tweak the gain according to their requirements, ensuring optimal reception and performance for various applications.

3.Low Noise Performance: With a noise figure of 4-5dB, this amplifier ensures clear and high-quality signal amplification. The low noise characteristic is critical for maintaining the integrity of the received signals, making it ideal for sensitive applications such as software radio receivers and intermediate frequency signal amplification.

4.Compact and Lightweight: Measuring just 4.5 x 3 x 1.4 cm and weighing 66g, including the host and TYPE-C cable, this amplifier is both portable and convenient to integrate into existing systems. Its small form factor allows for easy installation without compromising on performance.

5.Robust Construction and Reliable Connectors: Housed in a lasting aluminum alloy shell, the amplifier is built to withstand demanding environments. The SMA female connectors and a 50-ohm input-output impedance ensure reliable and stable connections, providing consistent performance in various industrial and commercial applications.

Specifications:

Power Supply: TYPE-C line

Frequency Range: 10MHz-6GHz

Noise Coefficient: NF=4-5dB (refer to measured curve for specific frequencies)

Gain: 10dB-20dB-30dB-40dB (refer to measured curve for different frequencies)

Module Dimensions: 4.5 x 3 x 1.4 cm (excluding protruding SMA)

Weight: 66g (including host and TYPE-C cable)

Current Consumption: <100mA

P1dB: 18dBm@2GHz

Output Interface: SMA female

Input-Output Impedance: 50 ohms

Package Included:

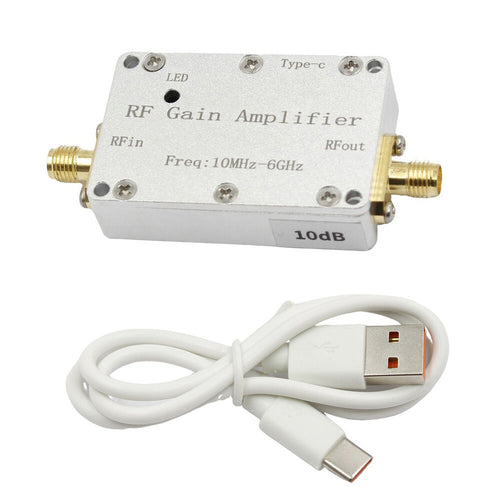

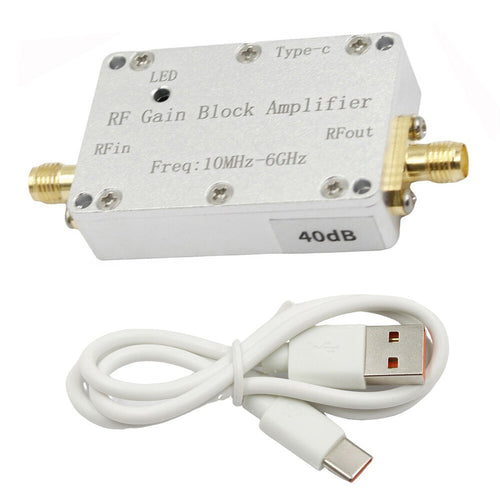

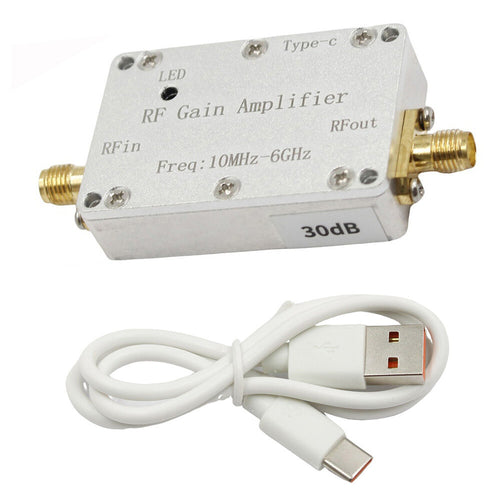

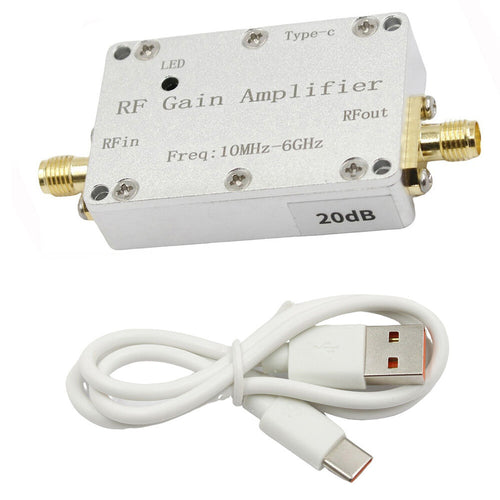

1 x Host with Aluminum Alloy Shell

1 x TYPE-C Cable
