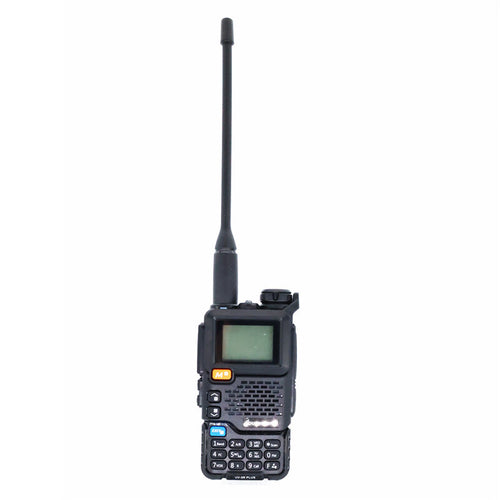

Quansheng UV-5R PLUS Walkie Talkie 5W Air Band Radio Charge UHF VHF DTMF FM Scrambler NOAA Wireless Frequency Two Way CB Radio

Features:

1.Super-long standby time

2.Wireless radio replication

3.10-group scrambler

4.Fast copy one channel

5.Extra-large lcd display

6.Act as frequency meter for some devices

7.Am/Fm aviation band receiving

8.Cross-band intercom

Specifications:

Signal channel: 200

FM radio storage: 20

Frequency stability: ± 1ppm

Size: 115mmX60mmX37.5mm

Weight: 234g

Working temperature: -20 ℃+60 ℃

Antenna impedance: 50 ohms

Modulation method: FM: 11KOF3E (12.5KHz), 16K0F3E (25KHz)

Number of NOAA channels: 10

Battery capacity: 1600mAh

Received:

Reference sensitivity:

FM (12dB SINAD) F1 (50 to 76) -121dBm F2 (108 to 135.9975) -121dBm F3 (136 to 173.9975) -123dBm F4 (174 to 349.9975) -123dBm F5 (350 to 399.9975) -123dBm F6 (400 to 469.9975) -123dBm F6 (470 to 599.9975) -121dBm

WFM (20dB SINAD) WFM (76-108) -110dBm

AM (10dB S/N) F2 (108-135.9975) -113dBm

Audio power: ≥ 0.5W

Audio distortion: ≤ 10%

Launch:

Frequency band: 144 to 146MHz, 430 to 440MHz

Transmission power: 4W

Emission current: ≤ 1.5A

Maximum frequency deviation: ≤ 5KHz (25KHz), ≤ 2.5KHz (12.5KHz)

Modulation distortion: ≤ 5%

Stray component: ≤ 7.5uW

Temporary power: 70dB (25KHz), 60dB (12.5KHz)

Residual modulation: 40dB

Package include:

Walkie talkie*1

Battery*1

Antenna*1

Belt clip*1

Lanyard*1

Desk charger*1(EU)

User manual*1
