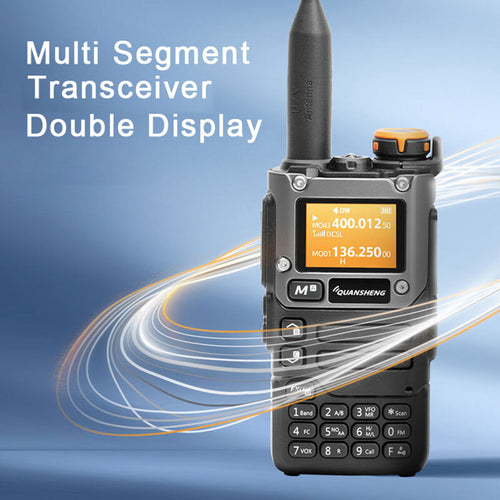

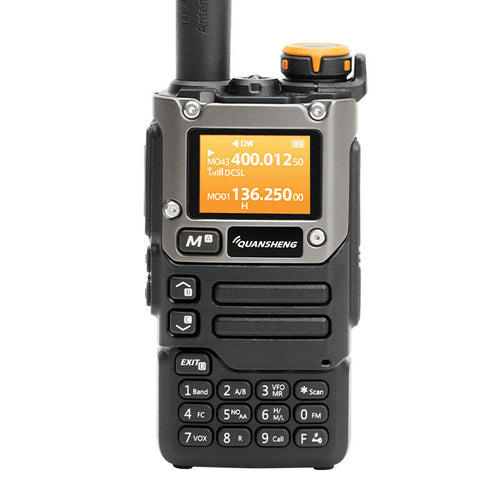

Quansheng UV-K58 5W Walkie Talkie Air Band Radio UHF VHF DTMF FM Scrambler NOAA Tyep-C Charging Wireless Frequency Two-Way Handheld Portable Radio

Features:

- Wide range of channels: The walkie talkie offers 200 channels, providing a diverse range of communication options.

- FM storage: Allows storage of up to 20 FM radio stations for entertainment purposes.

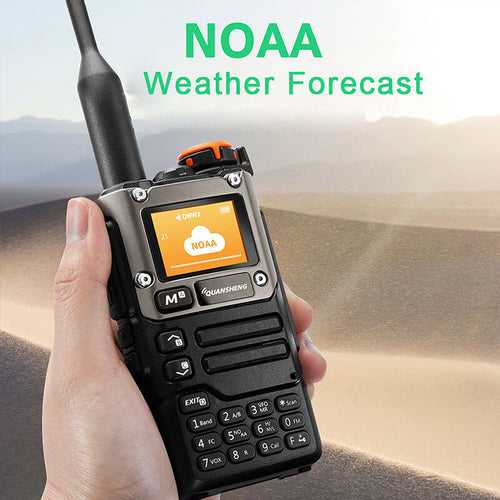

- NOAA channels: Provides access to 10 NOAA channels for receiving weather updates and alerts.

- Frequency stability: With a frequency stability of +1ppm, the walkie talkie maintains accurate and reliable communication.

Compact and lightweight: The walkie talkie measures 115mm x 60mm x 37.5mm in size and weighs only 234g, ensuring portability and ease of use.

- Wide operating voltage: It operates on a 7.4V voltage, offering flexibility in power sources.

- Wide temperature range: Designed to withstand temperatures ranging from -20°C to +60°C, making it suitable for various environments.

- High resistance: The walkie talkie has a resistance rating of 500, ensuring durability and resistance to wear and tear.

- High transmit power: It can transmit signals at a power level of ≤5W, enabling clear and long-range communication.

- Low transmit current: The walkie talkie consumes ≤1.5A of current during transmission, conserving battery life.

- Enhanced sensitivity:

FM sensitivity: Provides excellent reception for different frequency ranges, ensuring clear audio communication.

WFM sensitivity: Offers reliable reception for wide frequency modulation (WFM) signals.

AM sensitivity: Allows for effective reception of amplitude modulation (AM) signals.

- High-quality audio: The walkie talkie delivers audio power of ≥0.5W with ≤10% distortion, ensuring clear and intelligible sound.

- Wide frequency band: It operates within the frequency bands of 144-148MHz and 430-440MHz

Specifications:

Channels: 200

FM Storage: 20

NOAA Channels: 10

Frequency Stability: +1ppm

Size: 115mm x 60mm x 37.5mm

Weight: 234g

Voltage: 7.4V

Temperature Range: -20°C to +60°C

Resistance: 500

Transmit Power: ≤5W

Transmit Current: ≤1.5A

Sensitivity:

FM (12dB SINAD):

F1 (50-76MHz): -121dBm

F2 (108-135.9975MHz): -121dBm

F3 (136-173.9975MHz): -123dBm

F4 (174-349.9975MHz): -123dBm

F5 (349-399.9975MHz): -123dBm

F6 (400-469.9975MHz): -123dBm

F7 (470-599.9975MHz): -121dBm

WFM (76-108MHz, 20dB SINAD): -110dBm

AM (10dB S/N): -113dBm

Audio Power: ≥0.5W

Audio Distortion: ≤10%

Frequency Band: 144-148MHz/430-440MHz

Output Power: ≤5W

Output Current: ≤1.5A

Frequency Offsset: ≤5KHz (25KHz) / ≤2.5KHz (12.5KHz)

Distortion: ≤5%

Spurious: -7.5uW

Imminent Power: 70dB (25KHz) / 60dB (12.5KHz)

Residual: 40dB

Package Include:

1×

Quansheng UV-K58

Walkies Talkie

1× Battery

1× Back Clip

1× Lanyard

1× Antenna

1× Charging Dock

1× Manual
