RF Adapter Metal Straight BNC Plug to BNC Jack Free Hanging 75Ω

Features:

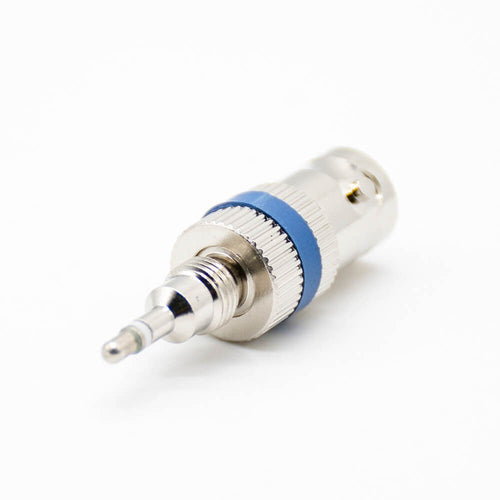

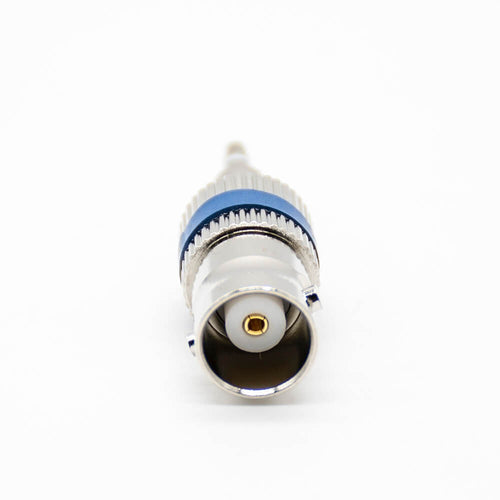

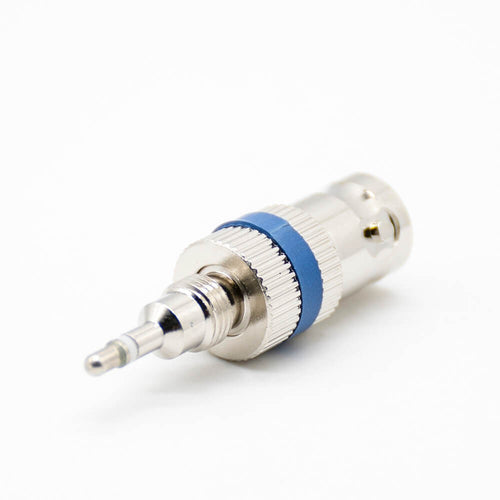

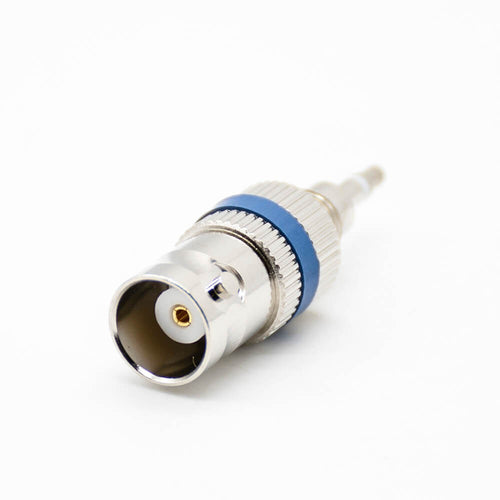

• RF Adapter,BNC to 3.5mm connector,female to male,Straight,Nickel Plated
• Excellent electrical performance up to 18GHz with low reflection;
• Thread type coupling mechanism ensure small loss and high security in compact design;
• High Quality with 30 days 100% Money back;
• From the OEM Original Factory, same quality with much better price.

Appliance:

• Aerospace and Defense: Hand-held field Device and Instrumentation
• Technology: Instrumentation
• Commercial Vehicle: Bluetooth and GPS
• Telecommunications: Wireless Base Stations, Cellular Mobile System
• Data/Communications:Wifi, WiMAX
• Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Electrical Characteristics

• Impedance£º50 ohm
• Frequency Range:?0~18 GHz
• VSWR:?Straight type ¨Q 1.3max / R/A type ¨Q 1.5max
• Dielectric Withstanding Voltage:1000 V rms?min for RG142, RG405
• 750 V rms min. for RG316, RG402
• 500v rms min. for RG178
• Working Voltage:?500 V rms max. for RG142, RG405
• 375 V rms max. for RG316, RG402
• 170 V rms max. for RG178
• Center Contact Resistance?¨Q 6.0 m¦¸ ?(Milliohms max.)
• Outer Contact Resistance ¨Q 2.0 m¦¸ ?(Milliohms max.)
• Insultation Resistance ¨R 5 x 103 m¦¸ (Megohms min.)

Mechanical Characteristics

• Coupling: 1/4-36 thread
• Contact Retention: 15 in-lbs min.
• Coupling nut torque: 30 in-lbs. min.
• Durability(mating) ¨R 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

• Temprature Range: -65¡ãC ~ +165¡ãC
• Vibration: MIL-STD-202 Method204
• Corrosion resistance: MIL-STD-202 Method 101

Material:

?
