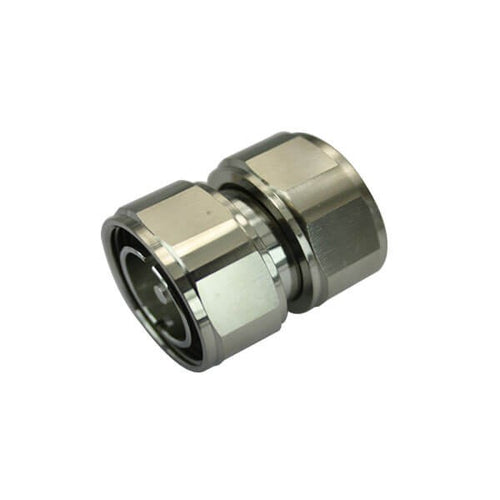

RF Adapter Metal Straight DIN 7/16 Plug to DIN 7/16 Plug Free Hanging 50Ω

• Adaptor,DIN7/16 Connector;
• Designed to minimize signal distortion from inter modulation;
• Screw on coupling ensure high durability and allow toolless application;
• Excellent performance up to 5.2GHz frequency.
• High Quality with 30 days 100% Money back;
• From the OEM Original Factory, same quality with much better price.

Main Application of DIN7/16 Connectors:

Consumer Electronic: Statellite Receivers, Statellite Radio
Aerospace and Defense: High-power communication devices
Commercial Vehicle: Bluetooth
Telecommunications: Antenna, Base Station
Industrial: Antenna Mounts, Machine to Machine Communications

Electrical Characteristics

• Impedance£º50 ohm
• Frequency Range:?0~7 GHz
• VSWR: 1.3 max
• Dielectric Withstanding Voltage: 4000?V rms?
• Voltage Rating: ¨Q2700 V rms
• Insultation Resistance?¨R 5000?m¦¸

Mechanical Characteristics

• Coupling: M29 x 1.5 Thread
• Durability(mating) ¨R 500 cycles

Environmental Characteristics

• Environmental Characteristics:?-40¡ãC ~ +155¡ãC?
