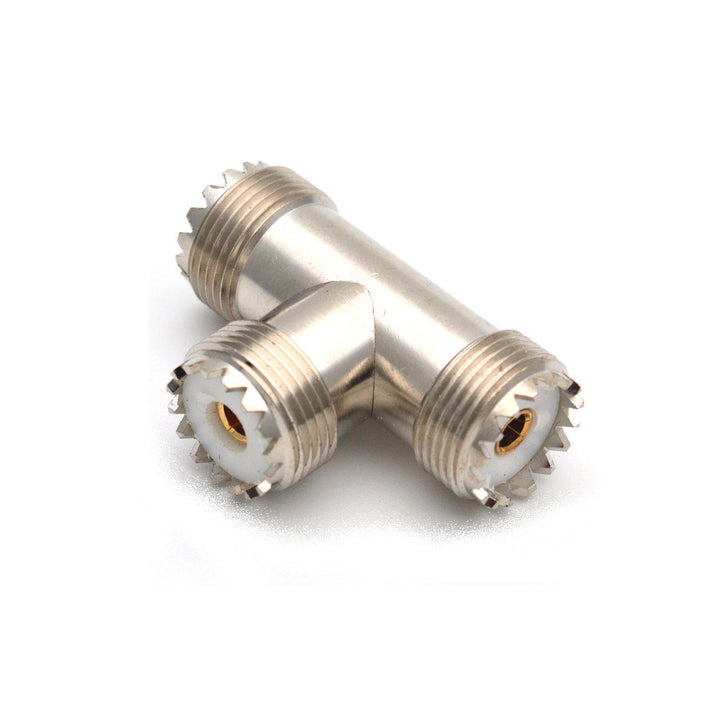

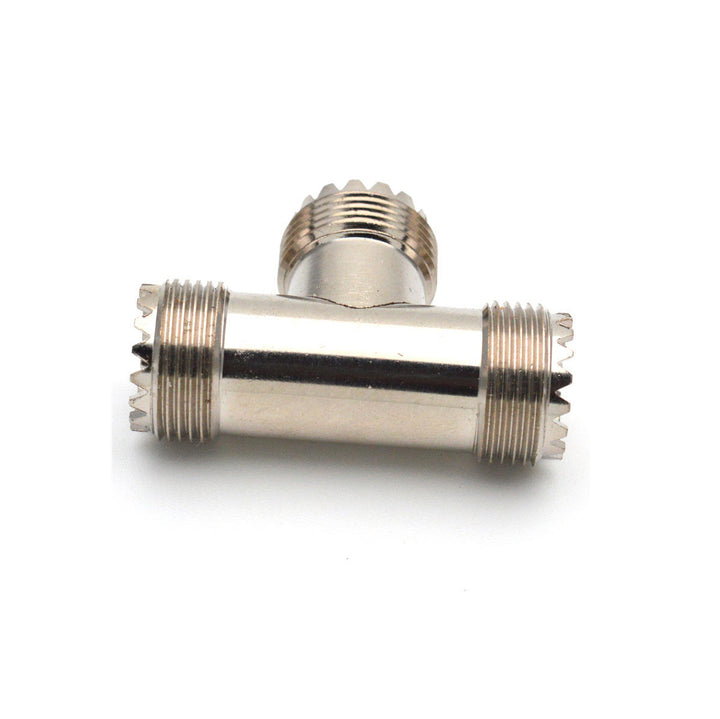

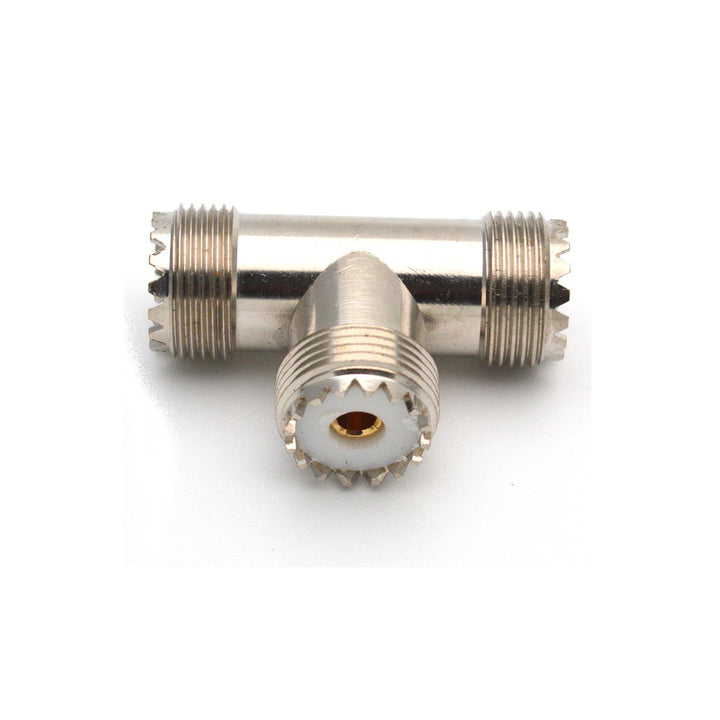

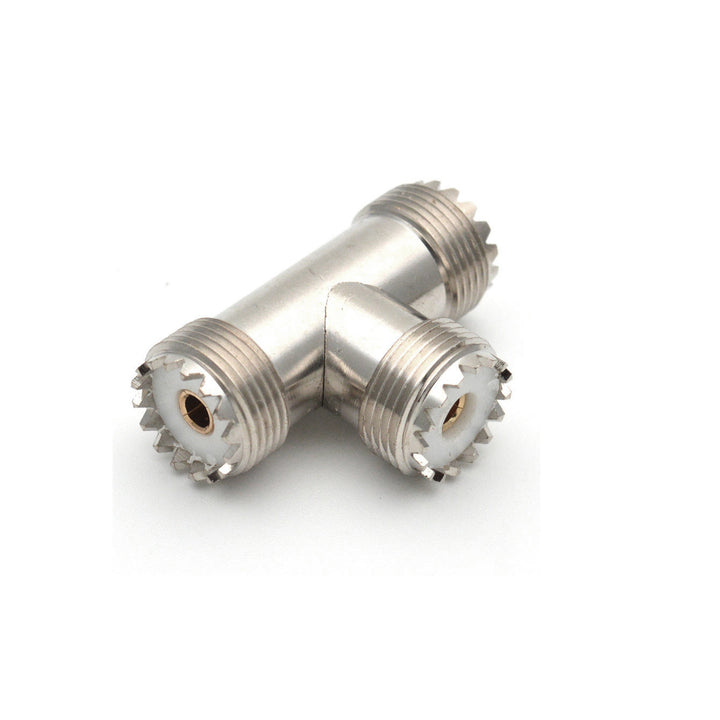

RF Adapter Metal T Type UHF Jack to UHF Jack Free Hanging 50 Ohm

Features:

• UHF Connector,Straight,Female to Female,Panel Mount,Solder Cup,Crimp,50 Ohm,Nickel Plating;
• Designed for low frequency systems from 0.6-300MHz;
• Threaded coupling mechanism is easy for assembly with high durability;
• High Quality with 30 days 100% Money back;
• From the OEM Original Factory, same quality with much better price.

Applications:

• Antennas, Military, Public Address Systems and Low-frequency applications

Electrical Characteristics

• Impedance:Non-constant
• Frequency Range: 0~300MHz
• voltage Rating: 500 volts peak

Mechanical Characteristics

• Coupling: 5/8-24 threaded coupling
• Cable Affixment: Braid Solder, Set screw, clamp and crimp
• Durability(mating) >= 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

• Temprature Range:
  Mica-filled phenolic insulators: -55degC ~ +149degC
  Copolymer of styrene and polystyrene: -55degC ~ +85degC
  TFE insulators: -65degC ~ +165degC
• Weatherproof: Except as noted, all UHF series are non-weatherproof

Material:

• Material: nickel-plated copper, gold-plated
• Conductor: Gold-plated copper
• Impedance: 50 ohms
