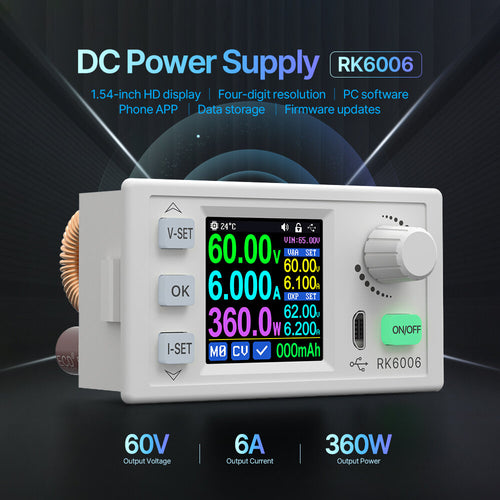

RK6006/RK6006-BT 60V 6A 4 Digit Communication 360W Adjustable Digital DC to DC Step Down Voltage Bench Power Supply Buck Converter

RK6006/RK6006-BT 60V 6A 4 Digit Communication 360W Adjustable Digital DC to DC Step Down Voltage Bench Power Supply Buck Converter

$31.99

Hassle-Free Warranty
30-Day Money-Back Guarantee
Fast, Free Shipping
Lifetime Customer Support

Type: Power Supply Module

SKU: EB-1992304

Availability : In Stock Pre order Out of stock

Categories: Power Supply Module

Description

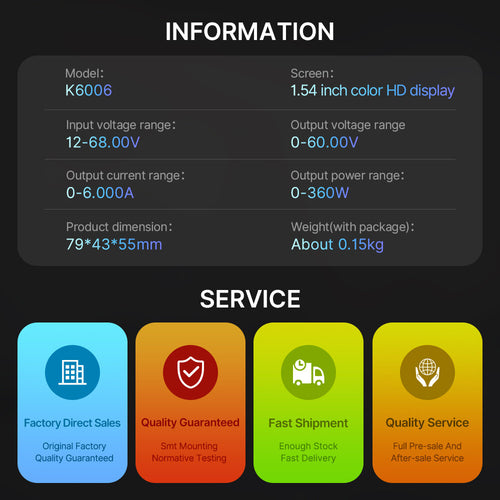

Specifications:

Model

RK6006/RK6006-BT

Input voltage range

12-68.00V

Output voltage range

0-60.00V

Output current range

0-6.000A

Output power range

0-360W

Input voltage measurement resolution

0.01V

Output voltagesetting measurement resolution

0.01V

Output current setting measurement resolution

0.001A

Input voltage measurement accuracy

±(1%+5 digits)

Output voltage accuracy between setting and measurement

±(0.3%+3 digits)

Output currentaccuracybetween setting and measurement

±(0.5%+5 digits)

Output ripple typical

100mV VPP

Working temperature range

-10℃~40℃

External sensor Temperature range

External sensor Temperature accuracy

Constant voltage moderesponse time

2ms（0.1A-5A Load）

Constant voltage mode load regulation

±(0.1%+2 digits)

Constant current mode load regulation

±(0.1%+3 digits)

Capacity measurement range

0-9999.99Ah

Energy measurement range

0-9999.99Wh

Capacity and energy statistical error

Buck working mode

（input voltage÷1.1）-1②

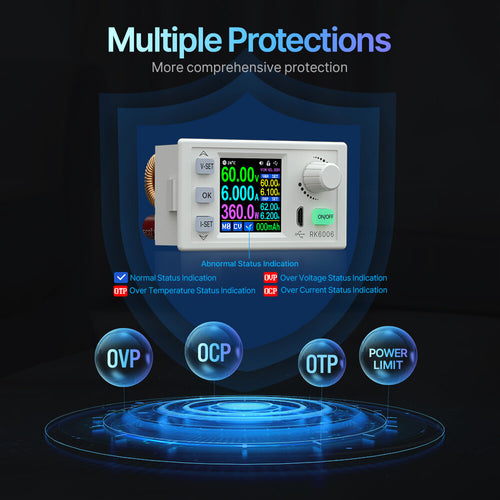

Over temperature protection

System temperature>80℃

Screen brightness setting

0-5(6 level in total)

Screen

1.54 inch 240*240 color HD display

Cooling fan start condition

Output current>4Aor System temperature>45

Cooling fan shut down condition

Output current<3.9Aand System temperature<45

Weight(with package)

About 0.15kg

Product dimension

79 x 43 x 54mm

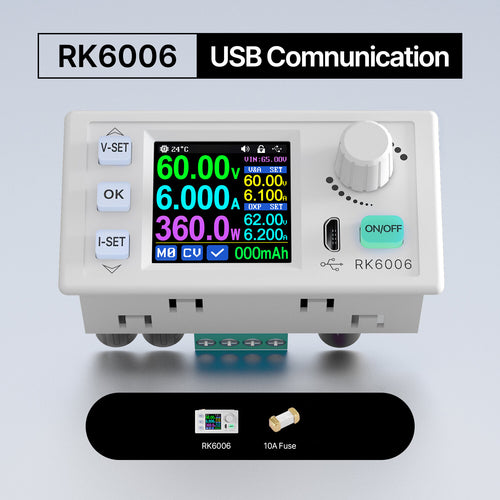

Support USB communication

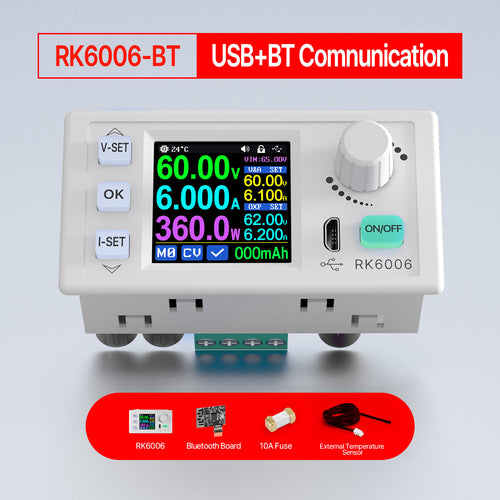

Support Bluetooth communication:

Only RK6006-BT supports

① Ripple measurement method: noise and ripple are measured at X1 range, AC coupling, 20MHz of bandwidth on your oscilloscope, with a 0.1uF parallel capacitor at the output terminals

for example: input voltage is 24V

the max output voltage is 20.8V

Features:

RK6006 supports firmware upgrade, so that new functions can be added, and the product will be more powerful

More convenient, PC, mobile phone, APP control multiple operation

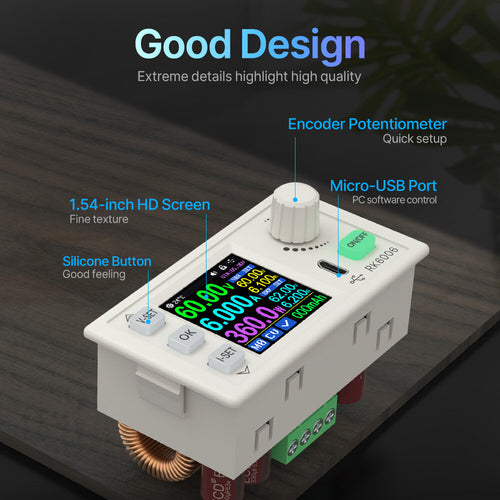

1.54-inch LCD display screen, larger screen, 240*240P higher display resolution

Higher Range, voltage/current higher output. Output voltage 060.00V, output current 0-6.000A, 4-digit display

360°Rotating Screen. Maintain the best viewing angle at all times, meet any angle to read measurement data

Note:

1. RK6006 manual, PC software, APP download
