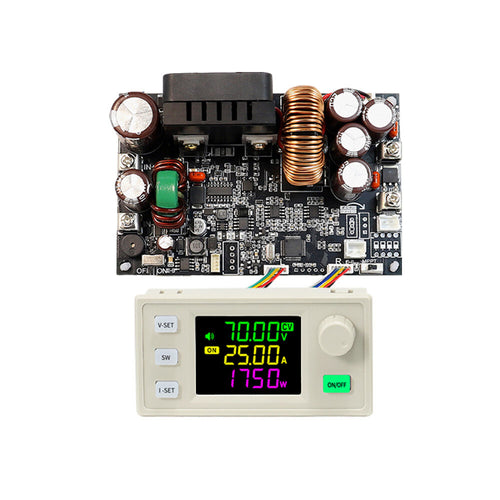

Sinilink XY7025 DC Buck Adjustable Power Supply Module 70V 25A 1750W Constant Voltage Current LCD Display Solar Charging Module

Features:

1.Advanced Voltage and Current Control:

Offers precise control with a voltage accuracy of ±0.5%+1 word and current accuracy of ±0.5%+3 words. Ideal for applications requiring high levels of accuracy and reliability, this power supply ensures that your devices receive the exact voltage and current specifications needed.

2.Highly Efficient Power Conversion:

With an efficiency of about 95%, the XY7025 effectively minimizes energy loss and heat generation, making it perfect for extended use. This efficiency translates into cost savings and better overall performance in energy-demanding environments.

3.Comprehensive Protection Mechanisms:

Equipped with adjustable protection features for under-voltage, over-voltage, over-current, over-power, over-temperature, over-capacity, and over-energy, this power supply safeguards your devices against potential damage due to unforeseen electrical issues.

4.Versatile Input and Output Range:

Supports an input voltage range of 12V to 85V and an output voltage range of 0V to 70V, along with a current output of up to 25A. This wide range of voltage and current settings makes the XY7025 suitable for a variety of applications, from laboratory testing to industrial use.

5.User-Friendly Interface:

Features an over 1.8-inch LCD screen with a clear 38*29mm viewable area, providing easy monitoring of voltage, current, and power settings. The interface is designed for intuitive use, allowing for quick adjustments and precise control without the complexity.

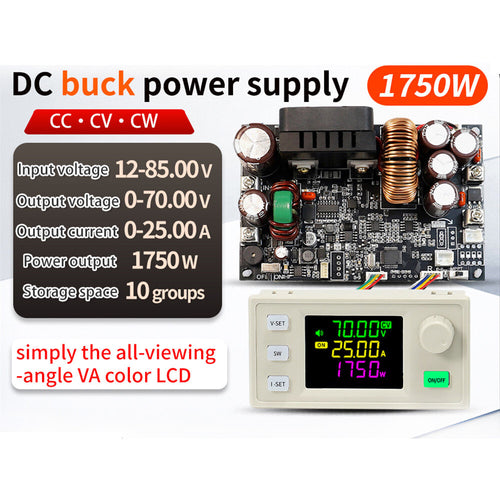

Specifications:

>>>Manual: Click here to open<<<

Product name

DC buck- power supply

Model

XY7025

Input voltage

12.00~85.00V

Output voltage

0-70.00V

Output current

0-25.00A

Accuracy of voltage

±0.5%+1 word

Power output

1750W

Accuracy of current

±0.5%+3 word

Resolution of voltage

0.01V

Resolution of current

00.01A

Storage data group

10 groups

Soft start

YES

Screen size

Over 1.8-inch LCD with a viewable area of 38*29mm

Output ripple typical value

vpp-150mv

MPPT function

Support MPPT solar charging

Buzzer

YES

Efficiency of conversion

About

95%

Number of buttons

5

Bare board size

Screen instrument

111*72*45mm

86*45*50mm

Bare board weight

with packaging

203g

230g

Bare board package

Product Package

142*107*46mm

172*95*60mm

Product weight

with packaging

250g

310g

Protection mechanism

under-voltage(LVP)

Adjustable 10-95V, default 10V

over-voltage(OVP)

Adjustable from 0 to 72V, default is 72V

over-current(OCP)

Adjustable from 0 to 27A, default 27A

over-power(OPP)

Adjustable from 0 to 2000W, default is 1800W

over-temp(OTP)

Adjustable from 0 tollO ℃, default is 95 ℃

over-time out(OHP)

1 minute - 99 hours 59 minutes, off by default

over-capacity(OAH)

Adjustable from 0 to 9999Ah, disabled by default

over-energy(OPH)

Adjustable from 0 to 4200KWh, off by default

Precautions:

1. The input cannot be connected to AC power, nor can it be connected to 220V mains power.

2. The maximum input voltage must not exceed 90V. It is recommended to use within 85V, and the positive and negative terminals must not be connected reversely.

3. The output has no reverse current protection. When connecting the battery, ensure that the power supply's output voltage is always higher than the battery voltage. Alternatively, a diode can be connected in series with the positive output terminal to allow one-way conduction, preventing reverse current from the battery voltage from damagingthe power supply.

4. When connecting the battery to the output terminal, pay attention not to connect the positive and negative terminals reversely.

5. This product is a DC buck power supply. The maximum output voltage = input voltage * 0.945.

Package Included:

Package #1:

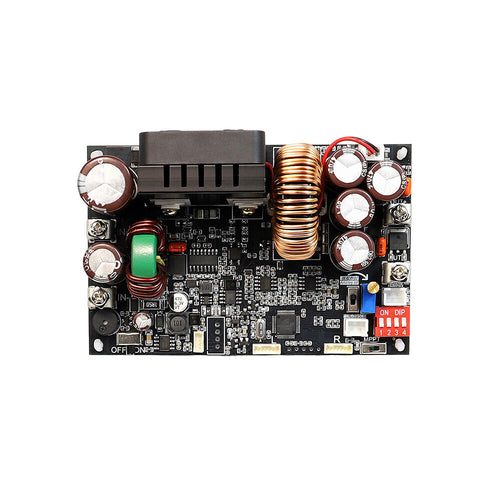

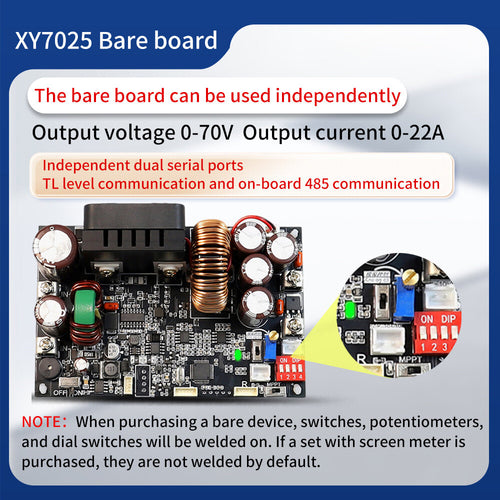

1 x Sinilink XY7025 DC Buck Power Supply Module(Only Board)

or

Package #2:

1 x Sinilink XY7025 DC Buck Power Supply +LCD Module (Full Kit)
