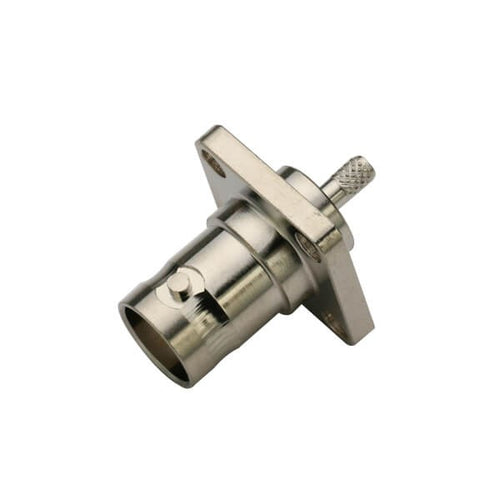

Video Connector BNC 4Holes Square Flange Jack for RG316

$3.80

Impedance: 50 Ohm

50 Ohm
75 Ohm
Add to Wishlist
  • Hassle-Free Warranty
  • 30-Day Money-Back Guarantee
  • Fast, Free Shipping
  • Lifetime Customer Support

amazon paymentsamerican expressapple paybitcoindankortdiners clubdiscoverdogecoindwollaforbrugsforeningeninteracgoogle payjcbklarnaklarna-pay-laterlitecoinmaestromasterpaypalshopify paysofortvisa
Ask a Question
Type: connectors
SKU: EB-001-0100
Availability : In Stock Pre order Out of stock
Categories: RF series,BNC
Description
  • PCB Mount, jack/female, Straight/180deg,50 Ohm, RG316,Flange
  • Compact Design for less installation space required;
  • Easy quick connect and disconnect coupling;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of BNC Connectors:

Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Technology Equipment, Instrumentation, CCTV, CATV, HDTV, etc.


bnc interface.jpg

Electrical Characteristics

  • Impedance:50 ohm
  • Frequency Range: 0~4 GHz
  • VSWR: Straight type <= 1.22/3GHz / R/A type <= 1.30/3GHz
  • Dielectric Withstanding Voltage: 1500 V rms
  • Working Voltage: 500 V rms
  • Center Contact Resistance <= 1.5 m Ohm (Milliohms max.)
  • Outer Contact Resistance <= 2.0 m Ohm (Milliohms max.)
  • Insultation Resistance >=5 × 10³ m Ohm (Milliohms min.)

Mechanical Characteristics

  • Coupling: bayonet
  • Contact Retention: 6 lbs min.
  • Mating Durability: >=500 cycles

Environmental Characteristics

  • Environmental Characteristics: Teflon -55oC~+155oC / POM -40oC~+60oC
  • Coupling Nut Retention: 100 lbs. min.
  • Vibration: MIL-STD-202 Method 204
  • Corrosion Resistance: MIL-STD-202 Method 101

Material:

Part Material Finish
Body Brass Nickel (Ni)
Center Contact Pin Be-CU Gold
Insulator PTFE ------
