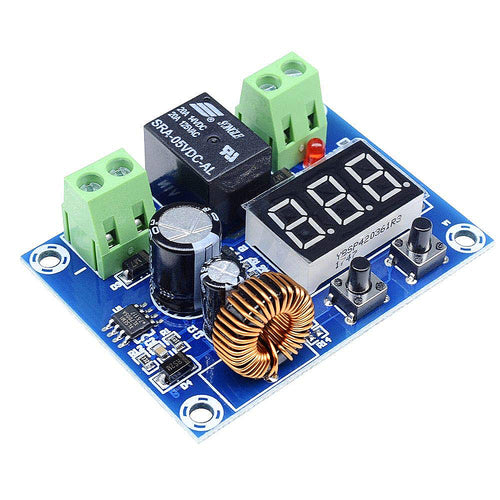

XH-M609 DC Voltage Protection Module Lithium Battery Undervoltage Deficit Low Power Disconnect Protection Module Board DC Output 6-60V

Features:

1.

ST processing chip, The core chip manufactured by STMicroelectronics combines stable and reliable performance.

2. European terminal, European design standard, using environmentally friendly materials, the upper and lower bites are more firm, and the electrical performance is good.

3. Highlight digital tube, High-brightness three-digit digital tube, display accuracy 0.1, to avoid the black part of the digital tube accounting for soluble or corrosive liquid.

Settings:

Set below 12.5V to stop, above 14V to start:

Set the protection value: press "+" once to display the protection value, double-click "+", the decimal point flashes, then press "+, -" to change the value to 12.5. If there is no operation for 3 seconds, the module will automatically save and exit the setting mode. Set the hysteresis value: press "-" once to display the hysteresis value, double-click "-", the decimal point flashes, at this time, press "+, -" to change the value to 1.5. If there is no operation for 3 seconds, the module will automatically save and exit the setting mode.

Set below 10V to stop, above 15.5V to start:

Set the protection value: press "+" once to display the protection value, double-click "+", the decimal point flashes, at this time, press "+, -" to change the value to 10.0. If there is no operation for 3 seconds, the module will automatically save and exit the setting mode. Set the hysteresis value: press "-" once to display the hysteresis value, double-click "-", the decimal point flashes, at this time, press "+, -" to change the value to 5.5. If there is no operation for 3 seconds, the module will automatically save and exit the setting mode.

Reset:

When the power is off, press and hold the two buttons at the same time, and then turn on the power. At this time, the screen displays "888", indicating that the factory reset is successful.

Factory setting protection value: 12V, hysteresis value: 2V

Specifications:

Product name: Battery overdischarge protection module

Model: XH-M609

Power supply voltage: DC 6-60V

Output voltage: DC 6-60V

Control precision: 0.1v

Power consumption: <1.5W

Scope of application: Various accumulators/lithium batteries

Net weight: 28g

Size: 57×42×19mm

Package Include:

1×

Voltage Protection Module
