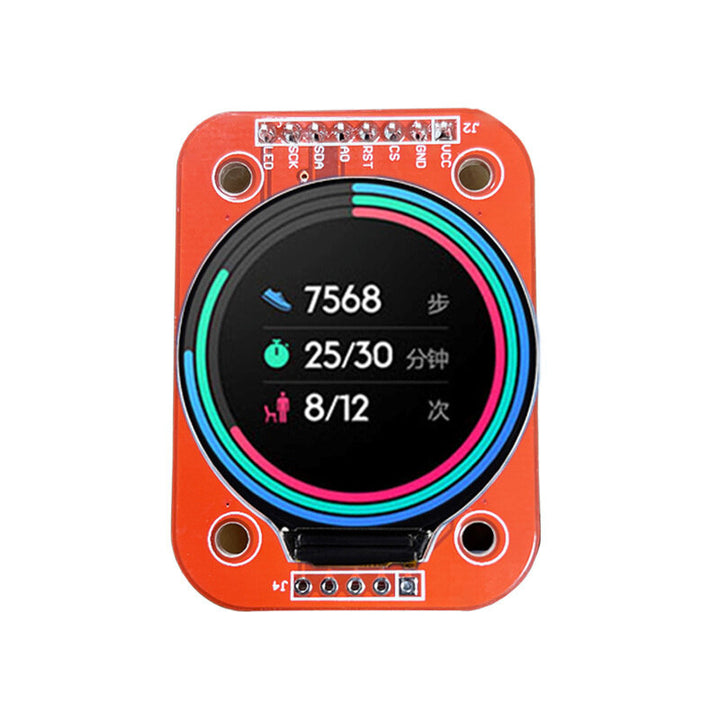

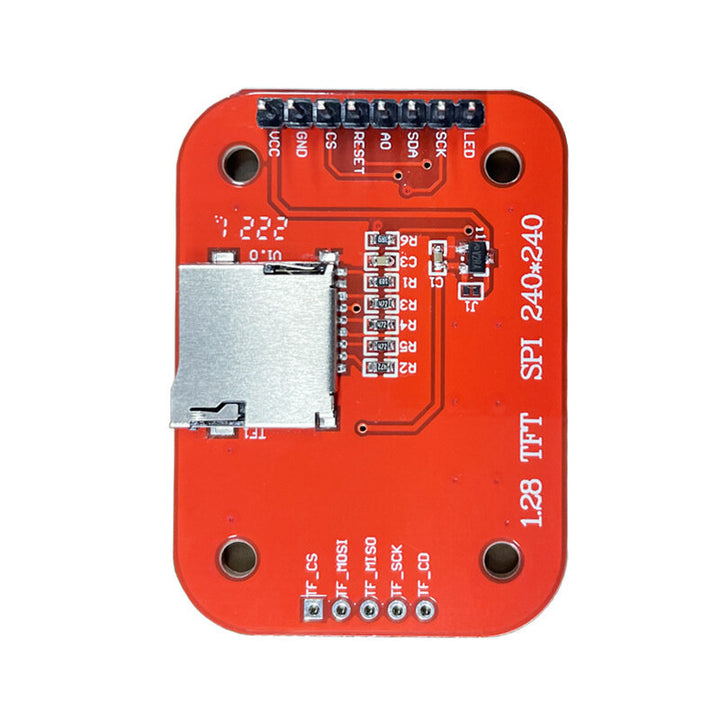

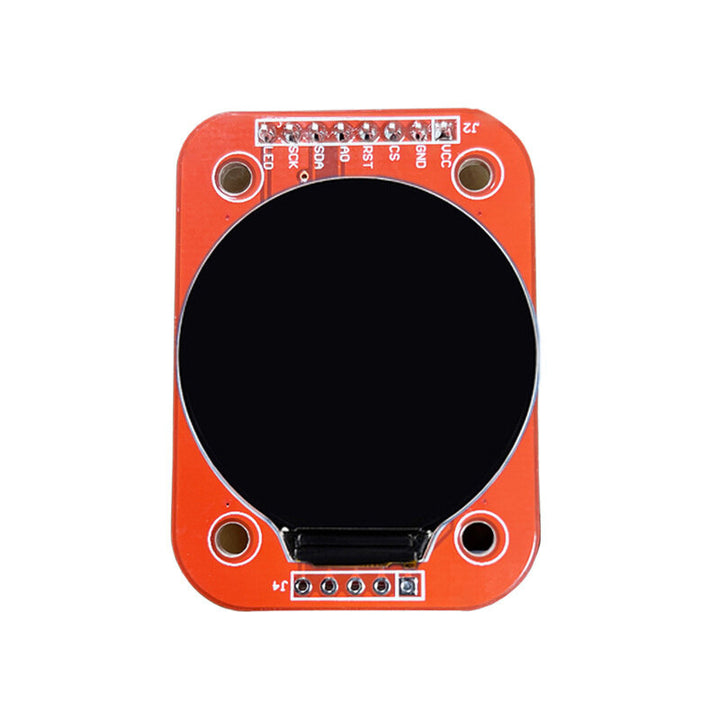

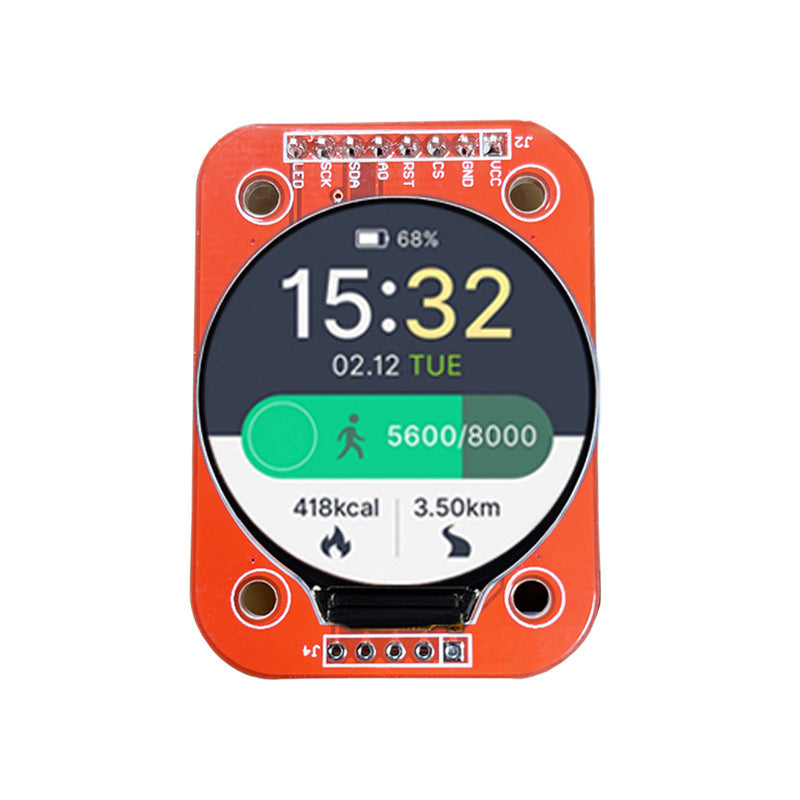

1.28 inch TFT LCD Display Module Round RGB 240x240 GC9A01 Driver 4 Wire SPI Interface IPS Screen

Features:

1. The display module utilizes a GC9A01 driver for efficient performances.

2. The module offers a high-resolution, offering vivid graphics with a pixel size of 0.135(H)*0.135(V).

3. Comfortable viewing from any angle is ensured by the IPS Round and ALL View feature.

4. The module has a maximum brightness of up to 350cd/m, comfortable for the eye.

5. The display is equipped with 2 White LED backlights in parallel which provide additional clarity for visuals.

Specification:

Glass panel

1.28 inch

Dimensions

35.6(H)*38.1(V)*1.55(D)mm

Display size

φ32.4mm

Resolution

240 RGB*240

Pixel size

0.135(H)*0.135(V)

Interface mode

4-wire SPI

Perspective

ALL View

Driver chip

GC9A01

Backlight

2 white LED Parallel

Pixel arrangement

RGB Vertical stripe

LCM brightness

350cd/

㎡

Display color

65K

Display mode

Normally black

Input voltage

3.0±0.2V

Weight

3.2g

Operating temperature

-20~+70°C

Storage temperature

-30~+80°C

Pin definition:

Pin

Pin definition

Function Description

1

GND

Power Ground

2

LEDK

LED Cathode

3

LEDA

LED Anode

4

VDD

Power supply for Analog

5

GND

Power Ground

6

GND

Power Ground

7

D/C

Display data/command selection pin in 4-line serial interface

8

/cs

Chip selection pin;Low enable,high disable.

9

SCL

This pin is used to be serial interface clock

10

SDA

SPI interface input/output pin,the data is latched on the rising edge of the SCL signal.

11

RESET

This signal will reset the device and it must be applied to properly initialize the chip.Signal is active low.

12

GND

Power Ground

Package Includes:

1* 1.28 Inch TFT LCD Display Module
