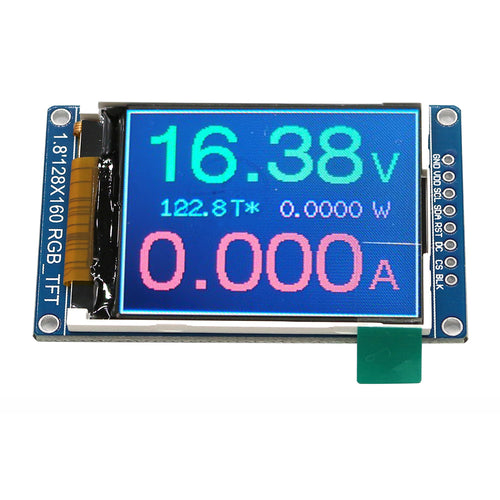

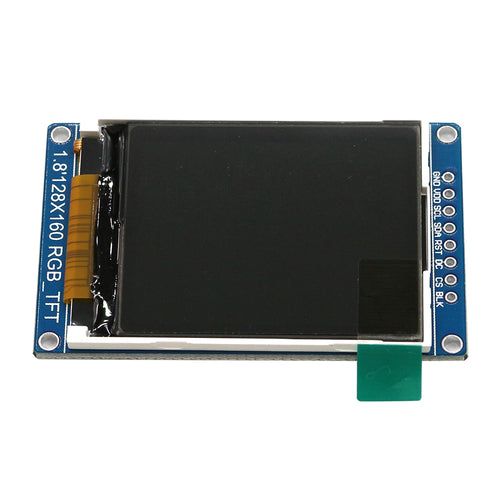

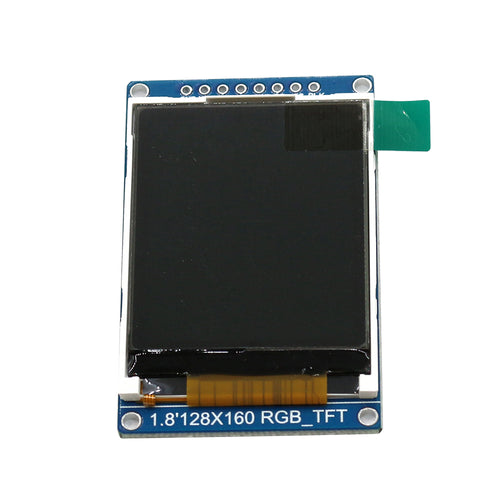

1.44/1.8 inch 128*160 128*128 Display Screen Module 8 Pin ST7735 RGB TFT LCD Screen 128x128 128x160 SPI for Arduino STM32 DIY Kit

Specification:

Size: 1.8 inch

Display Mode: a-TFT

Display Format Graphic: 128RGB*160 Dot-matrix

Input Data: SPI interface

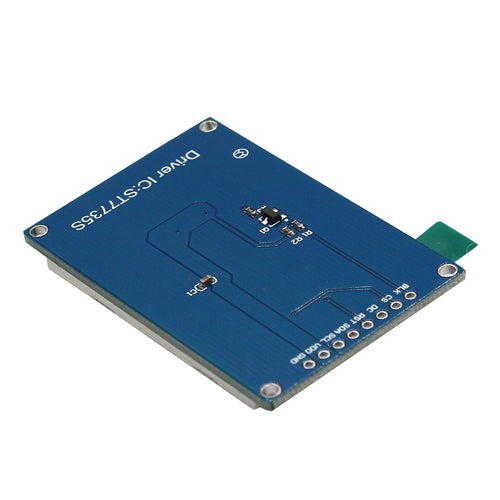

Drive IC: ST7735S

Dimensional outline: 35(W)*56 (H)*3.45+/-0.1(T)mm

Resolution: 128RGB*160 Dots

LCD Active area: 28.03 (W)*35.04 (H)

Pixel size: 0.219(W)*0.219(H)

Viewing Direction: 12 o'clock

Operating Temperature: -20～70°C

Pin Descriptions:

1 GND Ground

2 VCC Power 3.3V

3 SCL Serial clock pin.

4 SDA Serial data input

5 RES LCM Reset pin

This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation.

6 DC Data/Command Control

7 CS Chip Select

8 BLK Backlight control pin

Package Include:

1×

OLED Display Screen Module
