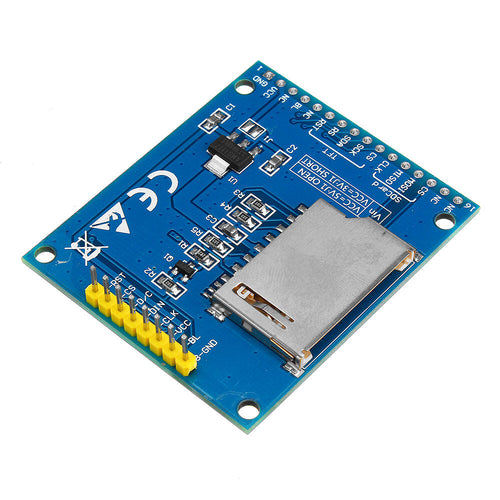

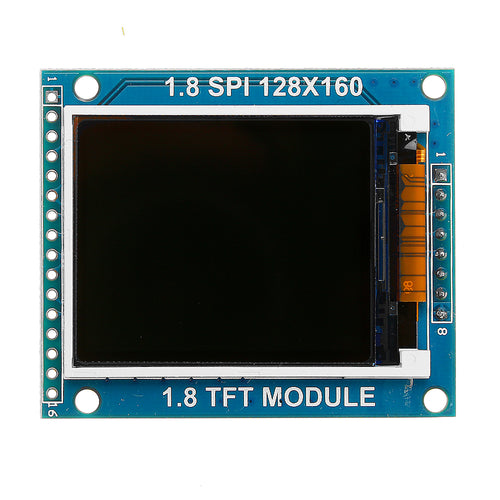

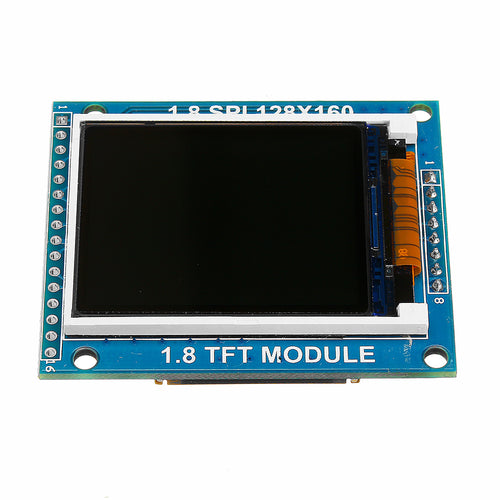

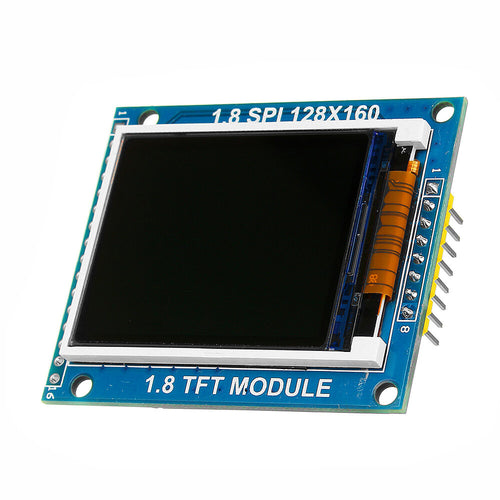

1.8 Inch 128X160 ILI9163/ST7735 TFT LCD Module With PCB Baseboard SPI Serial Port

Features:

- Module with regulator IC supports 3.2V/5V power supply

- With SD card holder, you can do experiments like digital photo frame

- The module reserves the Nokia3310/5110 interface, supports the 1602 interface, and plugs in & out!

- IO for streamlined wiring

- LCD resolution: 128X160, driver IC: ILI9163/ST7735

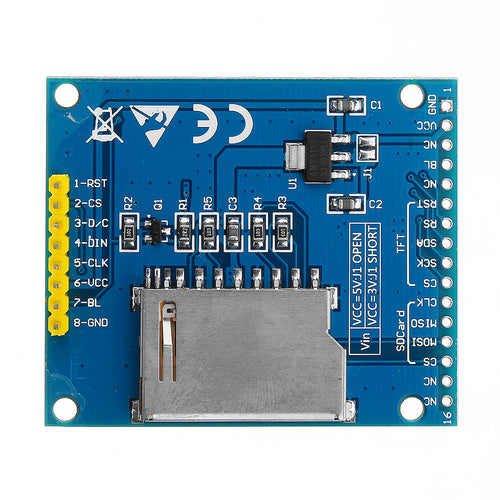

Wiring:

IO for streamlined wiring: (only 3 IOs after optimization)

1. RST-- directly connected to the microcontroller reset signal terminal, this IO can save

2. D/C--connected to low level, the chip selects long-term effective, this IO can save

3. D/C--connected to IO control register selection

4. DIN--connected to IO control data transmission

5. CLK--connected to IO control SPI bus

6. BL--Connected to the high level 3.3V backlight is always bright, then this IO can save

IO for standard wiring: (6 IO)

1. RST--connected to IO control LCD reset

2. CE--connected to IO control chip selection

3. D/C--connected to IO control register selection

4. DIN--connected to IO control data transmission

5. CLK--connected to IO control SPI bus

6. BL--connect IO control backlight on or off or PWM control brightness

Package Included:

1 x  1.8 Inch LCD Module
