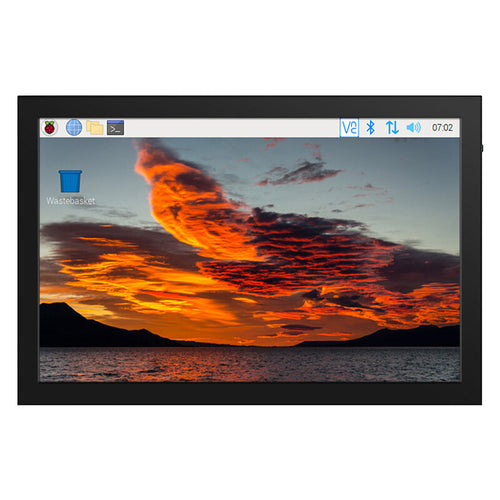

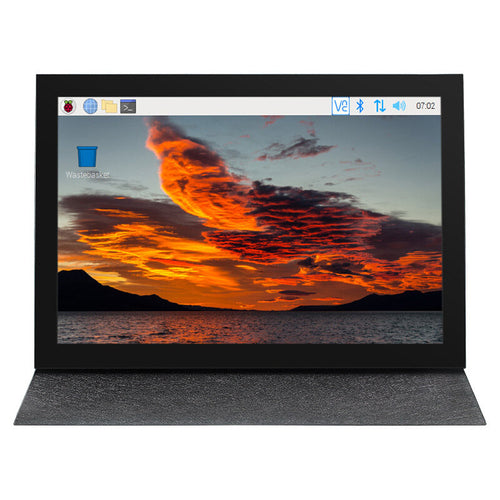

10.1 inch Raspberry Pi HDMI Capacitive Touch Screen IPS Display with Case for Raspberry Pi 3B+/4B

Features:

1. Sturdy Construction: The product comes with a robust iron enclosure, ensuring durability and protection for the internal components.

2. Immersive Display: The 10.1-inch IPS full-view angle screen offers a wide visual angle, true-to-life colors, excellent picture quality, and a high-definition viewing experience. The software settings allow for resolution enhancement up to 1920x1080.

3. Responsive Touch Panel: The tempered glass cover with a 6H hardness rating provides scratch resistance and durability. The high sensitivity capacitive touch screen enables accurate touch input and supports up to 5-point touch.

4. Versatile Connectivity: The HDMI and VGA video input interfaces allow for high-definition video display, while the audio output with stereo dual speakers delivers impressive sound quality. The 3.5mm audio output interface offers additional audio connectivity options.

5. Convenient Controls and Compatibility: The multi-function wheel switch enables easy adjustment of brightness, volume, and menu settings. The product supports connection with a variety of devices, including popular development boards, gaming consoles, TV boxes, and digital cameras. It is compatible with multiple operating systems, providing plug and play touch support.

Specification:

Enclosure: Durable iron casing

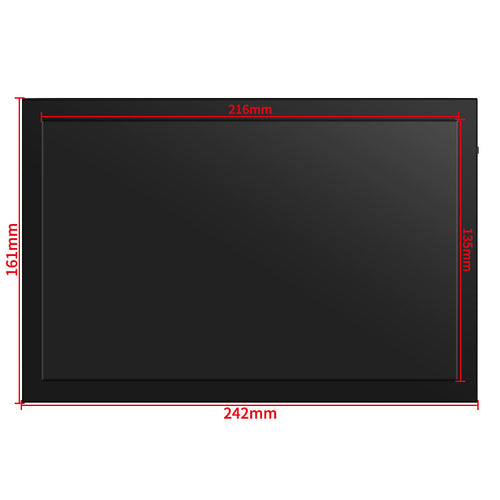

Display: 10.1-inch IPS full-view angle screen

Resolution: 1280x800 (upgradable to 1920x1080 through software settings)

Touch Panel: Tempered glass cover with 6H hardness

Touch Sensitivity: High sensitivity capacitive touch screen

Video Input Interfaces: HDMI and VGA

Audio Output: Stereo dual speakers with a 3.5mm audio output interface

Multi-function Wheel Switch: Supports brightness and volume adjustment, menu settings, HDMI/VGA video signal switching

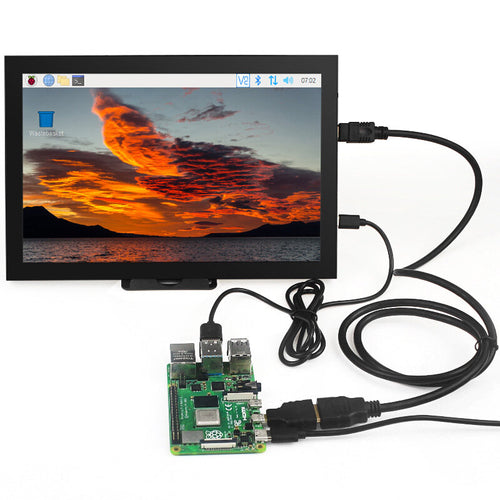

Device Compatibility: Compatible with popular development boards like Raspberry Pi, Banana Pi, BB Black, mainstream gaming consoles like for PS4, Xbox360, Switch, and TV boxes and digital cameras (for display only)

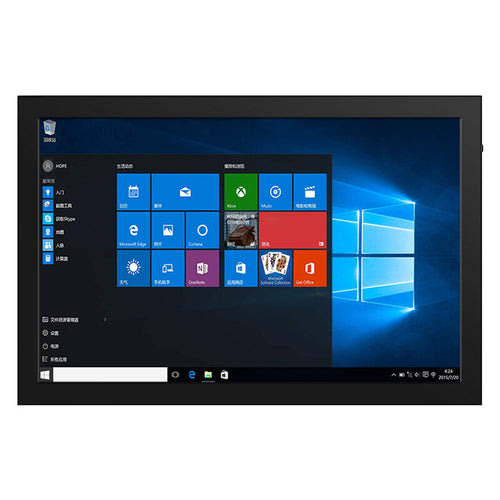

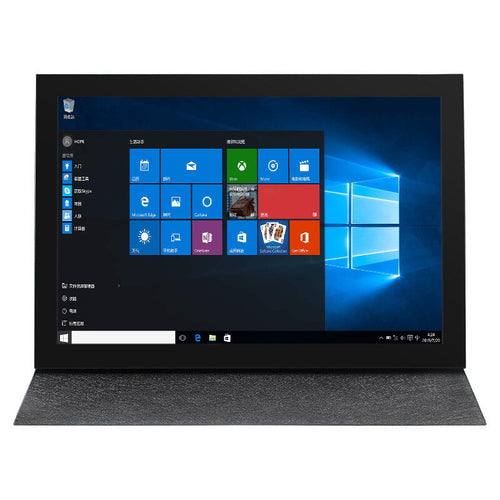

System Compatibility: Supports various operating systems including Raspbian, Kali Linux, Ubuntu, for Kodi, Win10 IoT (plug and play touch support), and Windows 7/8/10/11 (plug and play touch support).

Package Include:

1× Touch Screen

4× Cables

1× Adapter

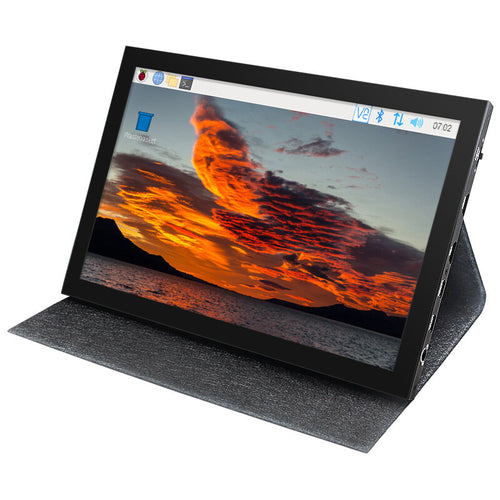

1× Bracket

(the Raspberry Pi is not includes)

Buttons and Interfaces

Illustrate

HDMI

Input HDMI signal, use Mini HDMI cable to connect, used to connect to computer, maximum support resolution 1920x1080

VGA

Input VGA signal, use Mini HDMI male to VGA female adapter cable to connect

POWER

Connect to the power supply, use the Type-C cable to connect, only provide power supply function

TOUCH

Output touch signal, connect with Type-C cable, provide power supply and touch function at the same time

Headphone

3.5mm audio output interface, connect audio equipment such as headphones or speakers

MENU

Dimming:

When no setting interface is displayed, move the rotary switch up to trigger the brightness setting function. After triggering, move the switch up and down to adjust the brightness value. After the adjustment is completed, short press the switch to exit or wait for 10 seconds to exit automatically

Volume Adjustment:

When no setting interface is displayed, move the rotary switch down to trigger the volume setting function. After triggering, move the switch up and down to adjust the volume value. After the adjustment is completed, short press the switch to exit or wait for 10 seconds to exit automatically

Menu Settings:

When no setting interface is displayed, short press the rotary switch to trigger the menu setting function, and enter the menu after triggering, and toggle the switch up and down to select. Short press is to confirm, long press is to return or exit

Signal Switching:

When no setting interface is displayed, press and hold the rotary switch to trigger the HDMI and VGA input signal switching function
