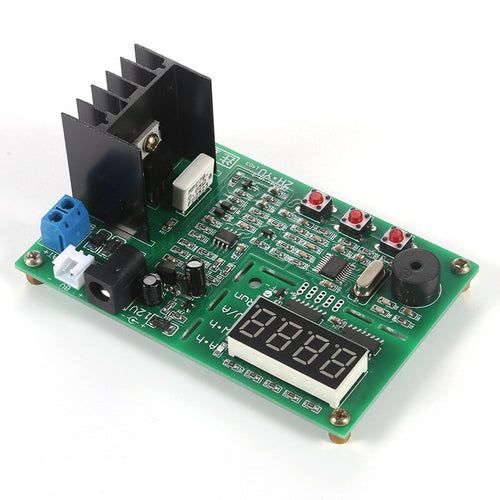

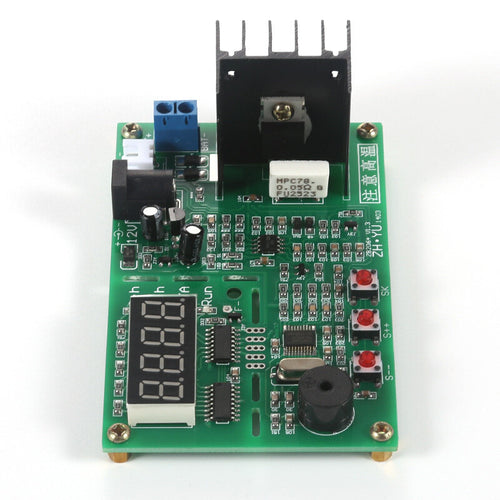

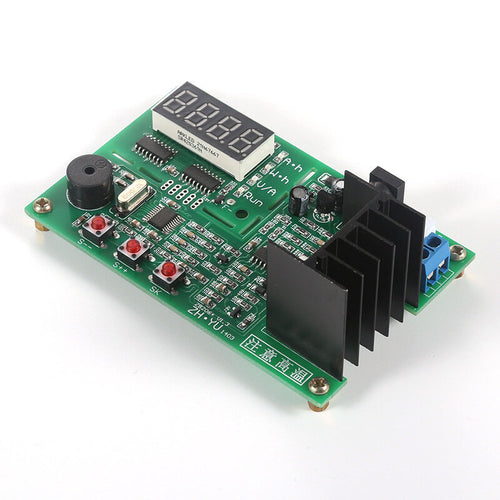

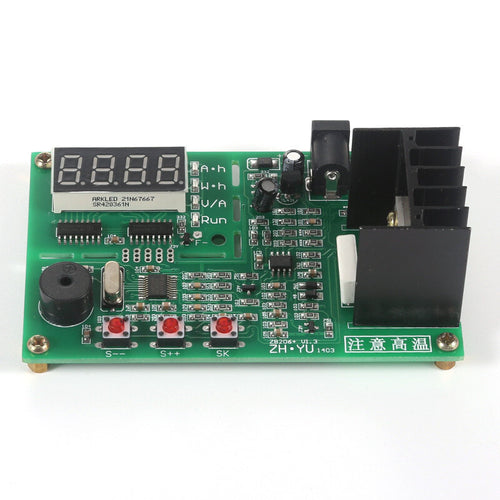

18650 Battery Capacity Tester ZB206+V1.3 with Internal Resistance Test Adjustable Discharge Current Multi-Protection Advanced Calculation Auto-Save Parameters

Features:

1.Advanced Calculation Capabilities: Integrated with advanced computation functions, this device does not require computer assistance to directly obtain battery energy (Wh) and battery discharge platform voltage (V). This optimization simplifies the testing process and ensures efficient measurement.

2.Multiple Protection Mechanisms: The product comes with multiple built-in protection features such as reverse battery connection, over-power, over-voltage, and abnormal power voltage. These safety measures ensure reliable and secure operation under various conditions.

3.Adjustable Discharge Current: The discharge current can be adjusted from 0.1-2.6A with 0.1A increments, ensuring precise and flexible testing. The smooth current high-cost MOS heat dissipation solution, coupled with an independent MOS linear region monitoring circuit, guarantees absolute accuracy throughout the entire process.

4.Advanced Function Setting Menu: An advanced settings menu allows for extensive function expansion and modifications, providing customization options to meet specific testing needs. This feature enhances the versatility and applicability of the device.

5.Auto-Save Parameters: All parameters are automatically saved, featuring an automatic memory function for power outages. This ensures that test data is not lost, even if there is an unexpected power interruption, providing continuous and reliable testing results.

Specifications:

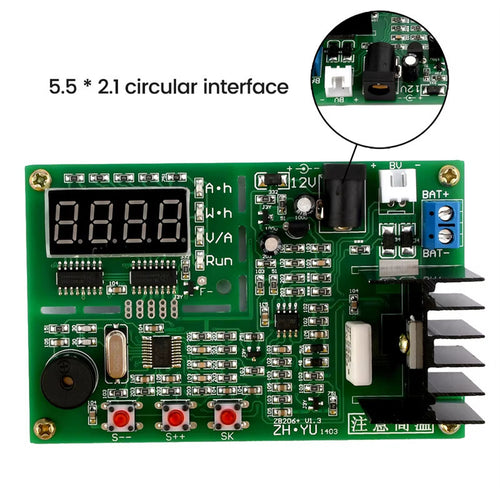

Power Supply Voltage: DC12V (DC11-14V)

Operating Current: not exceeding 35mA

Battery Input Terminal Voltage: not exceeding 8.5V

Discharge Current Error: less than 1% + 2mA

Voltage Measurement Error: less than 1% - 3D

Overall Measurement Result Error: 0.1-0.2A 2.5%, 0.3-0.5A 1.6%, 0.6-1.0A 1.2%, 1.1A-2.6A 1%

Ah Statistical Range: 80.00Ah

Circuit Board Size (excluding copper feet): 97mm x 62mm x 38mm

Positioning Holes: 90mm x 55mm, diameter 3.2mm

Package Included:

1 x 18650 Battery Capacity Tester
