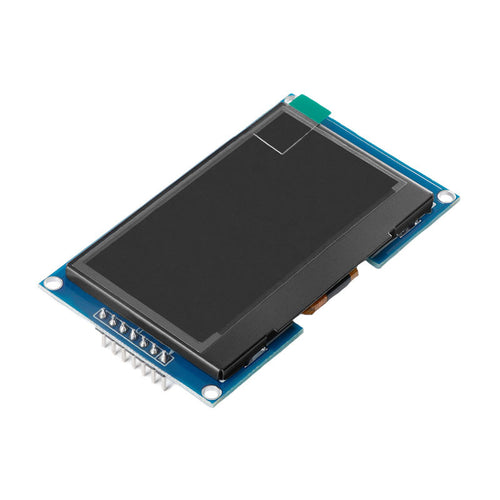

2.42 inch 7PIN OLED Display LCD Screen Module Resolution 128*64 SPI/IIC Interface SSD1309 Driver

Feature:

>>>Manual: Click here to open<<<

Driver chip SSD1309

Support interface IIC/SPI

Resolution 128×64

Display size 2.42 inches

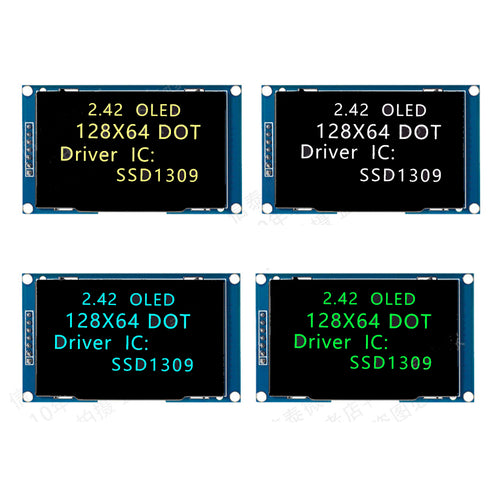

Display color: white/blue/yellow/green (optional)

Module size 71×43.5 (mm)

Glass size 60.5×37.00× (mm)

Display area 55.02×27.49 (mm)

Drive voltage 3.3-5V

Number of pins 7PIN

Viewing angle >160°

Working temperature -40℃~70℃

Storage temperature -40℃~80℃

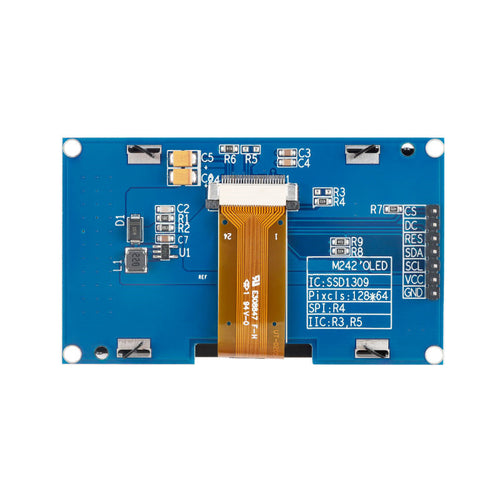

SPI Interface Definition:

1. GND - Power Ground

2. VDD - Power Supply Positive (2.8-5.5V)

3. SCK - Clock Line

4. SDA - Data Line

5. RES - Reset Line

6. DC - Data/Command

7. CS - Chip Select

Package includes:

1 x OLED screen
