25W 200CH Walkie Talkie VHF UHF Dual Band Mini Car Radio Amateur Radio Transceiver

Features:

1. Dual band functionality: This walkie talkie operates on both VHF and UHF frequency ranges, enhancing versatility and utility.

2. Extensive channel range: Offers up to 200 channels, providing a wide array of communication options.

3. High power output: This radio transceiver delivers a high power output of 25W, ensuring strong and clear signal transmission.

4. Supports connection to external speakers: For enhanced audio output, this device can be connected to an external speaker.

5. Cigarettelighter linkage: Features a handy cigarettelighter linkage for convenient in-car charging.

Specifications:

Overall Parameters:

Frequency Range:

VHF: 136~174MHz

UHF: 400~480MHz

Channel Range: 200 Channels

Channel Spacing: 25KHz (wide band) / 20K (medium band) / 12.5 (narrow band)

Phase-locked Steps: 5KHz/6.25KHz/10KHz/12.5KHz/15KHz/25KHz

Operating Voltage: 13.8V DC±15%

Quiescent Method: Carrier/CTCSS/DCS/5Tone/2Tone/DTMF

Frequency Stability: ±2.5ppm

Working Temperature: -20~+60*C

Dimensions: 97*40*102mm (108*40*102mm)

Receiver Part:

Wide Band:

Sensitivity: ≤0.25μV

Adjacent Channel Selectivity: ≤70dB

Intermodulation: ≤65dB

Spurious Response: ≤70dB

Audio Response: +1~-3dB

Signal-to-Noise Ratio: ≥45dB

Audio Distortion: ≤5%

Audio Output Power: ≥2W@10%

Narrow Band:

Sensitivity: ≤0.35μV

Adjacent Channel Selectivity: ≥60dB

Intermodulation: ≥60dB

Spurious Response: ≥70dB

Audio Response: +1~-3dB (0.3~2.55KHz)

Signal-to-Noise Ratio: ≥40dB

Audio Distortion: ≤5%

Audio Output Power: ≥2W@10%

Transmitter Part:

Wide Band:

Output Power: 25W/20W

Modulation Mode: 16KΦF3E

Adjacent Channel Power: ≥70dB

Signal-to-Noise Ratio: ≥40dB

Spurious and Harmonics: ≥60dB

Audio Response: +1~-3dB

Audio Distortion: ≤5%

Narrow Band:

Output Power: 25W/20W

Modulation Mode: 11KΦF3E

Adjacent Channel Power: ≥60dB

Signal-to-Noise Ratio: ≥36dB

Spurious and Harmonics: ≥60dB

Audio Response: +1~-3dB (0.3~2.55KHz)

Audio Distortion: ≤5%

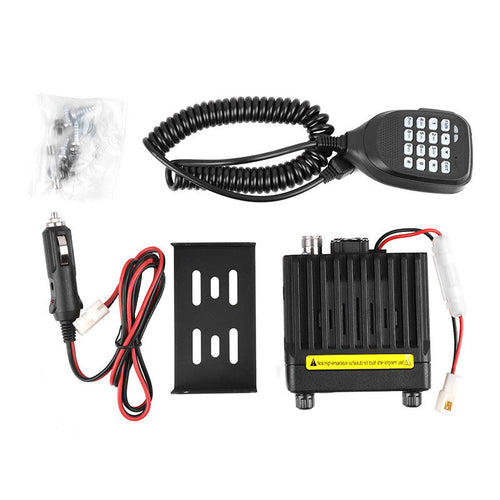

Package Include:

1x Host

1x Walkie Talkie

1x Bracket

1x Screw Pack

1x CigaretteLighter
