35M-4400MHz Spectrum Analyzer 4.3 inch LCD TFT Screen Handheld Simple Spectrum Analyzer Measurement of Interphone Signal

Features:

1. High Performance and Cost-Effective: This spectrum analyzer is designed to provide high-quality spectrum analysis while maintaining affordability. It features the ADF4351 chip as a reference signal source for accurate frequency measurement and high-performance mixers and detectors.

2. Portable Handheld Design: With a compact form factor and a 4.3-inch TFT color LCD screen, this spectrum analyzer is highly portable and suitable for on-the-go use.

3. Wide Frequency Range: It covers a wide frequency range from 35MHz to 4400MHz, making it suitable for analyzing various signals, including interphone signals, 2.4GHz Wi-Fi, and more.

4. Adjustable Resolution Bandwidth: The user can select from multiple RBW options (10kHz, 50kHz, 100kHz, 200kHz, 500kHz) for flexible spectrum analysis based on the specific application.

5. Durable Construction: Housed in a black aluminum alloy casing, this spectrum analyzer is not only rugged but also visually appealing. It comes with a lithium battery for portable usage, and its control interface is user-friendly with a full English display.

Specification:

Product Name: 4.3-Inch TFT Color LCD Spectrum Analyzer

Frequency Range: 35MHz-4400MHz

Impedance: 50 ohms

RBW (Resolution Bandwidth): Adjustable between 10kHz, 50kHz, 100kHz, 200kHz, and 500kHz

Display Screen: 4.3-Inch TFT Color LCD (480 x 800 resolution)

Battery: 1 x Lithium Battery (Approximately 2500mAh)

Battery Life: 4-6 hours

Product Dimensions: 145mm x 70mm x 30mm

Weight: 255g (Including battery)

Material: Aluminum Alloy + Metal

Color: Black

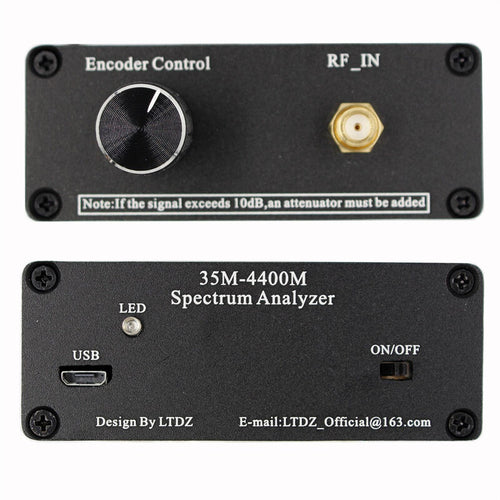

Control: Rotary Encoder with Full English Display Interface

Power Source: USB Power

Package Include:

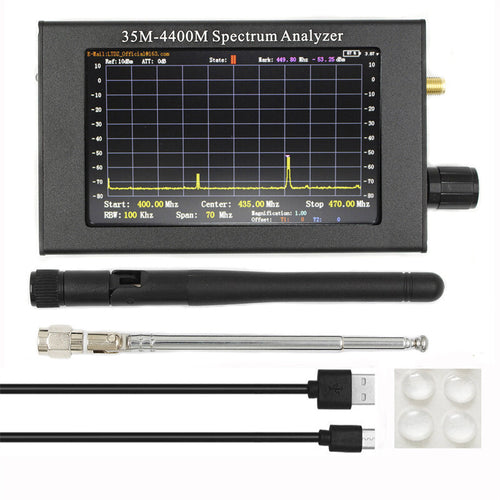

1x Spectrum analyzer

1x Glue stick antenna

1x Telescopic antenna

1x Type-C charging data cable

1x Machine corner pad
