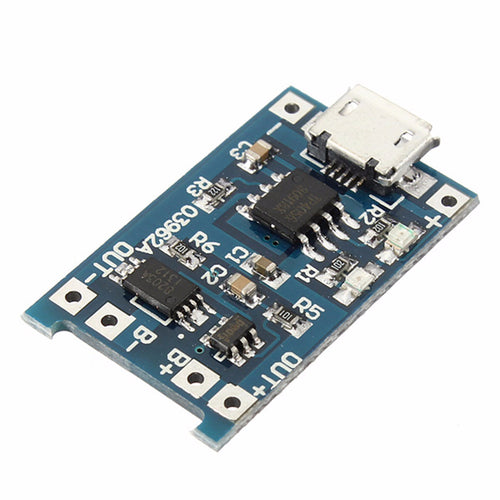

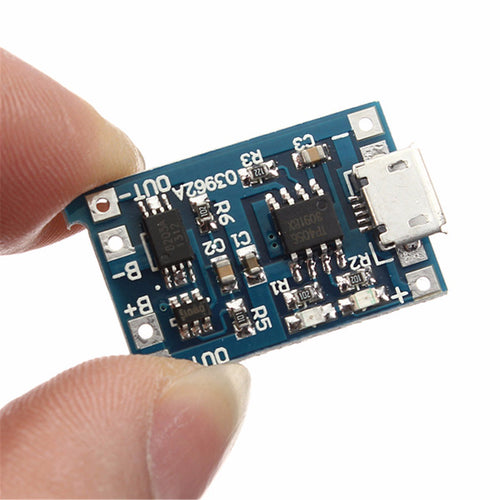

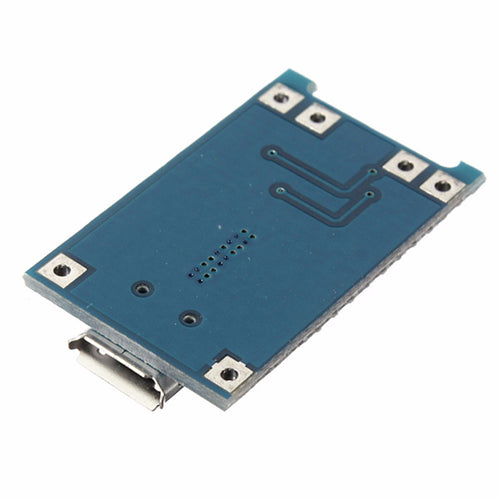

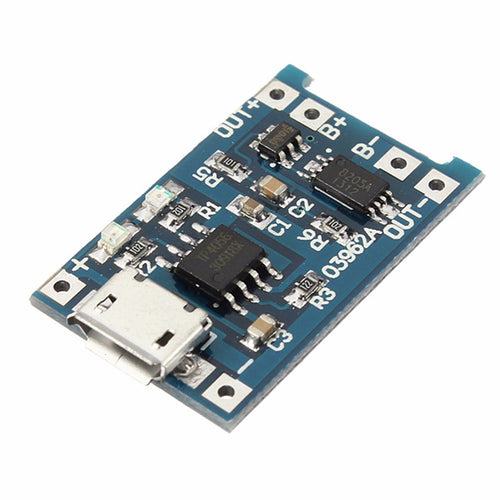

3Pcs USB Lithium Battery Charger Module Board with Charging and Protection Integration Board

Features:

Input port with micro USB female, can directly use mobile charger for input to the lithium battery, and still retain the input voltage wiring solder joints, can be very convenient.

Connect the battery to B + B -, insert mobile phone charger to the USB Female then red light is charging and green is fully charged.

Specification:

Input voltage: 5V

Maximum charging current: 1000 mA

Charge cut-off voltage: 4.2 V + / - 1%

Battery overcharge protection voltage: 2.5 V

Battery over-current protection current: 3 A

Input interface: Micro USB

Dimension: 2.6 x 1.7 cm

Package includes:

3x Charger module board
