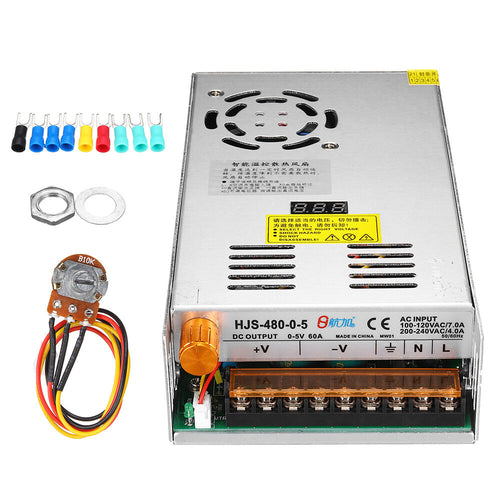

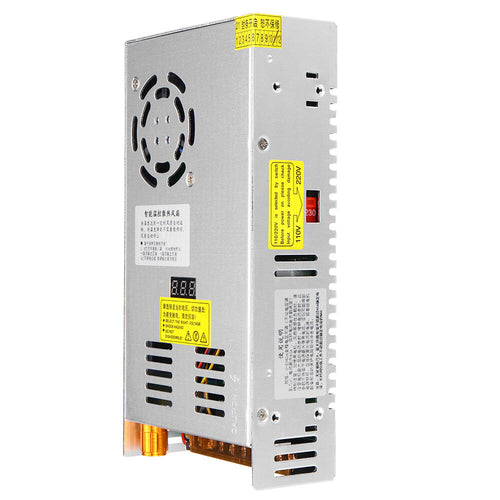

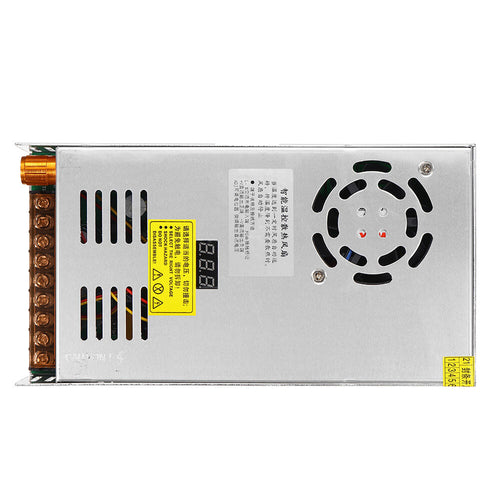

480W Digital Display Switching Power Supply Adjustable Voltage 110/220V AC to 5V 12V 24V 36V 48V 60V 80V 120V 160V 220V 300V

Rated Power

Digital Display

Adjustable Knob

Item ID

480W

Voltage

Voltage

1908262

Voltage

Voltage & Current

1925431

Voltage & Current

Voltage & Current

1925433

1000W

Voltage & Current

Voltage

1927330

Voltage & Current

Voltage & Current

1925287

Specifictation:

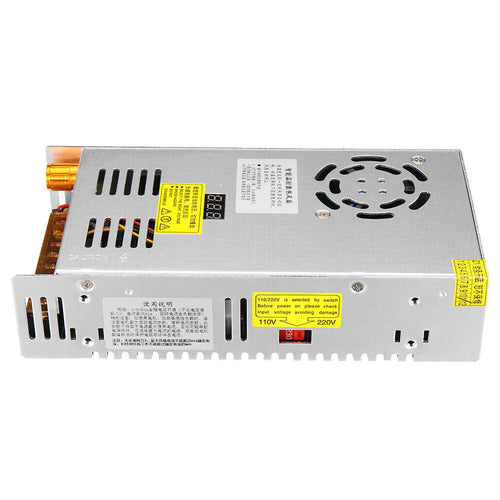

Input voltage: 110/220V AC (selected by switch)

Output power

limiting output voltage range

current range

480W

0-5V

60A

0-12V

40A

0-24V

20A

0-36V

15A

0-48V

10A

0-60V

8A

0-80V

6A

0-120V

4A

0-220V

2A

For max current, if you choose 0-80v, when set the voltage at 24v, the max current still is 6A.

Ripple voltage:not more than 100 mV

Voltage-stabilized equivalent internal resistance: not more than 0.O5Ω

Short circuit, overload protection and automatic recovery

Size:215*115*50mm

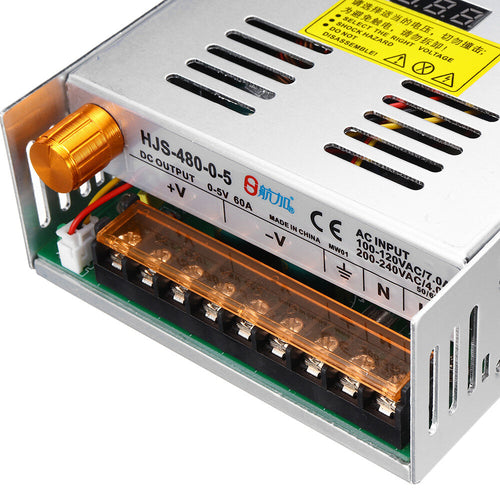

L, N : AC input terminal

FG: ground mark

V+: DC output positive terminal

V-: DC output negative terminal

ADJ adjustable potentiometer: Fine-tuning output DC voltage

● full voltage input

● Miniaturization

●Protection function Short circuit / overload / over voltage

●100% full load aging test

Input Voltage & Frequency Range----------110V/220VAC/47～63Hz

Start surge current ---------------20A@120VAC (cold start)

Output adjustment range --------------- ±100% (rated output voltage)

Overload protection -------------------105%~200% (rated load), self-recovery

Overvoltage protection -------------------115%~135% (rated output voltage)

Short circuit protection ------------------- self-recovery

Output start time ---------------≤2S@120VAC ≤1.0S@230VAC

O

Insulation strength ------------------- Input-Output: AC1500V, 1min； Input - housing: AC1500V, 1min； Output - Case: DC500V, 1min

Working environment ------------------ -10 ° C ~ 50 ° C; 20% ~ 90% RH (no condensation)

Package Included:

1 x 480W Digital Display Switching Power Supply
