50K-500MHz Wideband Active Small Magnetic Loop Antenna LZ1AQ Amplifier HF AM FM VHF UHF SDR Receiver Radio

Features:

1. Wide Frequency Range: This small magnetic loop antenna covers a broad frequency range from 50kHz to 500MHz, making it suitable for various radio receivers, SDRs, and radios.

2. High Gain: With a gain of 17dB at 10MHz, it provides significant signal amplification, enhancing the reception of weak signals and improving overall performance.

3. Low Noise: The antenna boasts low output noise of -125dBm at 10MHz with a bandwidth of 100Hz, ensuring clean and clear signal reception.

4. High Interference Resistance: Featuring an OIP3 of +38dBm at 10MHz, it can handle strong signals without distortion, making it suitable for environments with high signnal interference.

5. Versatile Power Options: It can be powered by a voltage range of 9V to 12V, offering flexibility in power supply options.

Specification:

Product Name: 50K-500MHz Wideband Active Small Magnetic Loop Antenna

Frequency Range: 50kHz to 500MHz

Gain: 17dB at 10MHz

Output Noise: -125dBm at 10MHz, BW=100Hz

P1dB (1dB Compression Point): +15.5dBm@10MHz

OIP3 (Third Order Intercept Point): +38dBm@10MHz

Power Supply Voltage: 9V to 12V

Power Supply Current: 130mA to 150mA

Antenna Interface: SMA(M)

Output Interface: SMA(F)

Coaxial Cable Type: RG402

Coaxial Cable Loss: 0.145dB/m

Antenna Diameter: 60cm

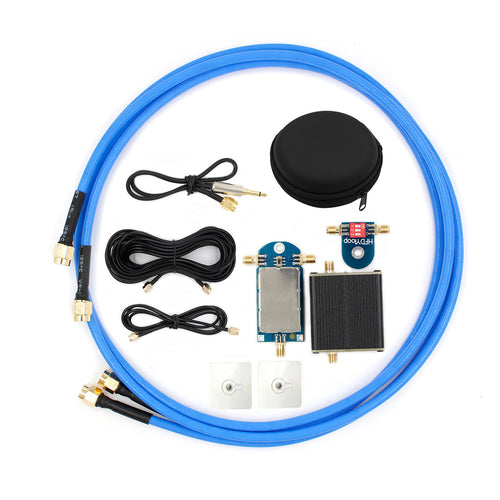

Package Include:

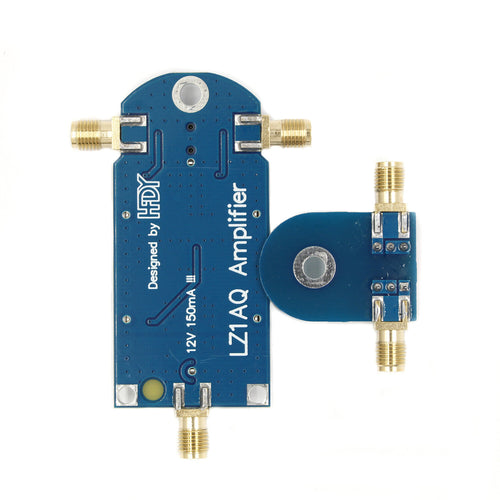

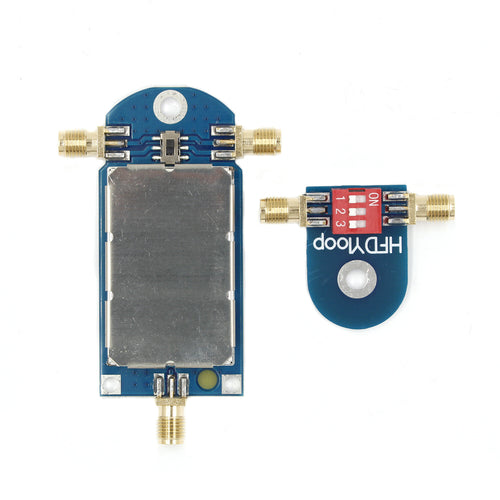

1x Small loop antenna amplifier board

1x Headphone jack adapter cable

1x Top jumper board

2x Small toroid (RG402 coax)

1x 7m feeder

1x 1 meter feeder

2x Sticky hooks

1x EVA storage bag
