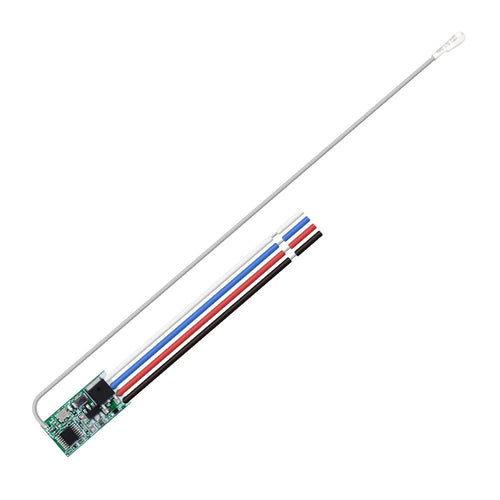

5pcs/10pcs 433.92Mhz Universal Wireless DC 3.6V-24V Remote Control Switch 1CH RF Relay Receiver LED Light Controller DIY Kit

Application environment:

Remote control switch,motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

Specifications Of The Receiver:

Model Number:QA-R-011 (QA-R-012)

Working Voltage: DC 3.6V~24V.

Maximum Load: 2A.

Static Current: 30 mA ~ 40mA.

Working Frequency: 433MHz.

Reception Sensitivity: ≥ -107dBm.

Modulation Mode:ASK (superheterodyne).

Number Of Stored Remote Controls: ≤ 10.

Working Mode: Momentary, Toggle, Latching Mode.

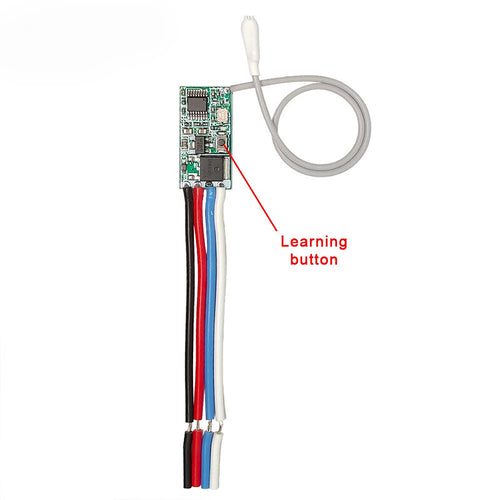

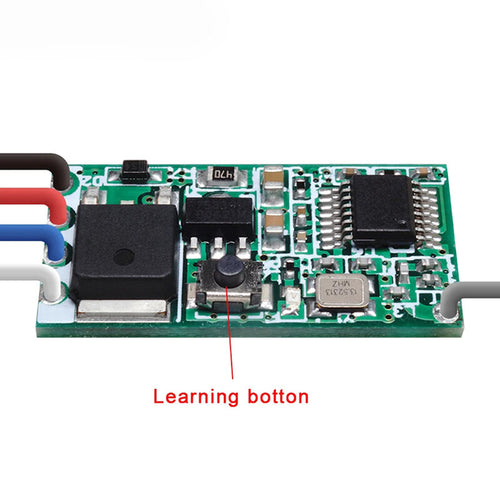

Learning Style: Learning Button.

Working Temperature: -20 degrees -80 degrees.

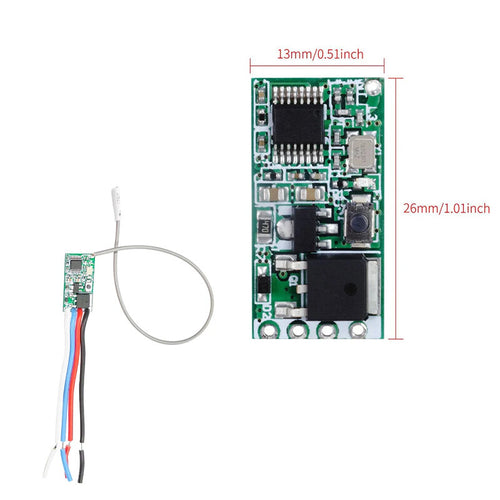

Appearance Size: 26mmx 13mm x 1mm (length × width × high).

Package Include:

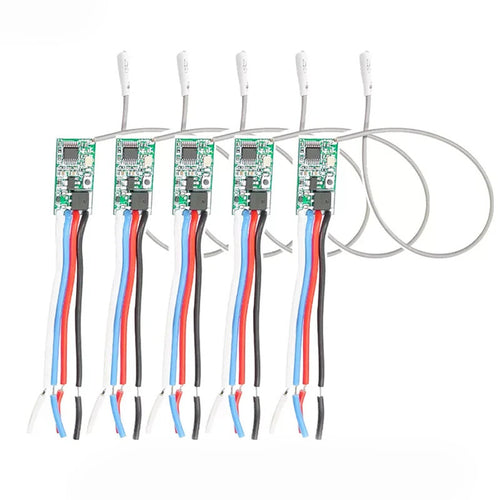

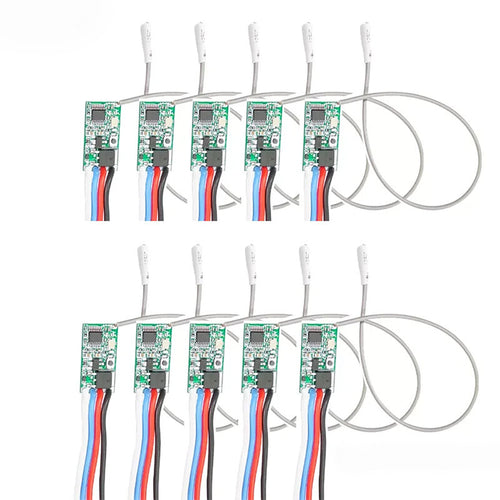

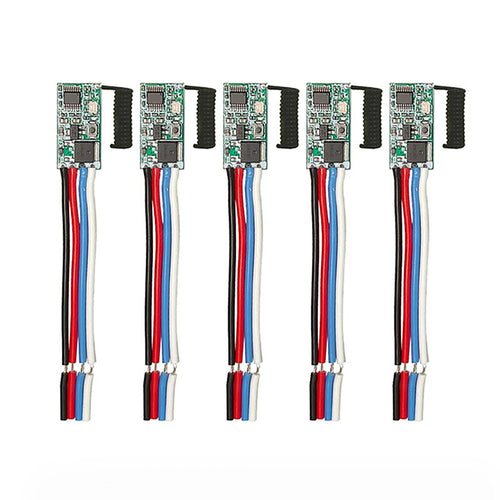

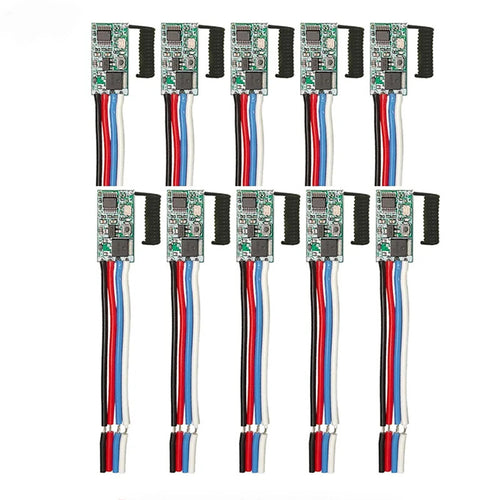

5pcs/10pcs× Receiver Module(Color Optional)

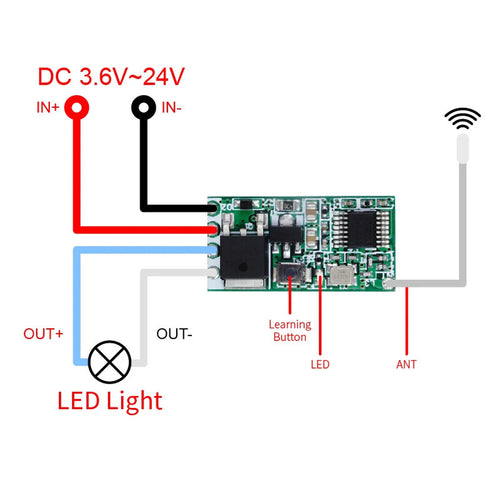

Output working mode

A. inching: (press and hold the remote control to turn it on, and let go to turn it off)

B. self-locking: (press the remote control on, press the remote control off again)

C. Interlockking: (Press the first key of the remote controller to open and press the second key of the remote controller to close)

Method of application

1) Set to inching: press the learn code alignment key once (about 2 seconds). At this time, the red light lights up for 8 seconds, and the code can be aligned with the remote controller.

2) Set to self-lock: press the learn code alignment key twice (about 2 seconds). At this time, the red light will light up for 8 seconds, and the code remote controller can be aligned.

3) Set to interlock: press the learn code alignment key for 3 times (about 2 seconds). At this time, the red light will light up for 8 seconds to align the code remote controller.

4) code clearing function: press the learning key to check the code for 8 times, and the LED indicator flashes for 6 times, and the code clearing is completed.

(Note: When switching the working mode, please turn off the power, and then plug in the power supply to clear and check the code.)
