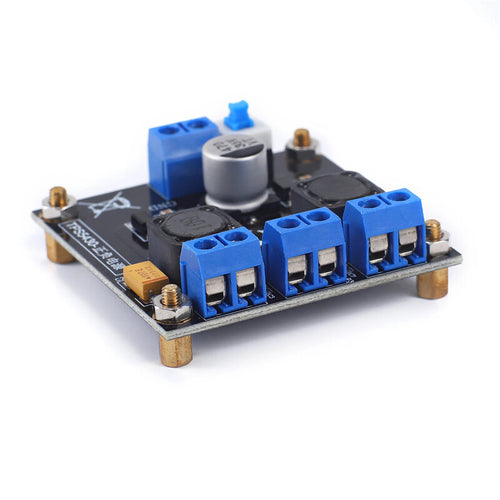

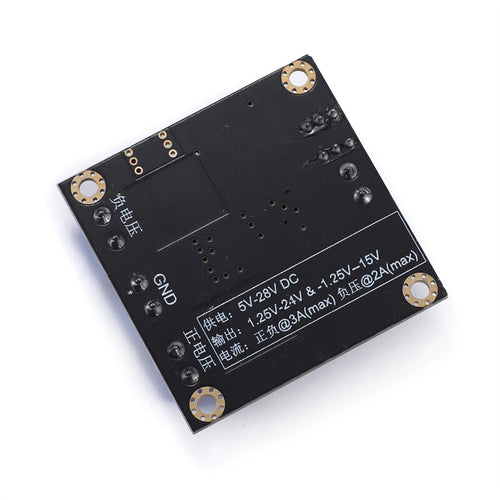

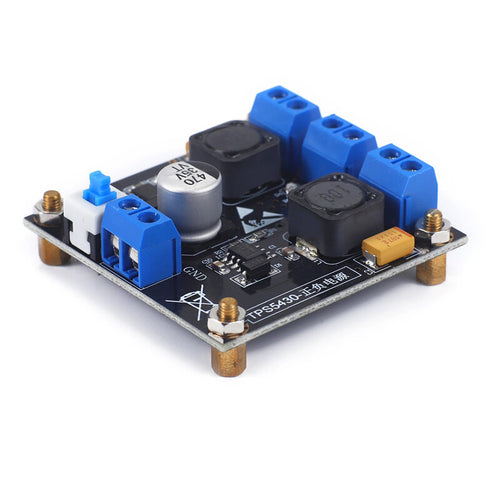

5V/12V/15V TPS5430 Switching Voltage Regulator Positive Negative Dual Power Supply Switch Module

Features:

1. High Output Current: Capable of providing up to 3A with peak current provided up to 4A for high demand applications.

2. High Efficiency Conversion: Boasts a theoretical conversion rate reaching up to 95% making it an energy-efficient choice.

3. Over Current Protection and Thermal Shutdown Function: Ensures device safety as it automatically turns off once an overcurrent condition is detected or the device exceeds a certain temperature.

4. Versatile Voltage Input and Output: Supports a wide voltage input range from 5.5-28V and can provide dual positive and negative power outputs.

5. Low Quiescent Current: Draws only 17uA current when in the off-state, preserving energy.

Precautions for using:

(1) The module is a step-down module, and the input voltage needs to be greater than the output IV to stabilize the output.

(2) Module heating is mainly determined by the input and output voltage difference and the load current. Please select and use the power module reasonably. Generally, a certain margin should be reserved.

3) The detailed description is mainly for positive and negative 5V output models, especially when using high power 10W (output 5V2A, output 15V/0.67A) or more, please add heat dissipation silicon grease heat sink to the chip Perform heat dissipation. With better heat dissipation conditions, it is best to control the long-term work within 30W (output 15V, 2A) to avoid damaging the chip.

Specification:

Module: TPS5430 Switching Voltage Regulator

Input Voltage Range: 5.5V - 28V

Output Current: 3A (peak 4A)

Efficiency: Up to 95%

Output Voltage Range: 5V/12V/15V (positive and negative output)

Parameter name

Parameter value

Remark

Module type

Switching power supply

Input voltage

5.5V-28V

It is recommended to use it below 28V, and when it is ±15V output, it is recommended to use it below 21V input.

The output voltage

Many kinds

Three specifications provideoptions: ±5V, ±12V ±15V, the input voltage needs to be greater than the output voltage to normally output Vout+=1.221 (R1/R2+1) Vout-=-1.221 (R3/R4-1)

Output current

3A(MAX)

It is not recommended to use for a long time with high current. Negative pressure 2.5A (MAX)

Input and output pressure difference

Around 1V

Output Power

15W (5V/3A)

for reference only

Static power

16mA

for reference only

Operating frequency

500KHz

Output ripple

24mV

-5V

50mV

-5V

Module enable

without

Protection

without

No external reverse connection protection, no external fuse protection

Features

Many kinds

Low noise, low ripple: with output power indicator

Application

Many kinds

Operational amplifier power supply, data converter power supply, industrial automation control. LED lighting. Industrial Control Equipment, communication equipment, electric equipment. Instrumentation

Weight

25g

Size

50X50X12

Length x width x height (mm)

Heating

The greater the load, the greater the heat

Pay attention to heat dissipation

Operating temperature

0-70℃

Civilian Grade

Module interface

5.08-2PM

Package Include:

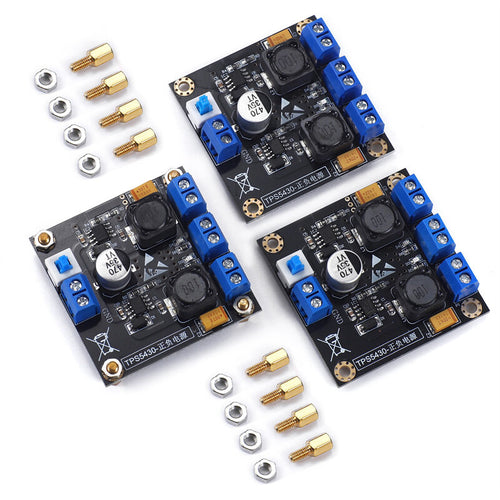

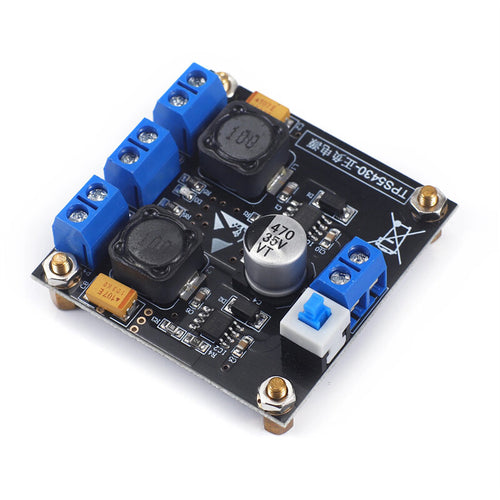

1 x TPS5430 Dual Power Supply Switch Module

The following two are the measured ripple diagrams of the TPS5430 module of our store. Due to the influence of the tolerances of the components, there may be slight differences.

What needs to know is that the greater the power supply, the greater the ripple; the greater the load, the greater the ripple.
