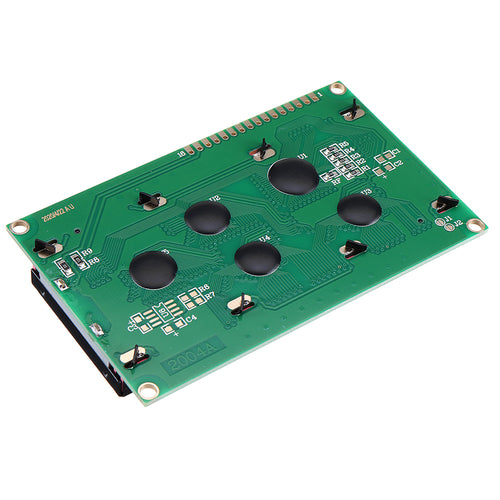

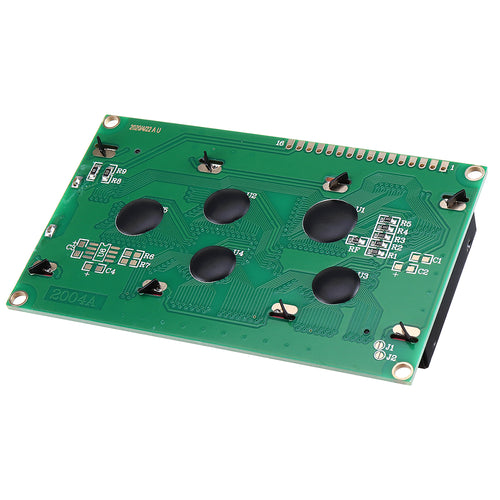

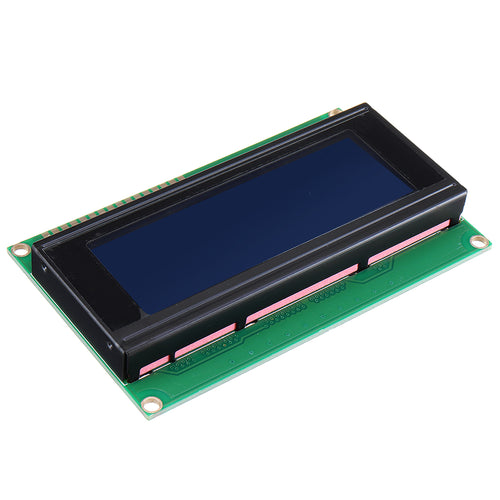

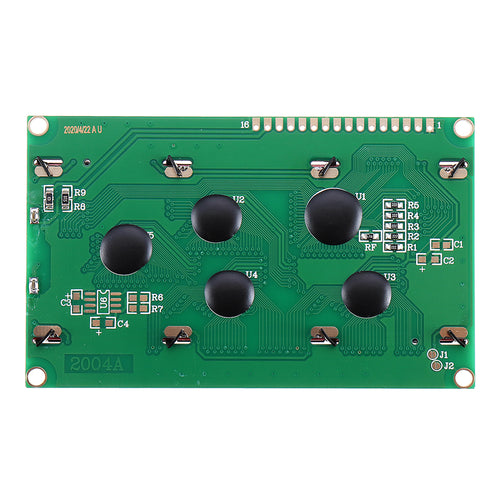

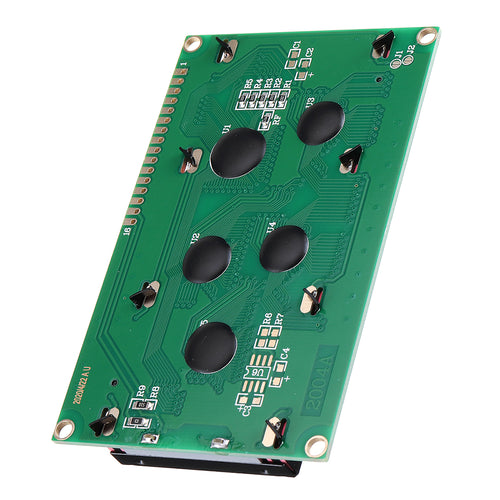

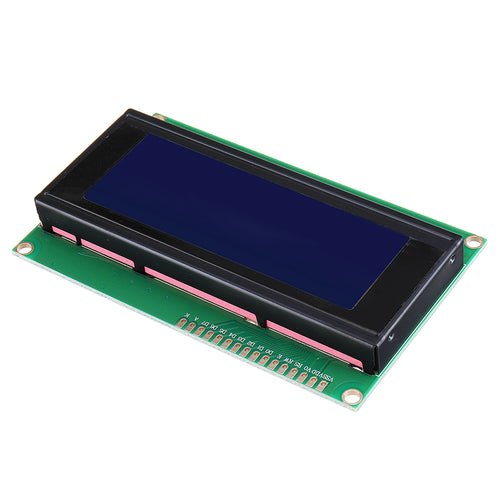

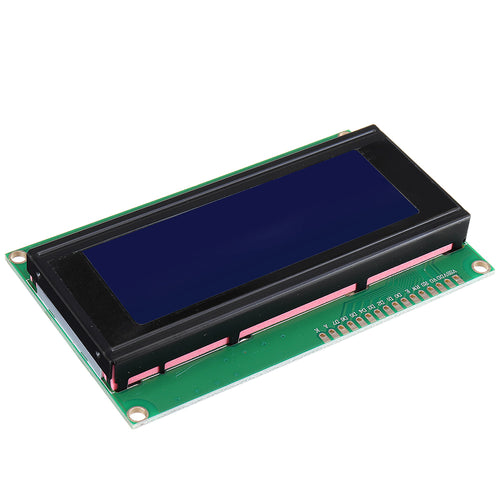

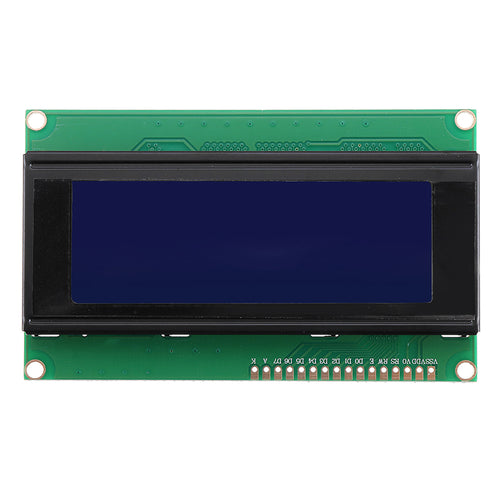

5V 2004 20X4 204 2004A LCD Display Module Blue Screen

Description:

The 2004A character LCD module is designed to display letters, numbers, symbols, dot matrix. It can display 4 lines of 20 characters. Support 4-bit and 8-bit data transfer mode. Offers 5x7 matrix + cursor display mode. Providing display data buffer DDRAM, character generator CGROM and CGRAM. CGRAM can be used to store up to eight 5x8 dot matrix character font data graphic own definition. Provides a rich instruction set: clear display, cursor back to origin, display on / off, cursor on / off, display character blink, cursor shift, display shift and so on.

Specification:

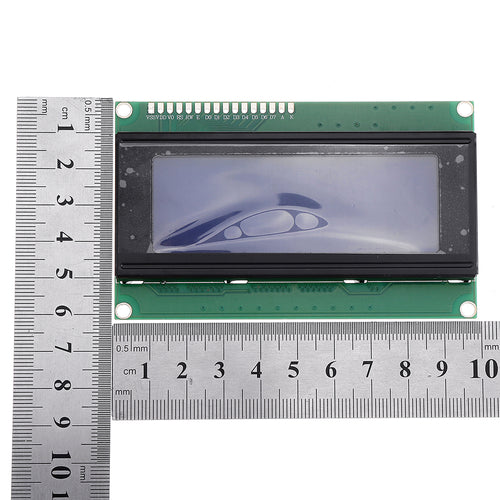

Module size(W x H x T): 98.0 x 60.0 x 14.0mm

Viewing area(W x H): 76.0 x 26.0mm

Character size(W x H): 2.94 x 4.74mm

Dot size:(W x H): 0.54 x 0.54mm

LCD type & color: STN(Blue), FSTN

View angle: 6 o'clock

Display type: positive / negative type

Control IC & package: KS0073 or EQV, COB

Operating temperature: -20°C - +70°C

Storage temperature: -30°C - 80°C

Package included:

1 x 5V 2004A LCD display module
